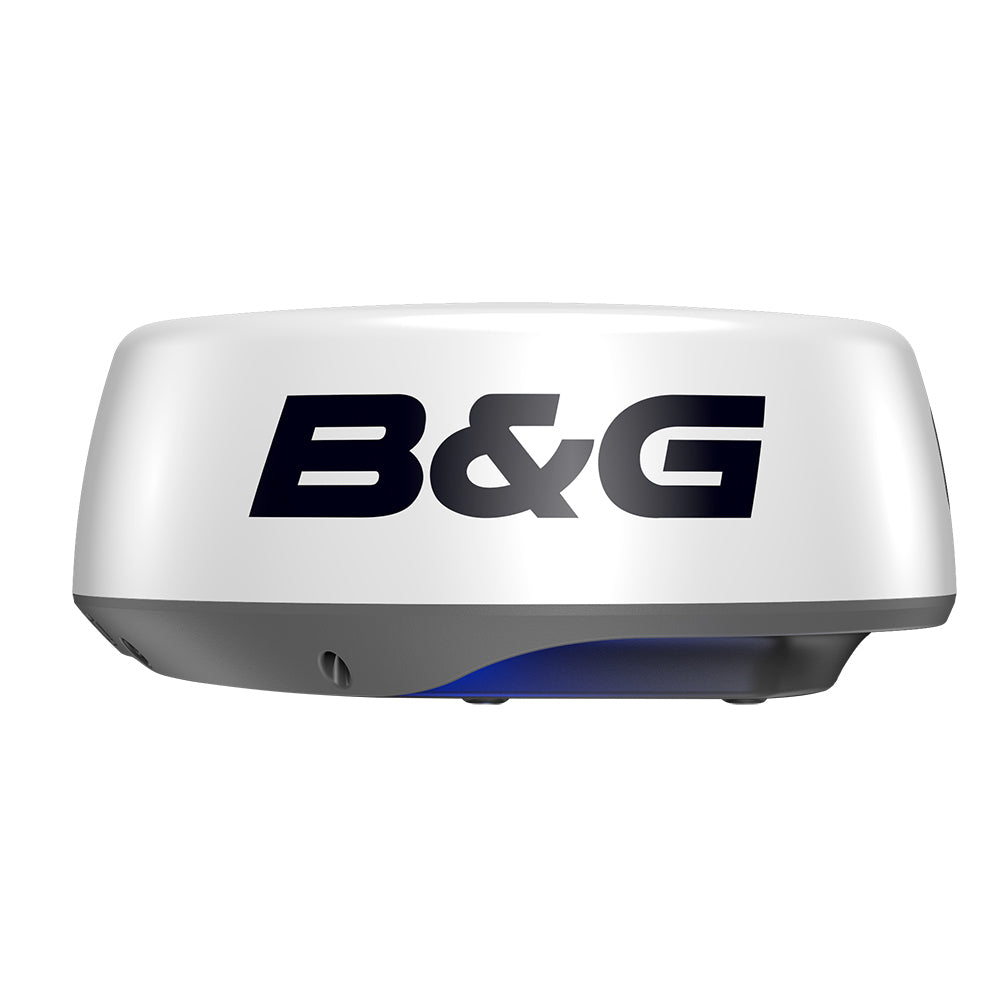

B&G USA 000-14539-001 Radar Halo20+ 20' 36Nm Doppler 20M

The B&G USA 000-14539-001 Radar Halo20+ 20' 36Nm Doppler is a compact and powerful radar system designed for sailboats. With its advanced features and high-quality detection capabilities, it provides sailors with a clear and real-time view of their surroundings, ensuring collision avoidance and improved situational awareness.

Features:

• Compact 20-inch dome with a 36 nm range
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation for far and near coverage
• Ultra-fast 60 RPM operation at ranges up to 1.5 nm
• VelocityTrackT Doppler technology for collision avoidance
• Easy operation with harbour, offshore, weather, and custom modes
• MARPA target tracking for up to 10 targets (20 in dual range)
• Low power consumption

The B&G Halo20+ Radar delivers exceptional performance with its compact size. It provides a 36 nautical mile range from its 20-inch dome antenna, allowing sailors to detect hazards over long distances. The advanced pulse compression technology and beam sharpening feature ensure enhanced separation between small or distant targets, eliminating compromises in detection at any selected range.

With its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles, the Halo20+ Radar offers sailors an almost real-time view at close range, making it ideal for collision avoidance. The VelocityTrackT Doppler technology provides instant feedback on target movement, helping sailors identify potential hazards quickly. The radar's colour coding system highlights targets based on their movement, further improving situational awareness.

The Halo20+ Radar is designed for quick and easy operation. It automatically checks every target in range, eliminating the need for manual selection and allowing for an unlimited number of targets on the screen simultaneously. Its low-power standby mode ensures instant wake-up and high-speed radar coverage when needed, providing sailors with a clear and current picture of their surroundings.

The radar offers various modes, including harbour, offshore, weather, bird, and custom modes, to optimize signal processing and ensure vivid target visibility even in challenging environmental conditions.

Specifications:

• Waterproof rating: IPX6
• Supply Voltage: 10.5 - 31.2 VDC (12/24V systems)
• Max Wind Speed: 100 knots (51 m/s)
• Power Consumption typical: 20W
• Operating Temperature Range: -25&degC to +55&degC (-13&degF to +130&degF)
• Power Consumption max: 29W
• Max Range, scale: 36 NM
• Beam width: 4.9&deg H nominal (-3dB) 2.5&deg with target separation on high x 25&deg V
• Weight: 5.9 kg (13 lbs) without cable
• Min Range, scale: 50 m / 200 ft / 50 yd
• Dimensions W x H x D: 510mm dia x 223 mm H. (20" dia x 8.8" H)
• Recommended Fuse Rating: 5A
• Humidity: 95% RH

Learn More:

For more information about radar technology, please visit the Radar Wikipedia page.

To learn about Doppler technology, visit the Doppler Effect Wikipedia page.

Product: B&G 000-14539-001 Halo20+ Radar 20' 36Nm Doppler 20M

Brand: B&G

Model: 000-14539-001

Shipping Weight: 25.75 lb

Shipping Height: 10.20 in

Shipping Width: 20.47 in

Shipping Length: 20.47 in
