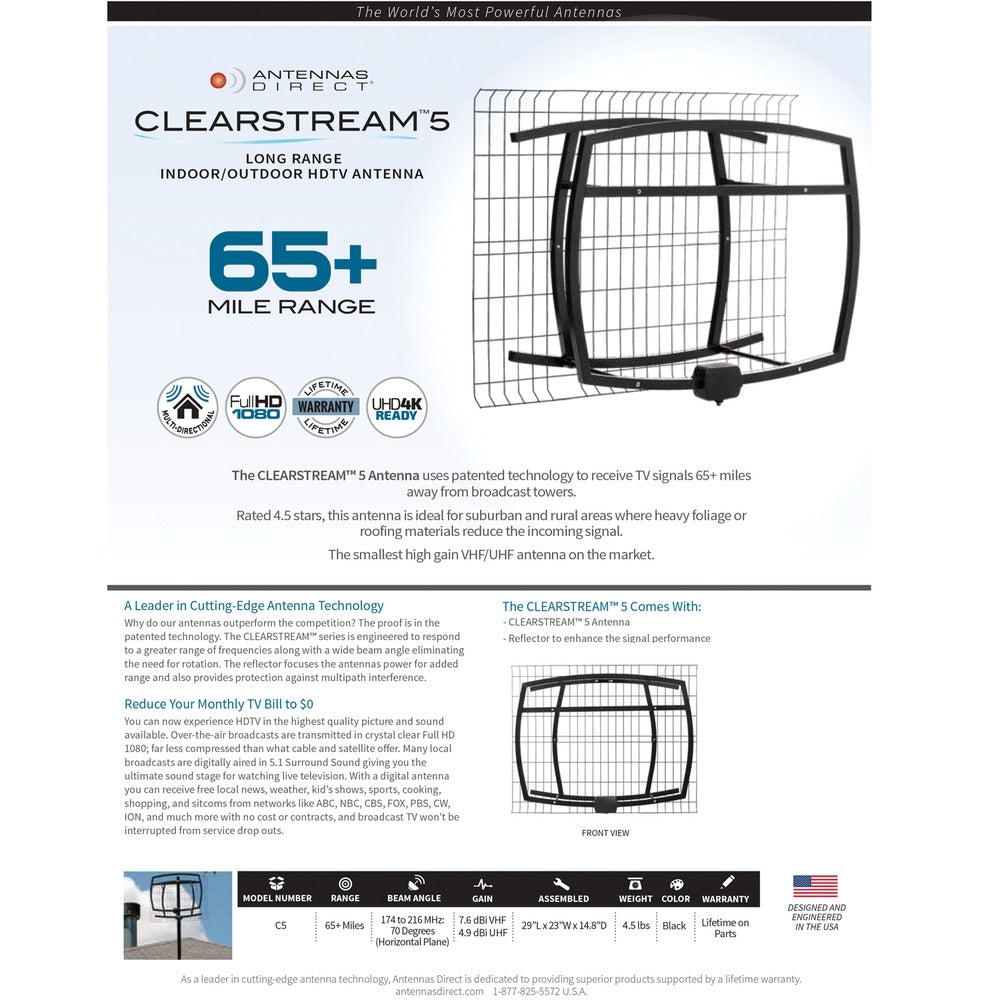

Clearstream 5 DTV Antenna - Antennas Direct C5

The Clearstream 5 DTV Antenna by Antennas Direct is a high-quality television antenna designed specifically for receiving high VHF band signals (Ch7-13 ; 174 -216 MHz). It incorporates the same compact engineering that distinguishes the ClearStream family, offering excellent gain and impedance matching across the entire post-2009 VHF DTV spectrum.

With its efficient and compact design, the ClearStream 5 outperforms existing combination antennas for receiving VHF DTV signals. It provides good directivity with a peak gain of 7.6 dBi, ensuring superior signal reception. This leap forward in efficient design allows up to 90% of the available broadcast signal to actually reach the incoming antenna cable, minimizing signal loss due to impedance mismatches.

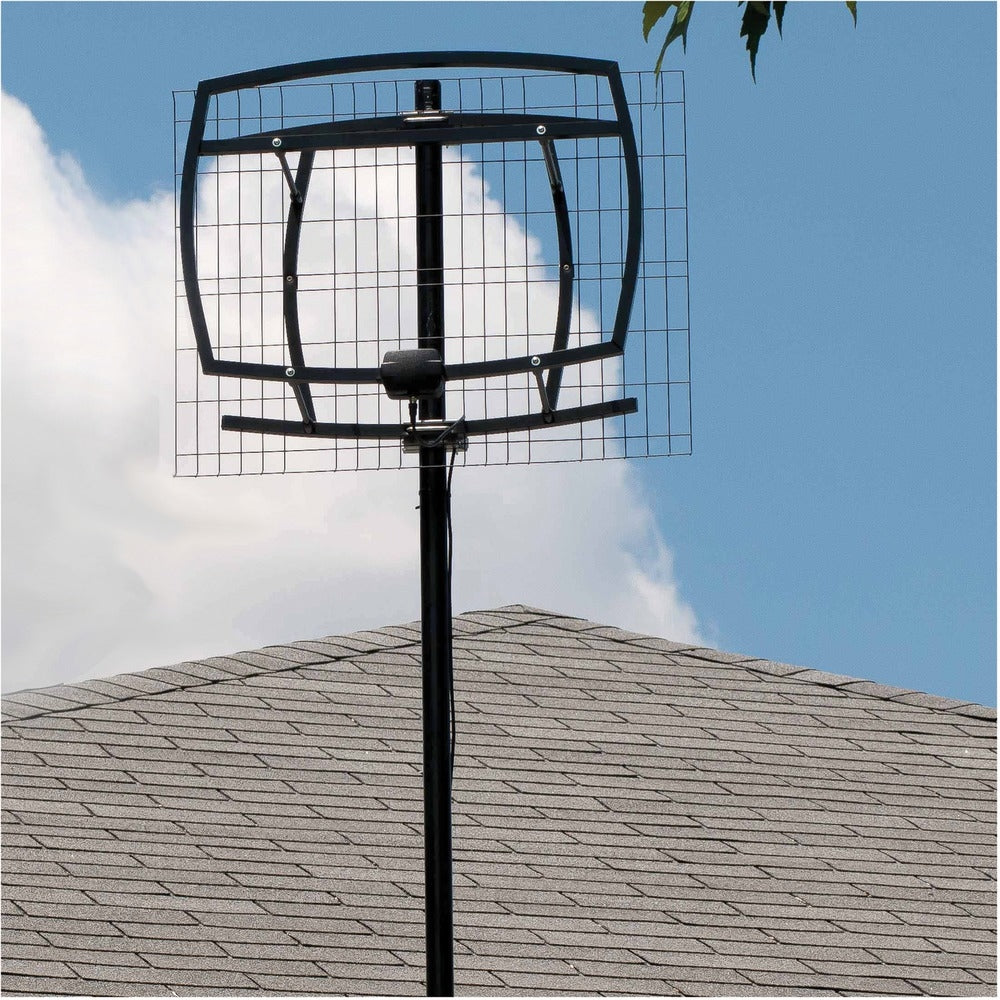

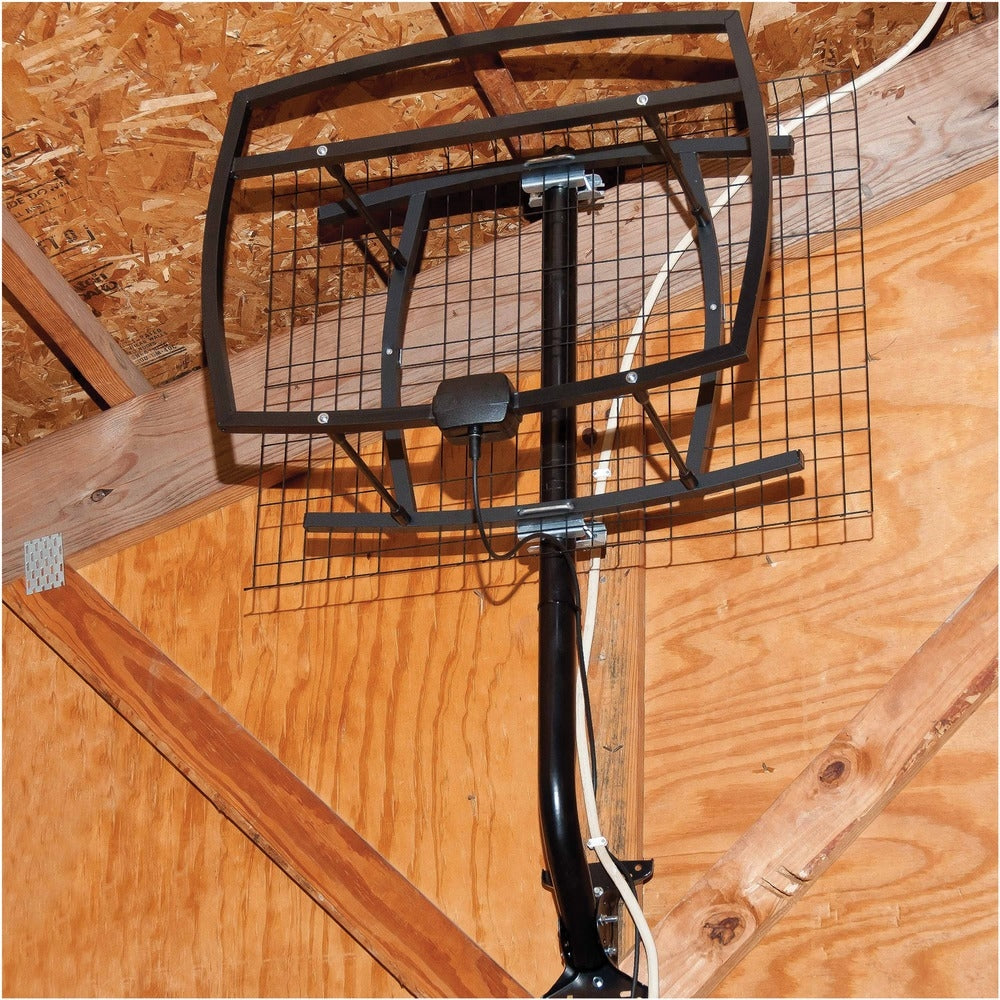

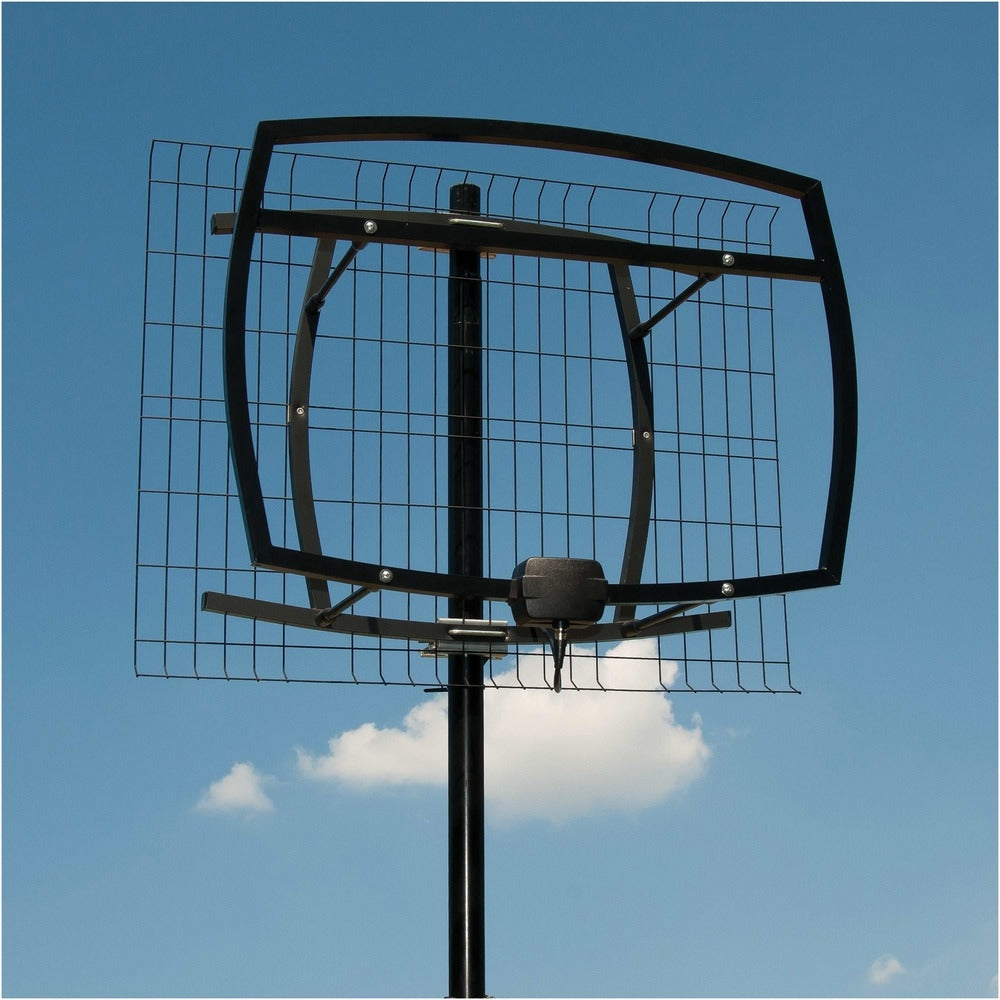

Constructed with powder-coated aluminum for corrosion resistance, the ClearStream 5 is engineered for extra strength and durability. It is easy to assemble, making installation hassle-free. The antenna also includes a low-loss UHF/VHF signal combiner, making it a perfect complement to existing UHF antennas.

Product Features:

• Supported radio bands: UHF, VHF
• Frequency range: 470 - 698MHz, 174 - 216MHz
• Maximum range: 104600
• Channels quantity: 51
• Antenna gain level (max): 7.6
• Connector(s): 1 x F
• Impedance: 75
• Internal: N
• Product color: Black
• Dimensions (WxDxH): 584.2 x 736.6 x 292.1

Specifications:

• High Gain Digital VHF Antenna
• Reception range: 65 Miles+
• VHF Range: 174 - 216MHz (Channels 7-13)
• UHF Range: 470 - 698MHz (Channels 14-51)
• Max gain: 7.6 dBi VHF; 4.9 dBi UHF
• Impedance: 75 Ohm output F connection
• Size: 29"L x 23"W x 11.5"D
• 90% efficient at 200 MHz
• 100% compatible with all ATSC tuners
• Smallest high-gain VHF/UHF antenna on the market
• Engineered for core VHF DTV frequencies (Ch 7 - 13)
• Single point of impingement resulting in unmatched pulse fidelity and lower waveform distortion
• Easy to assemble
• No extra transformers needed

Learn More:

• VHF on Wikipedia
• UHF on Wikipedia
• ATSC Tuners on Wikipedia

Product: Clearstream 5 DTV Antenna - Antennas Direct C5

Brand: Antennas Direct

Model: C5

Shipping Weight: 13.82 lb

Shipping Height: 2.50 in

Shipping Width: 23.20 in

Shipping Length: 29.50 in
