CyberPower PR1000LCD Smart App LCD AVR Sinewave UPS 1000VA Tower 8Out 5-15R 15A

Smart App UPS | Network and Servers

The CyberPower Smart App Siave PR1000LCD mini-tower uninterruptible power supply (UPS) with LCD Control Panel and pure sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. Patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.

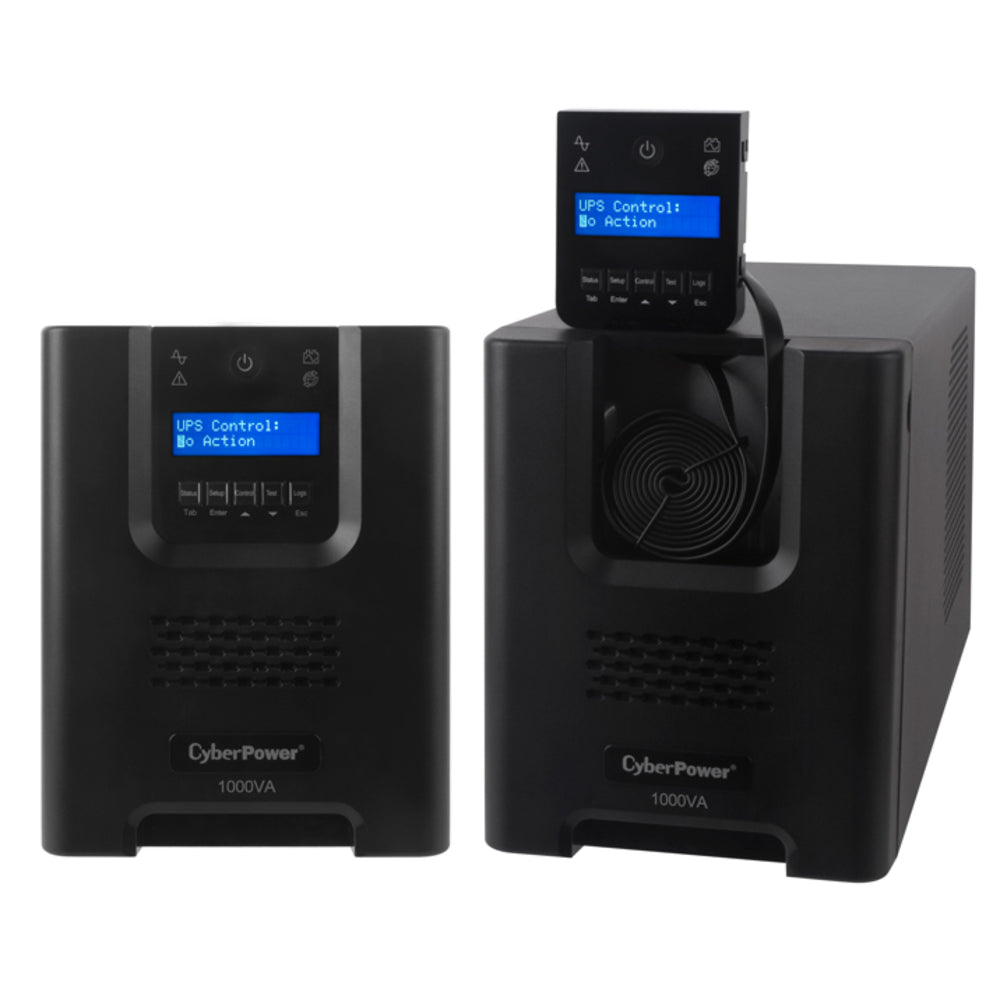

The LCD control panel provides 41 different settings to check status and customize the operating settings for the PR1000LCD, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (11) different parameters, (23) settings for setup and control of the UPS, (3) battery test & calibration options, and (4) selections in the Log menu. With its attached cable the LCD control panel can be removed from the UPS and relocated up to 4.5 FT away from the UPS for ease of viewing when installed in hard to reach locations.

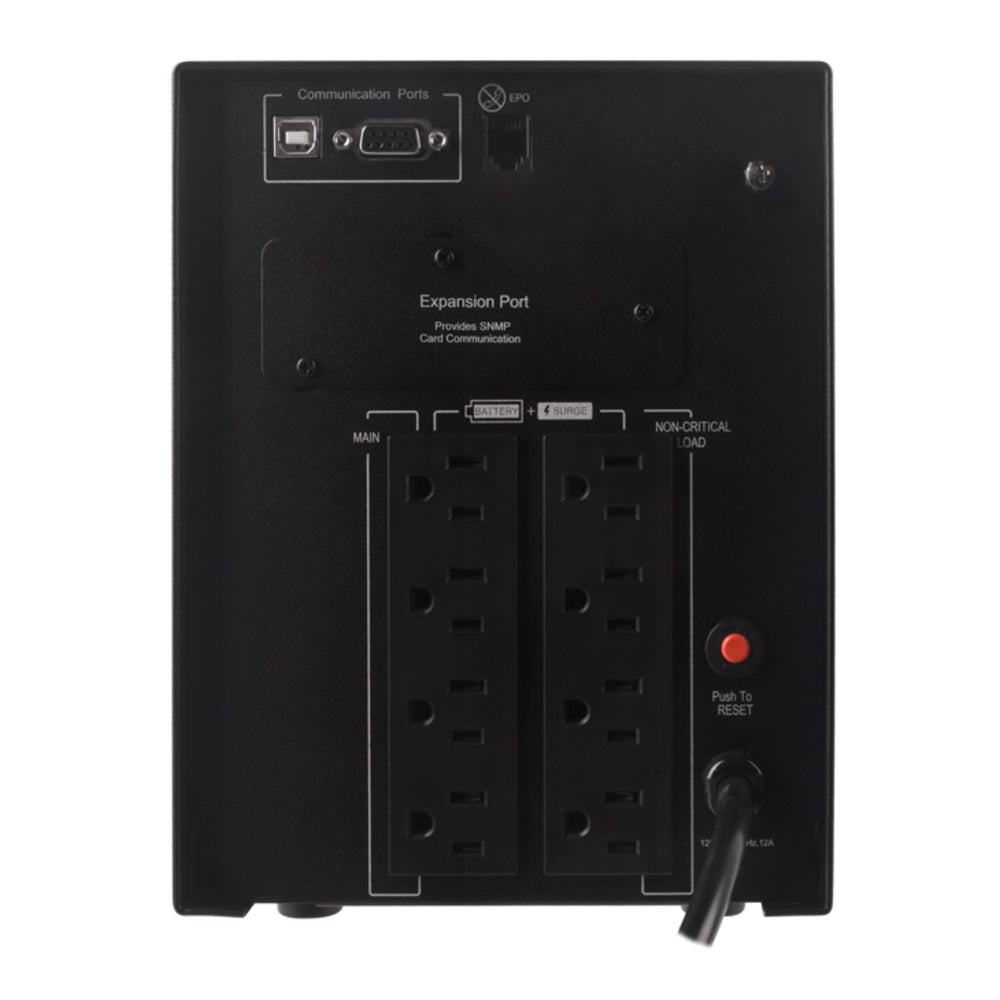

The PR1000LCD unit has a capacity of 1000VA/700Watts, six (6) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/12.0Ah batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.

This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR1000LCD through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a USD375,000 Connected Equipment Guarantee.

1000VA, 700W, 6 x NEMA 5-15R Out, 1 x USB, 1 x DB-9, 1 x EPO, EMI/RFI Filters, Mini-Tower

Features:

• Power plug: NEMA 5-15P
• Cable length: 1.8
• Serial ports quantity: 1
• USB 2.0 ports quantity: 1
• EMI/RFI noise filtering: Y
• Power protection features: Overload
• Battery technology: Sealed Lead Acid (VRLA)
• Battery type: 12V/12AH
• Number of battery cells: 2
• Battery recharge time: 8
• Typical backup time at half load: 24.5
• Typical backup time at full load: 7
• Hot-swap battery: Y
• Product color: Black
• Weight: 19958
• Width: 170.18
• Depth: 431.8
• Height: 220.98
• Bundled software: PowerPanel
• Operating temperature (T-T): 0 - 40
• Operating relative humidity (H-H): 0 - 90
• RoHS compliance: Y
• Certification: UL1778, cUL 107.3, FCC DOC Class A
• LED indicators: Battery replacement
• Audible alarm(s): Y
• Management platform: SNMP/HTTP
• Display: LCD
• Nominal output voltage: 120
• Compatible operating systems: Windows 2000, 2003, XP 32/64, Vista 32/64, 7, Server 2008.
• Overload protection: Y
• Form factor: Mini Tower
• Output power capacity: 1000
• Output power: 700
• Input operation voltage (min): 75
• Input operation voltage (max): 154
• Input frequency: 47/63
• Surge energy rating: 1030
• Emergenc

Product: CyberPower PR1000LCD Smart App LCD AVR Sinewave UPS 1000VA Tower 8Out 5-15R 15A

Brand: Cyberpower

Model: PR1000LCD

Shipping Weight: 47.00 lb

Shipping Height: 12.50 in

Shipping Width: 13.75 in

Shipping Length: 22.60 in
