Faria Beede 33103 Dress White 4 Tachometer for Gas Inboard Engines - 6,000 RPM

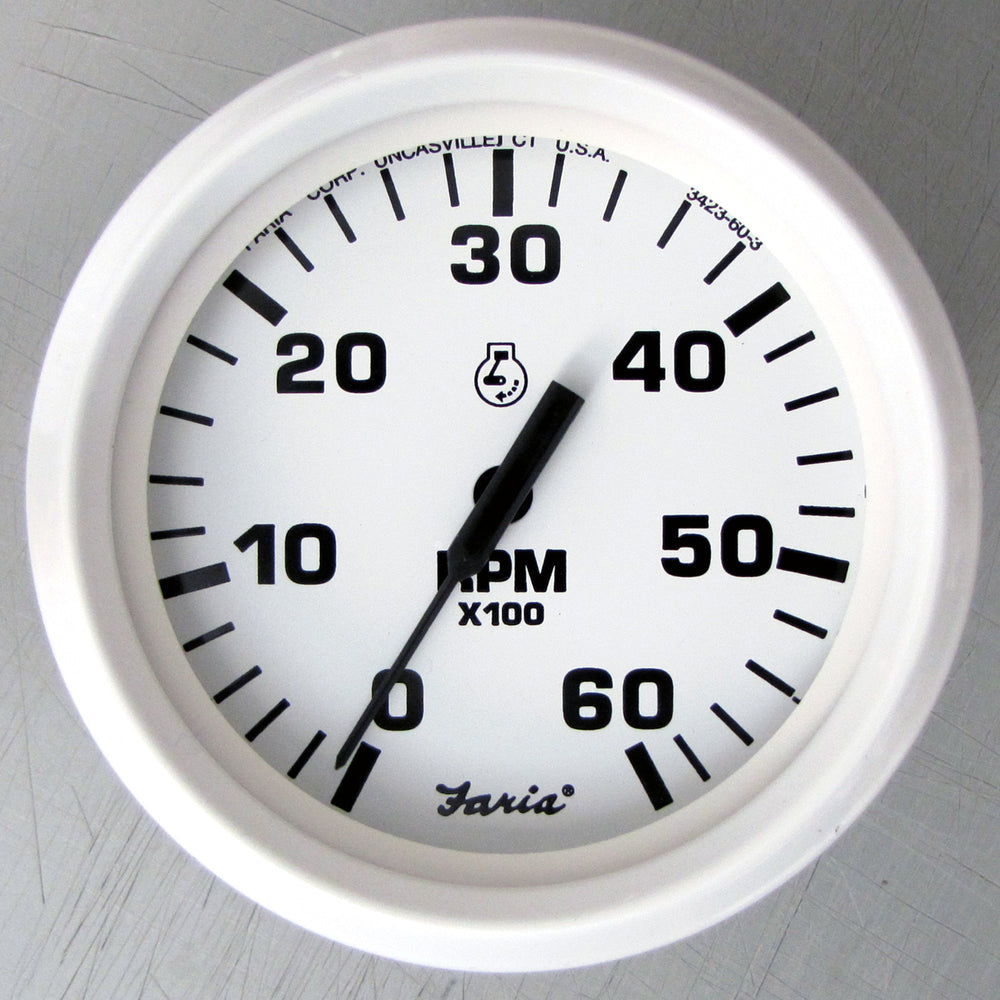

The Faria Beede 33103 Dress White 4 Tachometer is specifically designed for gas inboard engines and has a maximum RPM reading of 6,000. This tachometer features a perimeter-lighted white dial with bold black graphics, a white aluminum bezel, a contoured black pointer, and a flat glass lens.

The electronic tachometer operates by counting pulses generated by various sources such as the ignition system, alternator, tach signal generator, or magnetic pickup sender. To configure the tachometer correctly, it needs to be connected to +12VDC, Ground, and one of the signal sources mentioned.

With its adjustable switch, you can select the appropriate tachometer and set it to the correct position to inform the device about the number of pulses sent per engine revolution.

The Faria Beede 33103 tachometer has a hole size of 4" and a diameter of 3.375" (85mm).

Specifications:

• Perimeter-lighted white dial
• Bold black graphics
• White aluminum bezel
• Contoured black pointer
• Flat glass lens with anti-scratch protection
• 12 VDC negative ground
• Can be adapted for 24 VDC systems

Factory P/N: TC9691

Learn More:

• Tachometer on Wikipedia

Product: Faria Beede 33103 4" Tachometer - 6,000 RPM Gas Inboard

Brand: Faria Beede Instruments

Model: 33103

Shipping Weight: 0.70 lb

Shipping Height: 5.00 in

Shipping Width: 6.00 in

Shipping Length: 6.00 in
