Tripp-Lite PDUNV Power Distribution Unit Zero U 14 C13 C19 10Ft Cord

The Tripp-Lite PDUNV Power Distribution Unit (PDU) is a versatile and reliable solution designed for data centers, server rooms, and network wiring closets. With its 1.6/3.8kW Single-Phase 100-240V power distribution, this PDU is perfectly suited for high-density IT environments.

Featuring a switchless design, the PDUNV prevents accidental shutdowns, ensuring continuous operation and avoiding costly downtime. The 16A circuit breaker protects connected equipment from dangerous overloads, providing an additional layer of safety.

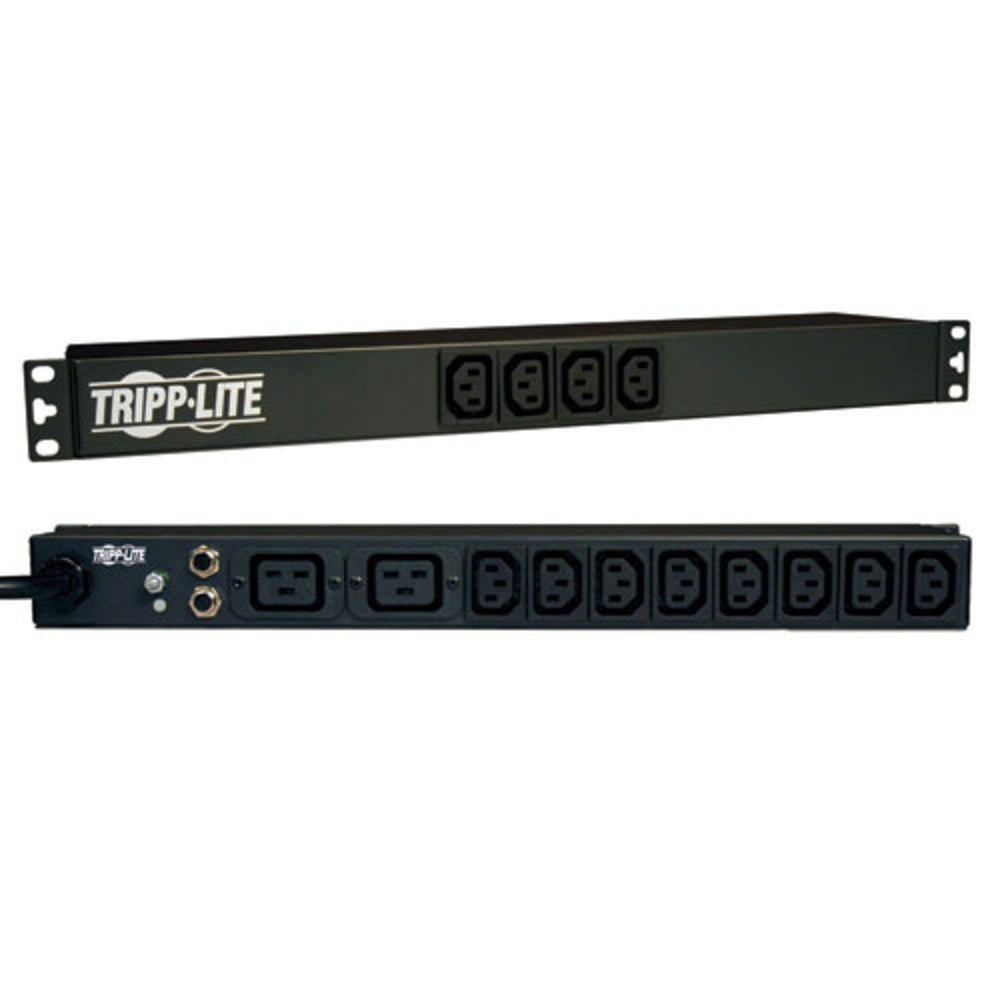

The PDUNV offers a total of 14 outlets, including four C13 outlets in the front and eight C13 and two C19 outlets in the rear. This allows for easy connectivity and efficient power distribution to your equipment.

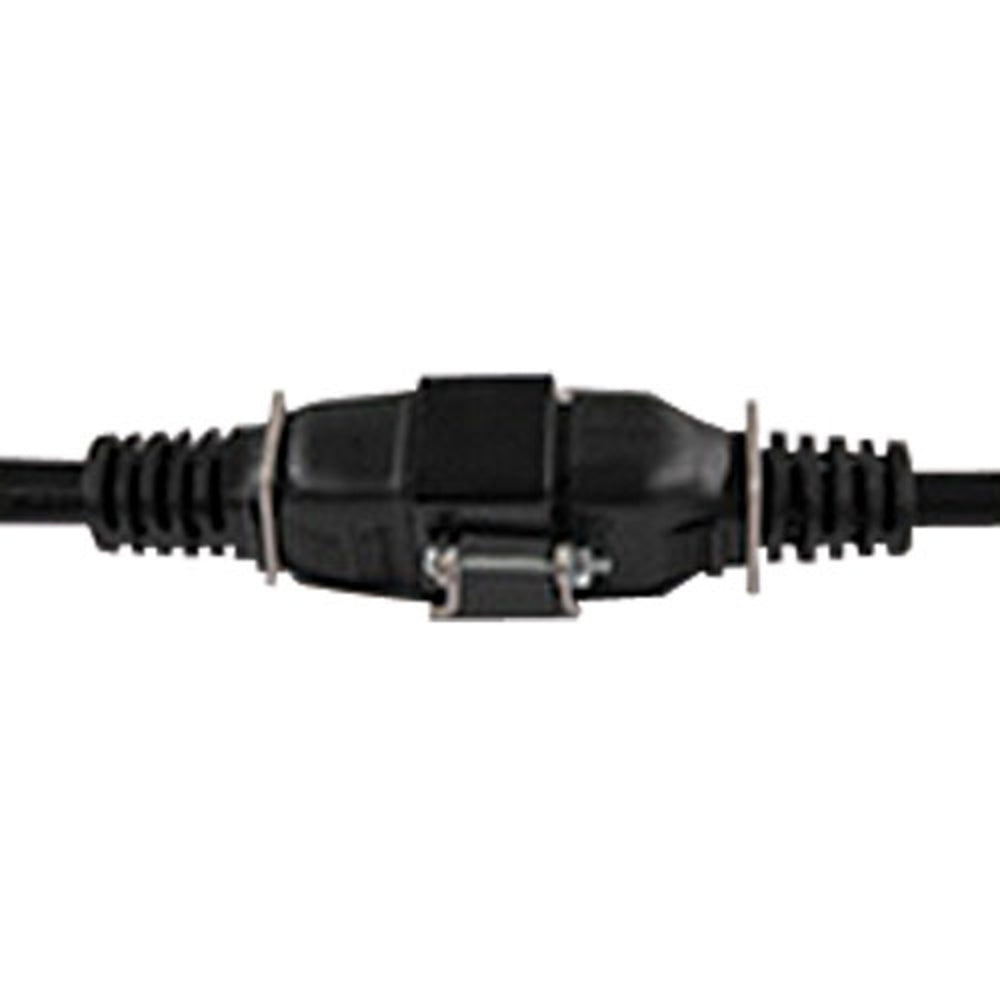

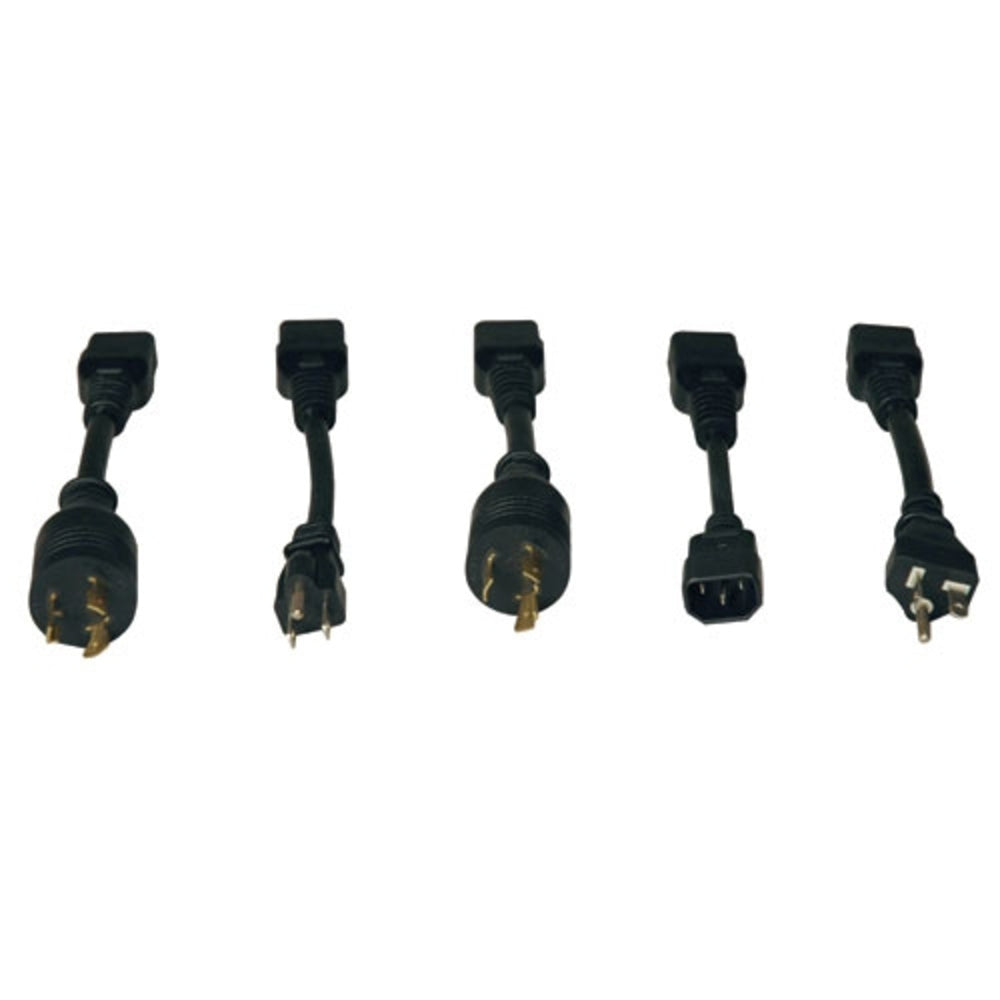

The C20 input plug, equipped with a 10-foot (3 m) cord, connects to your facility's compatible AC power source, generator, or protected UPS, ensuring a reliable power supply. Additionally, five C19 plug adapters with locking retainer clips are included, providing versatility in various power environments.

The reversible all-metal housing of the PDUNV supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks. It can also be mounted under a counter, on a wall, or a workbench using user-supplied hardware. For toolless 0U vertical mounting, the optional PDUSIDEBRKT (sold separately) can be used.

Features:

• PDU types: Basic
• Rack capacity: 1U
• Housing material: Metal
• Nominal input voltage: 100-240
• AC input frequency: 50 - 60
• Nominal output voltage: 100-240
• AC outlets quantity: 14
• AC outlet types: C13 coupler, C19 coupler
• Storage temperature (T-T): -15 - 50
• Operating altitude: 0 - 3000
• RoHS compliance: Y
• Certification: UL60950-1 (USA), CSA (Canada), CE (EU)
• Package weight: 3180
• Package depth: 513.1
• Package height: 61
• Package width: 279.4
• Master (outer) case height: 302.3
• Master (outer) case width: 525.8
• Master (outer) case weight: 19050
• Master (outer) case length: 360.7
• Quantity per master (outer) case: 6
• Cable length: 3
• Product color: Black
• Maximum current: 16
• Mounting: Horizontal
• Dimensions (WxDxH): 444.5 x 108 x 44.4
• Weight: 1450
• Input connection type: NEMA 5-15P, NEMA 5-20P, NEMA L5-20P, NEMA L6-20P, IEC-320 C14, IEC-320 C20

Learn More

• Data Center
• Server Room
• Network Wiring Closet
• Power Distribution Unit (PDU)

Product: Tripp-Lite PDUNV Power Distribution Unit Zero U 14 C13 C19 10Ft Cord

Brand: Tripp Lite

Model: PDUNV

Shipping Weight: 6.50 lb

Shipping Height: 2.50 in

Shipping Width: 11.25 in

Shipping Length: 20.25 in
