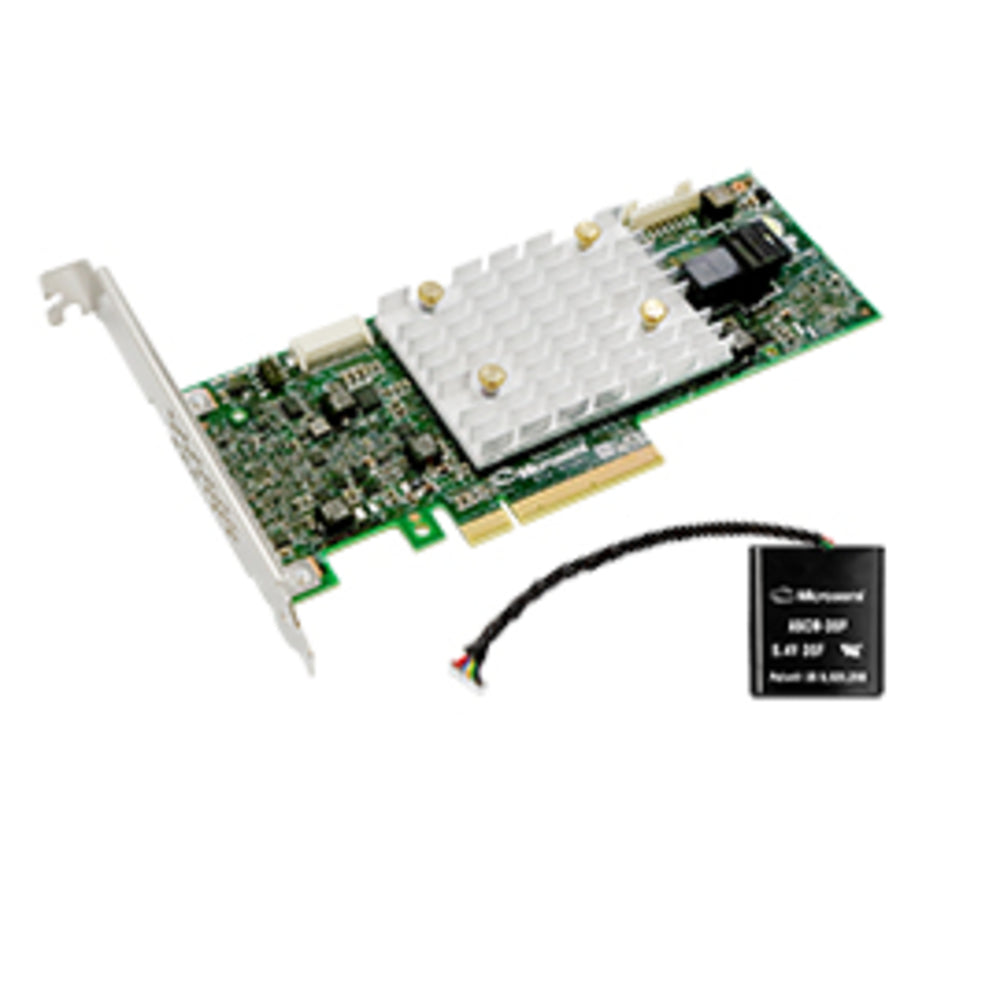

Adaptec 2294900-R Controller Card SmartRAID 3100 4Port 12Gbps MD2-Low Profile

The Adaptec 2294900-R Controller Card SmartRAID 3100 4Port 12Gbps MD2-Low Profile is a high-performance RAID controller card designed to provide maximum read/write bandwidth and IOPS for performance-hungry transactional and database applications. With support for up to 24 native ports in LP/MD2 form factor, this adapter offers up to 1.7 million IOPS and integrated cache backup and SSD caching on most SKUs.

The SmartRAID 3100 adapters support read and write-back caching, leveraging the performance and latency capabilities of SSD technology for both read and write workloads. Integrated flash-based cache protection ensures instant cache protection with a tethered Microsemi Adaptec ASCM-35F capacitor module for data backup in case of power loss.

In addition to advanced data protection features, the SmartRAID 3100 adapters offer Mixed Mode support, adapter power management, and data migration capabilities. The Adaptec maxView provides an HTML5 web interface for storage configuration and management, supporting local and remote management with plugins for major storage management software suites.

Features:

• Supported storage drive interfaces: SAS, Serial ATA III
• Host interface: PCI Express x8
• PCI Express slots version: 3.0
• PCI Card form factor: Half-height (low-profile)
• SSD support: Yes
• RAID levels: 0, 1, 1 ADM, 5, 6, 10, 50, 60
• S.M.A.R.T. support: Yes
• Data transfer rate: 12 Gbps
• Width: 167 mm
• Height: 64 mm
• Windows operating systems supported: Windows 10, Windows 7 x64, Windows 8 x64
• Mac compatibility: No
• Mac operating systems supported: No
• Linux operating systems supported: Yes
• Server operating systems supported: Windows Server 2008 x64, Windows Server 2012 x64, Windows Server 2016 x64
• Internal mini-SAS HD ports: 4
• Internal memory: 1024 MB
• Internal memory type: DDR4
• Memory clock speed: 2100 MHz
• Chipset: SmartROC 3100
• Operating temperature (T-T): 0&degC - 55&degC
• Mean time between failures (MTBF): 1,370,000 hours
• Certification: RoHS, CE, FCC, UL, C-tick, VCCI, KCC, CNS
• RAID Level Migration: Yes
• Online Capacity Expansion: Yes
• Hot-Plug support: Yes
• Form factor: MD2

Learn More

For more information, visit the RAID Wikipedia page.

Product: Adaptec 2294900-R Controller Card SmartRAID 3100 4Port 12Gbps MD2-Low Profile

Brand: Adaptec

Model: 2294900-R

Shipping Weight: 2.00 lb

Shipping Height: 2.00 in

Shipping Width: 10.00 in

Shipping Length: 15.00 in
