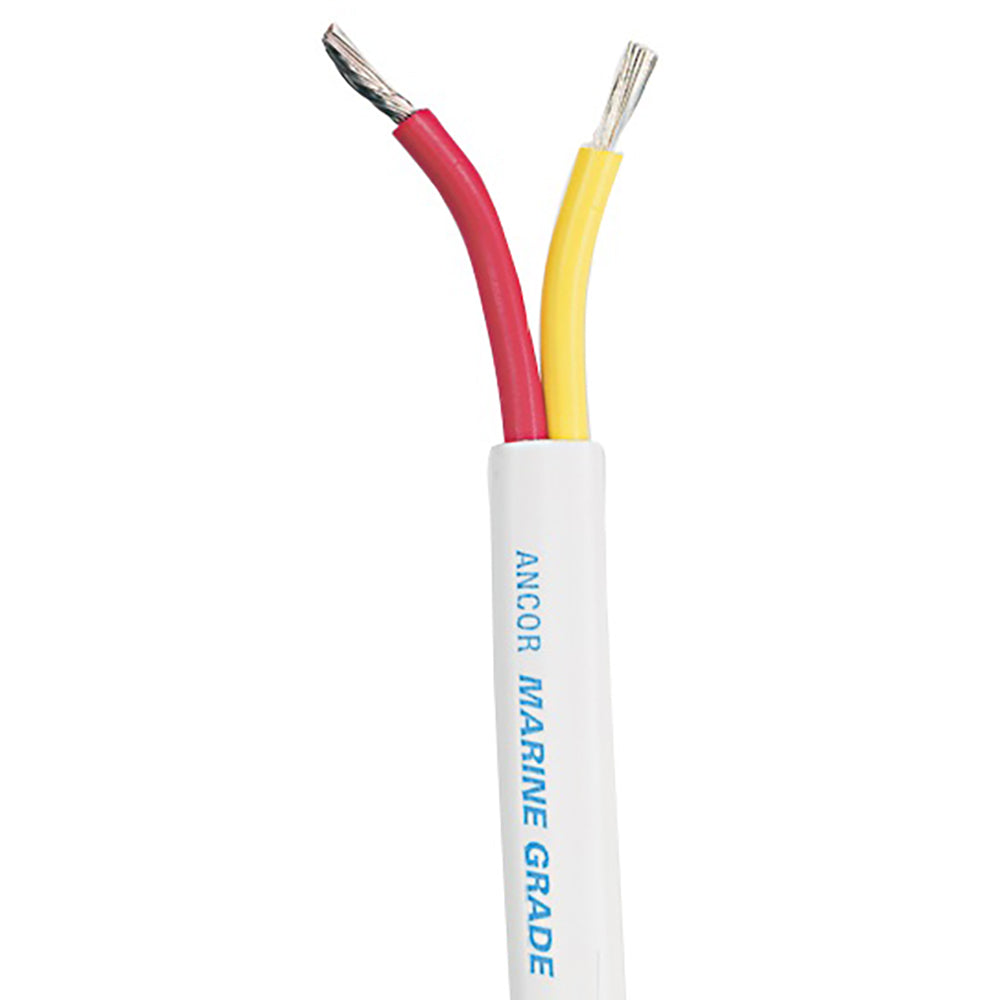

Ancor 14/2 AWG Safety Duplex Cable - 250' Red/Yellow Flat (124525)

The Ancor 14/2 AWG Safety Duplex Cable is a high-quality marine-grade cable designed for maximum protection against corrosion and electrolysis. With its red and yellow Marine Grade primary conductors, this cable is correctly color-coded to ABYC standards. The white common jacket provides easy removal while offering exceptional abrasion resistance.

Features:

• Red and yellow Marine Grade primary conductors in a white common jacket
• Manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis
• Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing
• Stays flexible even in extreme cold (-40 deg C)
• Resists salt water, battery acid, oil, gasoline, and ultra-violet radiation

Specifications:

• Model: 124525
• Cable Type: Safety Duplex
• Wire Gauge: 14/2 AWG (2 x 2mm)
• Length: 250 feet
• Color: Red/Yellow
• Conductor Material: Tinned Copper
• Jacket Material: Vinyl
• Voltage Rating: 600 volts
• Temperature Rating: 105 deg C dry, 75 deg C wet

Product Description:

The Ancor Safety Duplex Cable is designed to exceed UL 1426 standards, ensuring reliability and durability in marine applications. It is constructed with the highest quality ultra flexible (Type 3/Class K) tinned copper stranding, providing superior protection against corrosion and electrolysis. The premium vinyl insulation offers excellent resistance to salt water, battery acid, oil, gasoline, heat, abrasion, and ultra-violet radiation.

This safety duplex cable is incredibly flexible, even in extreme cold temperatures (-40 deg F/C), and is resistant to fatigue caused by vibration and flexing. It is built to withstand the harsh marine environment, making it ideal for various marine electrical applications.

Learn More:

• Marine Electrical Systems - Wikipedia
• Electrolysis - Wikipedia
• Abrasion - Wikipedia

Product: Ancor 14/2 AWG Safety Duplex Cable - 250' Red/Yellow Flat (124525)

Brand: Ancor

Model: 124525

Shipping Weight: 15.10 lb

Shipping Height: 5.00 in

Shipping Width: 11.00 in

Shipping Length: 11.00 in
