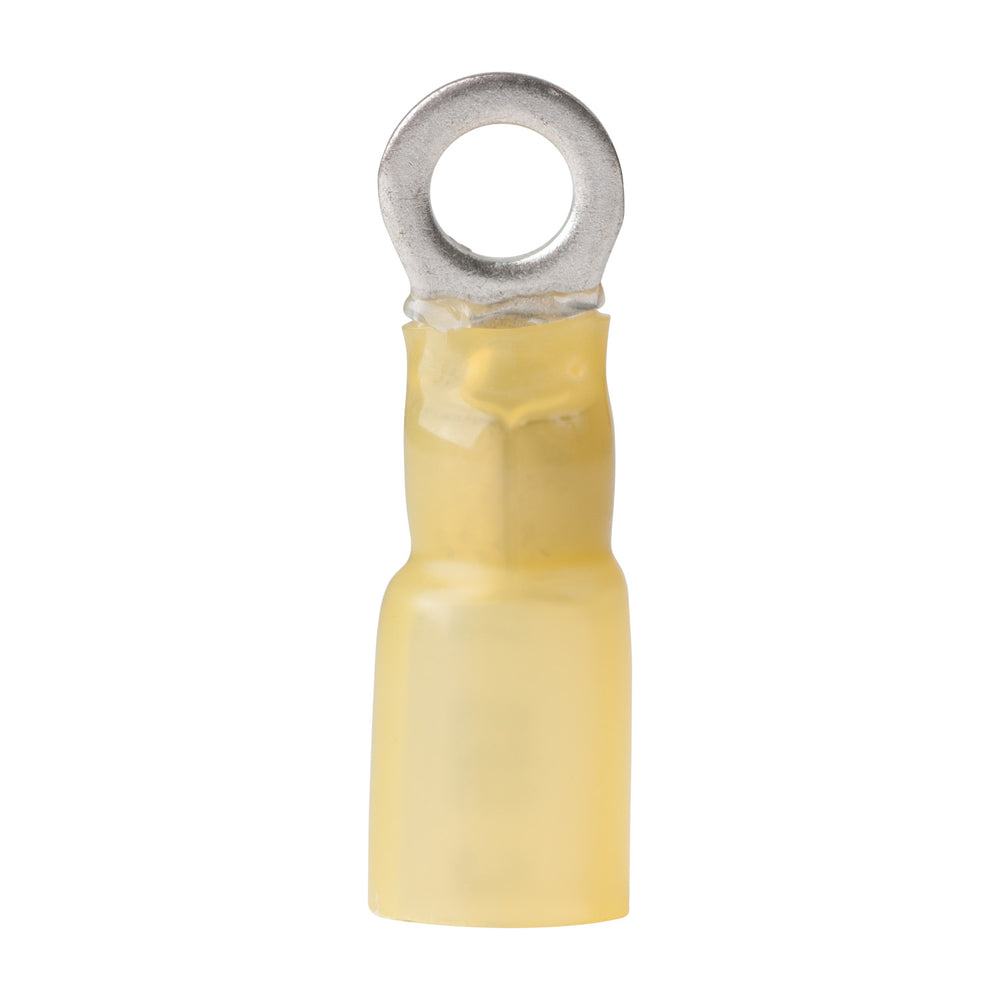

Ancor 312399 Yellow Heat Shrink Ring Terminal 12-10, 10 Ring - 100 Pack

Enhance the durability and reliability of your electrical connections with the Ancor 312399 Yellow Heat Shrink Ring Terminal. Designed for 12-10 gauge wires and #10 screws, this 100-pack of heat shrink ring terminals ensures secure and long-lasting connections in various applications.

Product Features:

• Cross-Linked Polyolefin Tubing: The heat shrink ring terminal is made of cross-linked polyolefin tubing, which is significantly stronger than PVC tubing. It offers excellent resistance to burning and outperforms PVC in demanding environments.
• Heat Activated Adhesive Lining: The terminal features a heat-activated adhesive lining that provides an impervious seal against saltwater, oil, acids, and sunlight. It also offers strain relief, ensuring enhanced connection stability.
• Nylon Insulator: The preferred choice of experts, the nylon insulator provides Marine GradeT resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage. It enhances the terminal's durability and performance in marine applications.
• UL Listed and CSA Recognized: This heat shrink ring terminal is UL Listed and CSA Recognized, meeting the highest industry standards for safety and performance.
• Highest Shrink Ratio: With a shrink ratio of 1/3, the terminal shrinks to one-third of its original size, providing a tight and secure fit around the wire.
• Shrinks at 257&degF/125&degC: The terminal efficiently shrinks at a temperature of 257&degF/125&degC, ensuring a quick and reliable installation process.
• Operating Temperature Range: With an operating temperature range of 40&degC to 110&degC, the terminal remains stable and functional in various environmental conditions.
• Heat Activated Adhesive: The Ancor heat shrink connectors feature heat-activated adhesive built into the sleeve of the heat shrink tubing. This adhesive creates a watertight seal, offering ultimate vibration and strain relief.
• Tinned for Corrosion Resistance: The terminal is tinned for superior corrosion resistance, ensuring long-lasting performance even in harsh marine environments.
• Pure Copper Construction: Made from pure copper, the terminal provides maximum current flow for efficient electrical connections.
• Brazed Seam: The brazed seam design ensures maximum strength, enhancing the terminal's durability and reliability.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to California Proposition 65.

Learn More

• Cross-Linked Polyethylene
• Nylon
• UL (Safety Organization)
• CSA Group
• Corrosion

Product: Ancor 312399 12-10 10 Ring Terminal Heat Shrink Yellow 100 Pack

Brand: Ancor

Model:

Shipping Weight: 0.40 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 8.00 in
