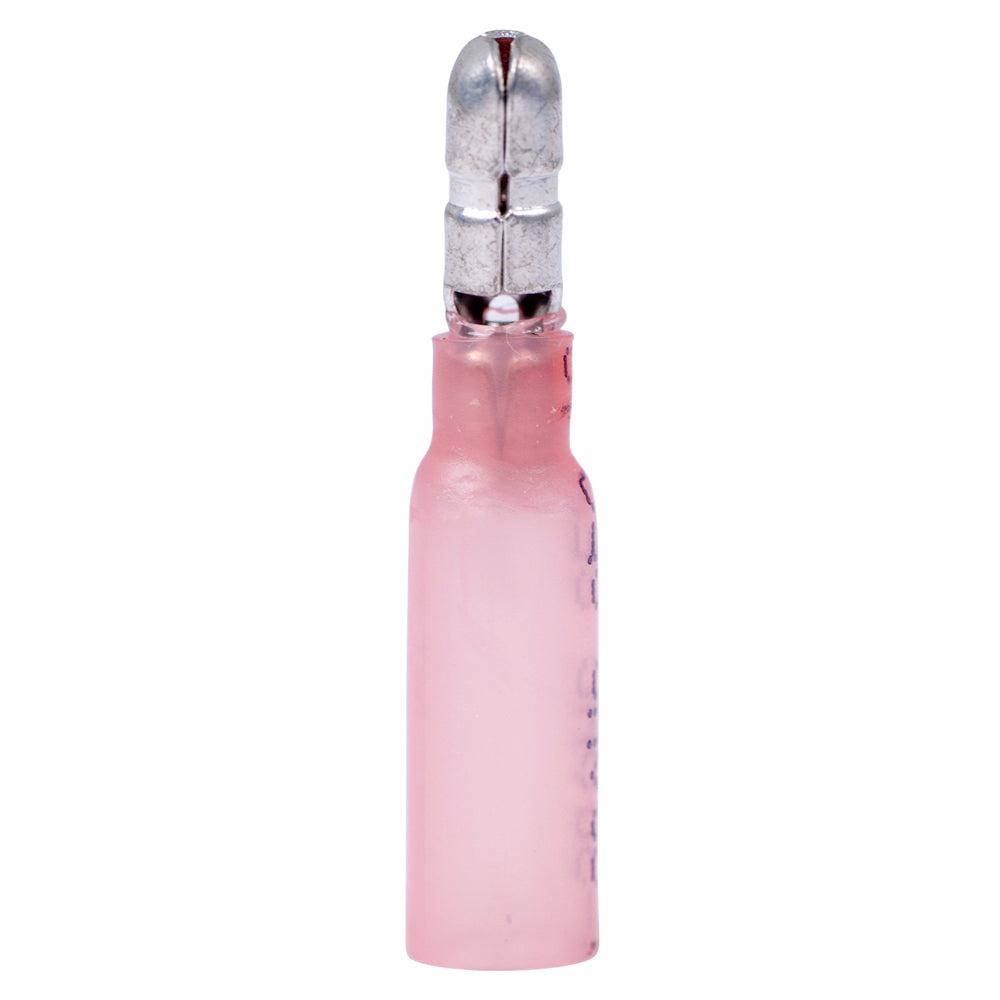

Ancor 318999 22-18 Male Snap Plug Heat Shrink Red 100 Pack

The Ancor 318999 22-18 Male Snap Plug Heat Shrink Red 100 Pack is a high-quality electrical connector designed for various applications. With its superior features and specifications, this product ensures reliable and durable connections.

Features:

• Cross Linked polyolefin tubing: The tubing used in this connector is much stronger than PVC tubing and offers exceptional resistance to burning.
• Heat activated adhesive lining: The adhesive lining provides an impervious seal to salt water, oil, acids, and sunlight. It also acts as a strain relief, enhancing the durability of the connection.
• Nylon insulator: The connector features a nylon insulator, which is preferred by experts for its Marine Grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• UL Listed and CSA Recognized: This product meets industry standards and is UL Listed and CSA Recognized, ensuring its safety and reliability.
• Highest shrink ratio: The connector shrinks to 1/3 of its original size, providing a tight and secure fit.
• Shrinks at 257 deg. F/125 deg. C: The connector can be easily shrunk using a heat source with a temperature of 257 deg. F/125 deg. C.
• Operating temperature range: The connector can withstand temperatures ranging from 40 deg. C to 110 deg. C.
• ANCOR heat shrink connectors: These connectors have a heat activated adhesive built into the sleeve of the heat shrink tubing. They form a watertight seal and provide excellent vibration and strain relief.
• Tinned for corrosion resistance: The connectors are tinned to enhance their corrosion resistance, making them suitable for various environments.
• Pure copper for maximum current flow: The connectors are made of pure copper, ensuring maximum current flow and minimizing power loss.
• Brazed seam for maximum strength: The connectors feature a brazed seam construction, providing maximum strength and durability.

Specifications:

• Wire Range: 22-18/.157
• Size: 0.3-0.8mm/4mm
• Gender: Male
• Qty/Pkg: 100

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More:

• Electrical Connector
• Heat Shrink
• Nylon
• UL (safety organization)
• CSA Group

Product: Ancor 318999 22-18 Male Snap Plug Heat Shrink Red 100 Pack

Brand: Ancor

Model:

Shipping Weight: 0.20 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 5.00 in
