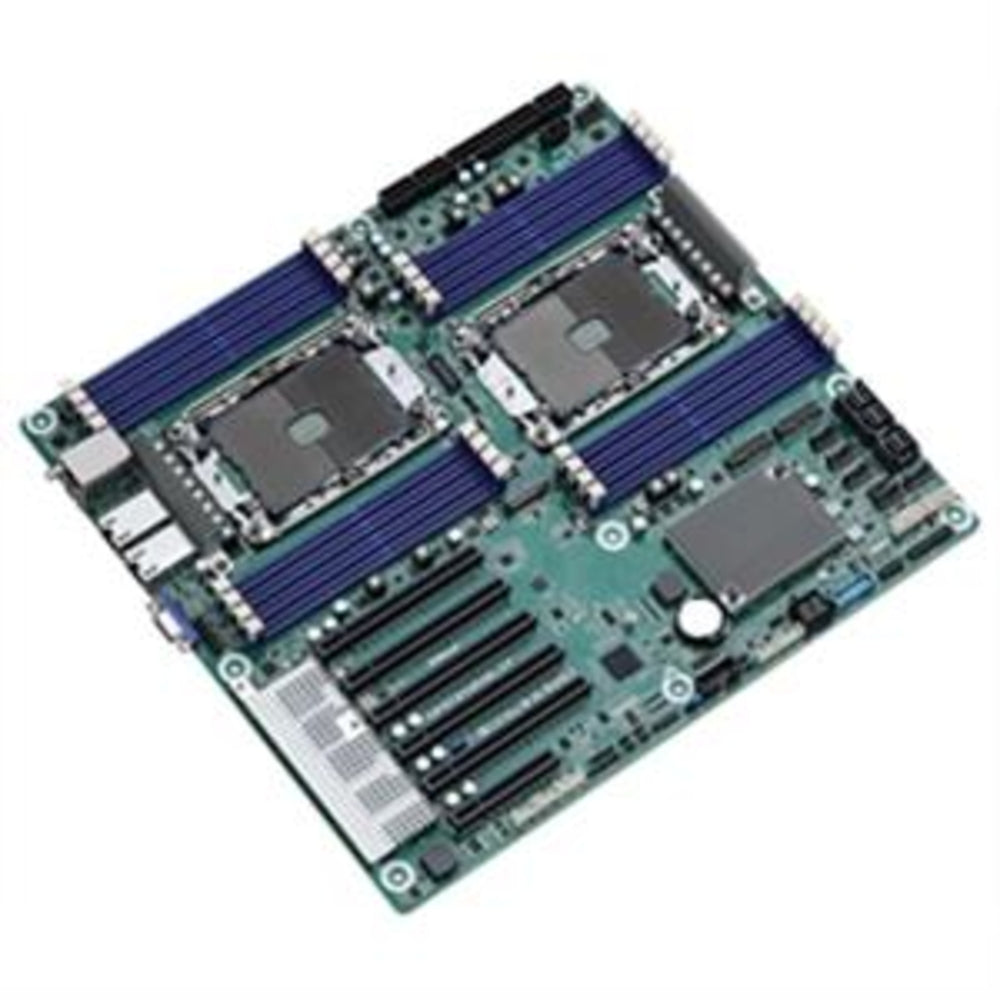

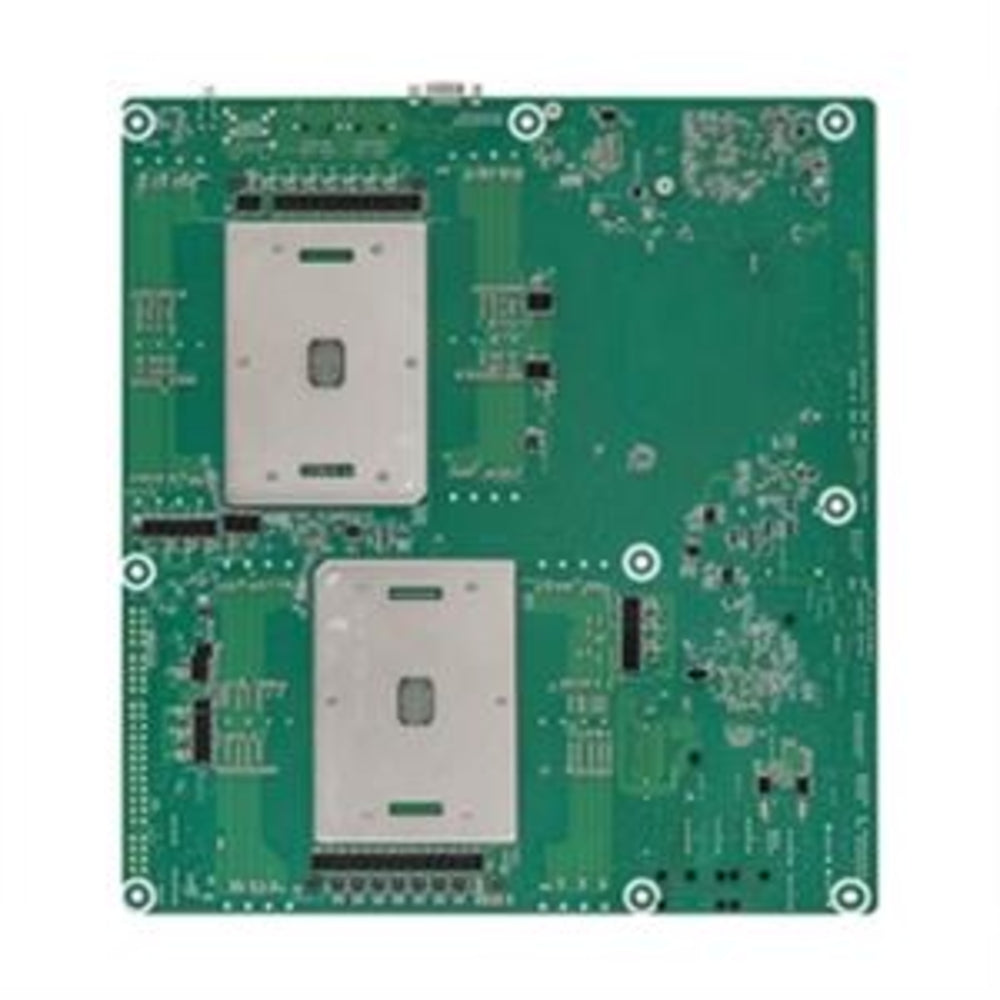

ASRock MB SP2C621D16-2T C621A Xeon Socket P+ LGA4189 DDR4 PCIe EEB Retail

ASRock MB SP2C621D16-2T C621A Xeon Socket P+ LGA4189 DDR4 PCIe EEB Retail is a high-quality server motherboard designed to support 3rd Gen Intelr Xeonr Scalable processors. It comes with 8+8 DIMM slots (1DPC) and supports DDR4 RDIMM, LRDIMM, and Intelr Optane, Persistent Memory. This EEB form factor motherboard features 5 PCIe4.0 x16, 1 PCIe4.0 x8, 2 SlimSAS (PCIe4.0 x8), and supports 1 M.2 (PCIe4.0 x4). With 14 SATA 6Gb/s ports and 2 RJ45 (10GbE) by Intelr X550-AT2, this motherboard ensures efficient and reliable performance for server applications. Additionally, it comes with remote management (IPMI) for enhanced control and monitoring.

Physical Status

• Form Factor: EEB
• Dimensions: 12inch x 13inch

Processor System

• CPU: Supports 3rd Gen Intel Xeon Scalable processors
• Socket: Dual Socket P+ (LGA 4189)
• Chipset: Intel C621A

System Memory

• Supported DIMM Quantity: 8+8 DIMM slots (1DPC)
• Supported Type: Supports DDR4 288-pin RDIMM/RDIMM-3DS/LRDIMM/LRDIMM-3DS, Intel Optane^TM Persistent Memory 200 Series
• Max. Capacity per DIMM: RDIMM: up to 64GB, RDIMM-3DS: up to 256GB, LRDIMM: up to 128GB, LRDIMM-3DS: up to 256GB
• DIMM Frequency: max. 3200MHz
• Voltage: 1.2V

PCIe Expansion Slots (SLOT7 close to CPU)

• PCIe x 16: SLOT6: PCIe4.0 x16 (CPU1), SLOT5: PCIe4.0 x16 (CPU1), SLOT4: PCIe4.0 x16 (CPU1), SLOT3: PCIe4.0 x16 (CPU0), SLOT2: PCIe4.0 x16 (CPU0)
• PCIe x 8: SLOT1: PCIe4.0 x8 (CPU0)

Other PCIe Expansion Connectors

• M.2 slot: 1 M-key (PCIe4.0 x4), Support 22110/2280 form factor (CPU0)
• SlimSAS: 2 SlimSAS (PCIe4.0x8) (CPU0)

SATA/SAS Storage

• PCH Built-in Storage: Intel C621A (14 SATA 6Gb/s, support RAID 0/1/5/10): 1 Mini-SAS HD 8i, 1 Mini-SAS HD 4i, 2 SATA 7-pin

Ethernet

• Additional GbE Controller: Intel X550-AT2: 2 RJ45 (10GbE)

Server Management

• BMC Controller: ASPEED AST2500
• IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management GLAN

Graphics

• Controller: ASPEED AST2500
• VRAM: DDR4 16MB

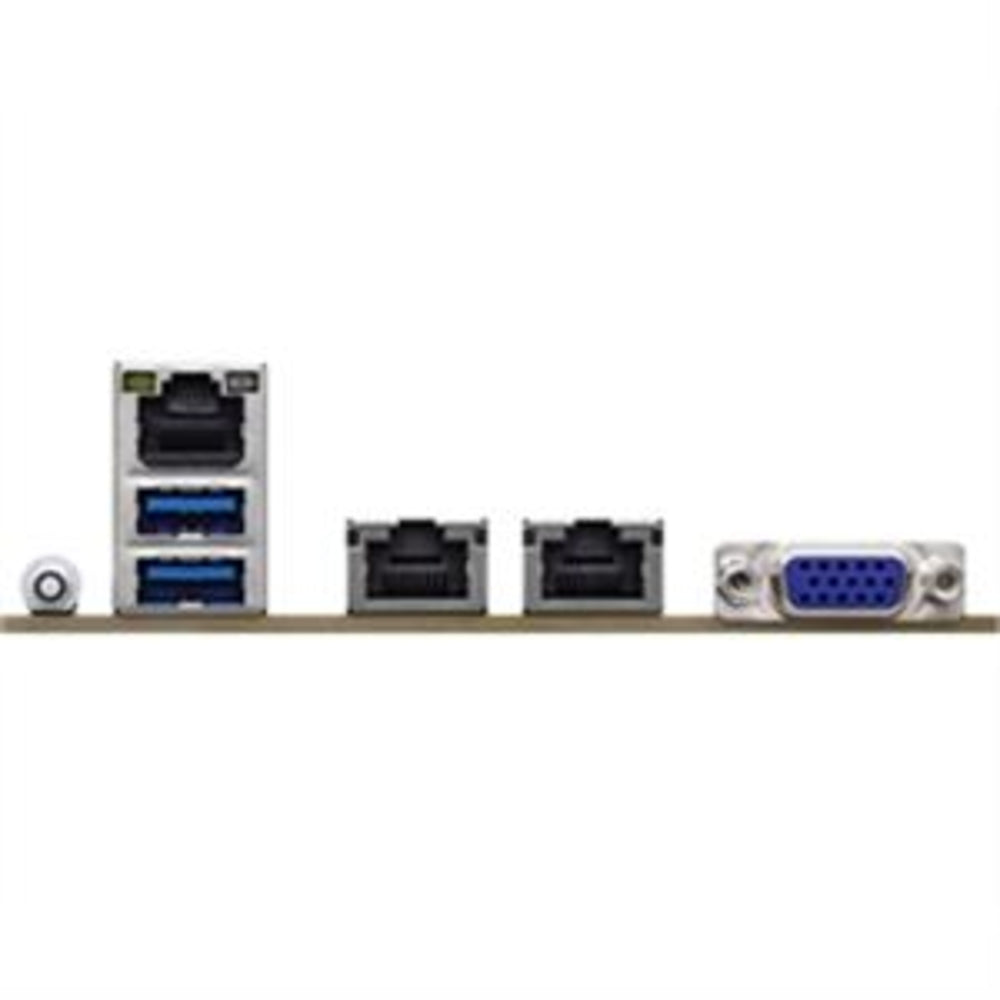

Rear I/O

• UID Button/LED: 1
• VGA Port: 1 DB15
• USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
• RJ45: 2 RJ45 (10GbE)
• Dedicate LAN: 1 dedicated IPMI LAN port

Internal Connector/Headers

• Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
• System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
• COM Header: 1
• Video output: 1
• Fan Header: 4 (8-pin), 2 (6-pin)
• TPM Header: 1 (13-pin, SPI)
• VROC header: 1
• HSBP: 1
• SMBus header: 1
• PMB header: 1
• Clear CMOS: 1 (contact pads)
• USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
• Power Connector: 1 (24-pin, ATX main power), 3 ( 8-pin, ATX 12V)

System BIOS

• BIOS Type: AMI 256 Mb SPI Flash ROM
• BIOS Features: ASRock Rack Instant Flash, ACPI 5.0, SMBIOS 2.3, Plug and Play (PnP)

Hardware Monitor

• Temperature: CPU, PCH, MB, Card side, X550 Temperature Sensing
• Fan: CPU/Rear/Front Fan Tachometer, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), CPU/Rear/Front Fan Multi-Speed Control
• Voltage: CPU1_PVCCIN, CPU2_PVCCIN, PVDDQ_ABCD,PVDDQ_EFGH,PVDDQ_IJKL,PVDDQ_MNOP, 1.05V_PCH,1.8V_PCH, +BAT,PVNN_PCH, 3.3V,5V,12V,3.3VSB, 5VSB

Environment

• Temperature: Operation temperature: 10^oC to 35^oC

Learn More

• ASRock Wikipedia

Product: ASROCK AMERICA INC SP2C621D16-2T Rack Eeb Server Motherboard Dual Socket P+ Lga

Brand: ASRock

Model: SP2C621D16-2T

Shipping Weight: 10.00 lb

Shipping Height: 5.00 in

Shipping Width: 16.00 in

Shipping Length: 17.00 in
