WEATHERDECK™ WATER RESISTANT SWITCH ONLY BREAKER PANEL (BLUE SEA SYSTEMS)

The Blue Sea Systems WeatherDeck® Water Resistant Switch Only Breaker Panel is a reliable and durable solution for marine environments. Designed to withstand harsh conditions, this switch panel is waterproof and rated IP67, providing protection against temporary immersion in water. It is constructed with materials that resist deterioration from the sun, salt, and water, making it ideal for use on small boats.

The WeatherDeck® Switch Panel features integrated switch guards, reducing the risk of accidental switching. It can be mounted in four different orientations, offering flexibility in installation. The panel front is rated IP67 when properly mounted with a watertight mounting gasket. The UV stabilized weather-resistant faceplate snaps on and off, providing easy access to components while concealing mounting screws.

Product Features:

• Waterproof and rated IP67 for temporary immersion in water
• Integrated switch guards reduce the risk of accidental switching
• Panels can be mounted in four different orientations
• Panel front rated IP67 when properly mounted with watertight mounting gasket
• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mounting screws

Specifications:

• Weatherproof/Waterproof
• Positions: 4
• Nominal Voltage: 12V DC, 24V DC
• Circuit Protection: None
• Maximum Amperage: 15A at 12V DC (per circuit)
• Panel Cumulative Rating: 45A
• Height: 4.30in (109.22 mm)
• Width: 3.88in (98.55 mm)
• Depth: 2.50in (63.5 mm)
• Material: Reinforced Polycarbonate

What's in the Box:

• Panel
• 4138 - Boot x 4
• 4150 - Toggle Switch x 4
• Label kit

Learn More:

• Waterproofing
• IP Code
• Polycarbonate

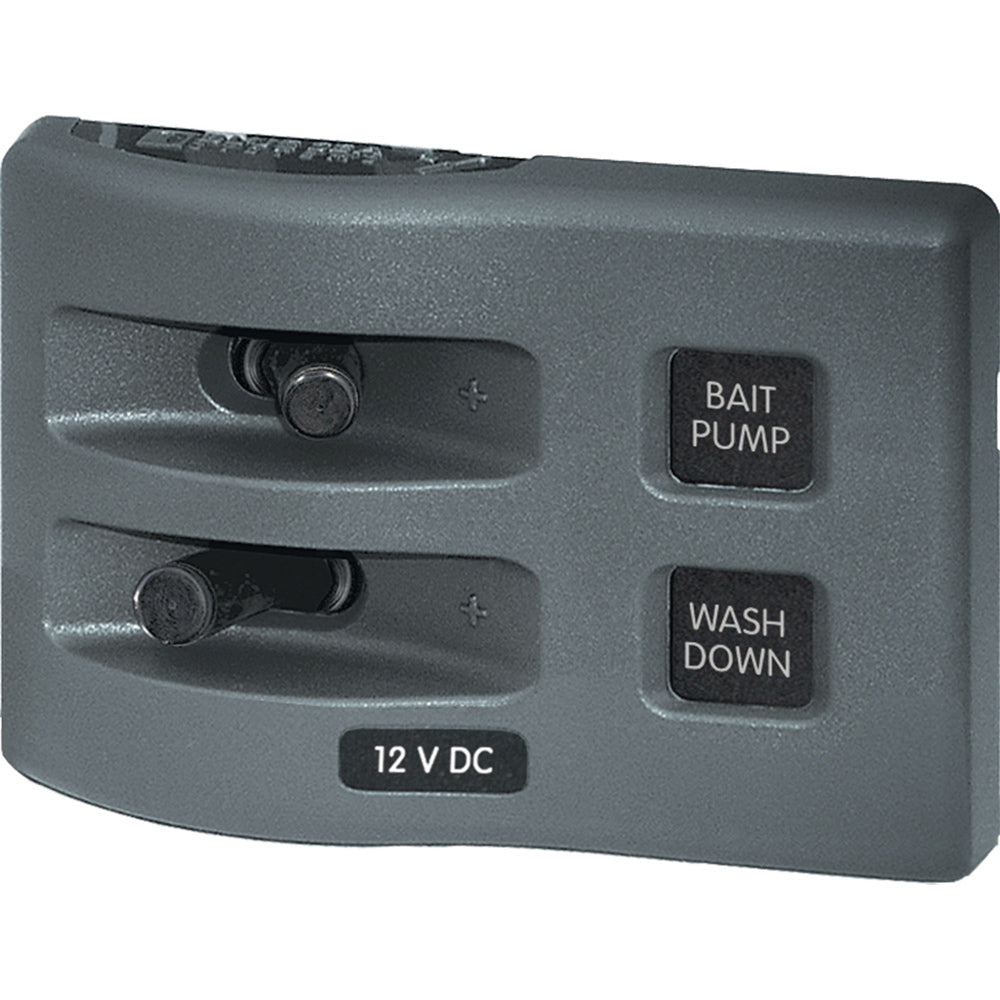

Product: Blue Sea 4303 WeatherDeck 12V DC Waterproof 2-Position Switch Panel

Brand: Blue Sea Systems

Model: 4303

Shipping Weight: 0.45 lb

Shipping Height: 4.00 in

Shipping Width: 6.00 in

Shipping Length: 6.00 in
