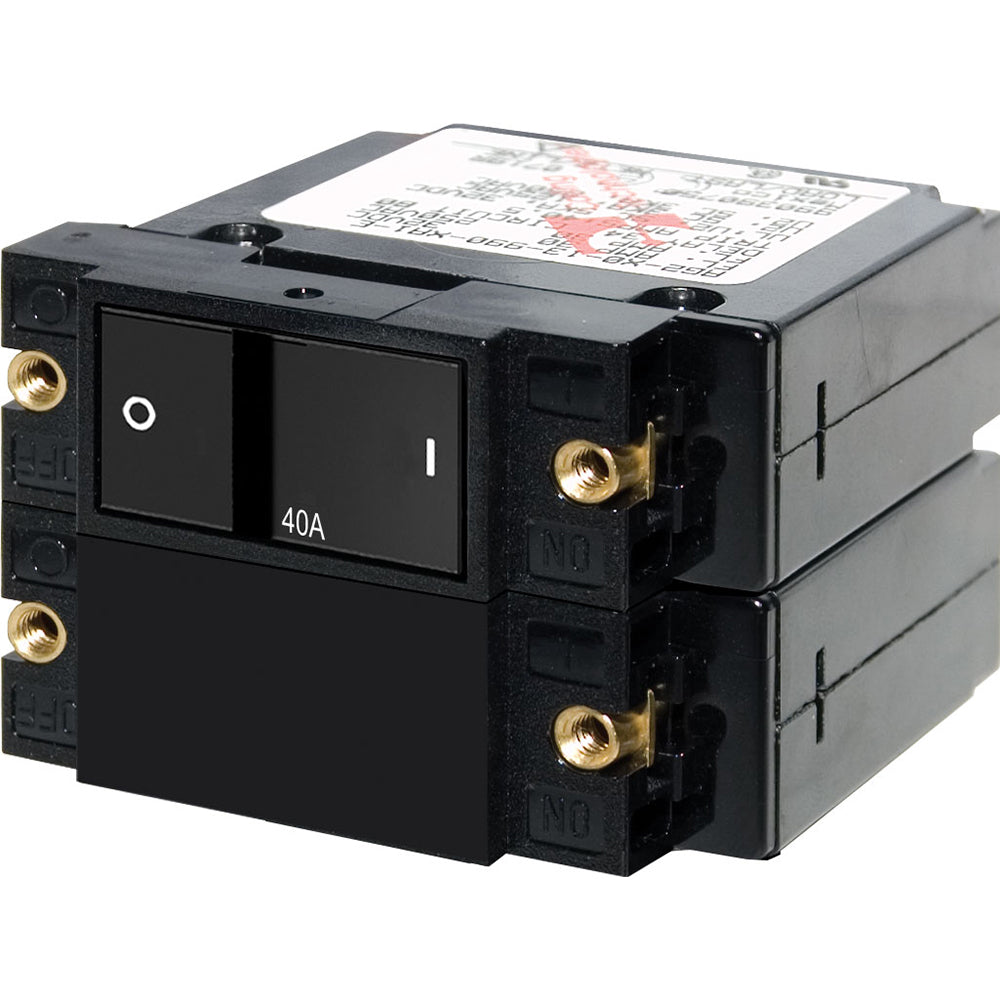

Blue Sea 7416 A-Series 40A Flat Rocker Double Pole Circuit Breaker

The Blue Sea 7416 A-Series 40A Flat Rocker Double Pole Circuit Breaker is a high-quality circuit breaker designed for both AC and DC applications. With its flat rocker actuator and double pole configuration, this circuit breaker offers reliable and efficient protection for your electrical circuits.

Features:

• Color actuator indicates "OFF" position
• "Trip Free" design cannot be held "ON" during fault current condition
• International ON/OFF symbols support vertical or horizontal mounting

Specifications:

• Amperage: 40A AC / 40A DC
• Actuator Style: Flat Rocker
• Poles: 2
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 3000A at 240V AC / 1500A at 240V AC[TUV] / 5000A at 32V DC
• Minimum Operating Temperature: -40&degC
• Maximum Operating Temperature: 85&degC
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Screw Terminal Torque: 14 in-lb (1.58 Nm)
• Switching Cycles: 10000
• Terminal Screw: #10-32 Stainless Steel
• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More

• Circuit Breaker on Wikipedia

Product: Blue Sea 7416 A-Series 40A Flat Rocker Double Pole Circuit Breaker

Brand: Blue Sea Systems

Model: 7416

Shipping Weight: 0.40 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 5.00 in
