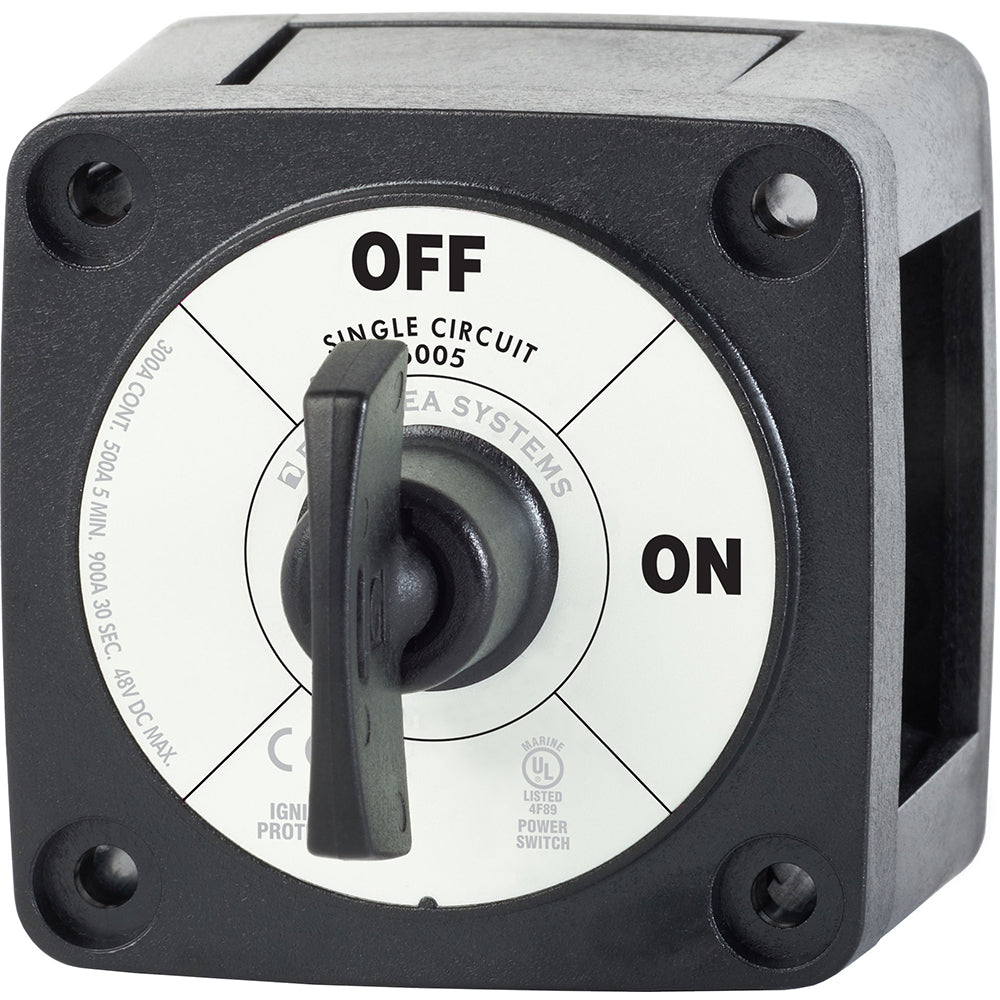

Blue Sea Systems M-Series 6005200-BSS Battery Switch - On/Off Black Key

The Blue Sea Systems m-Series Mini On-Off Battery Switch with Key - Black is a high-quality switch that is perfect for use in marine and automotive applications. With its tin-plated copper studs, this switch offers maximum conductivity and corrosion resistance, ensuring that it will last for years to come. The switch is also waterproof and ignition-protected, making it safe for use aboard gasoline-powered boats.

Product Features:

• Single Circuit ON-OFF switch type
• Red color
• 2 switch positions

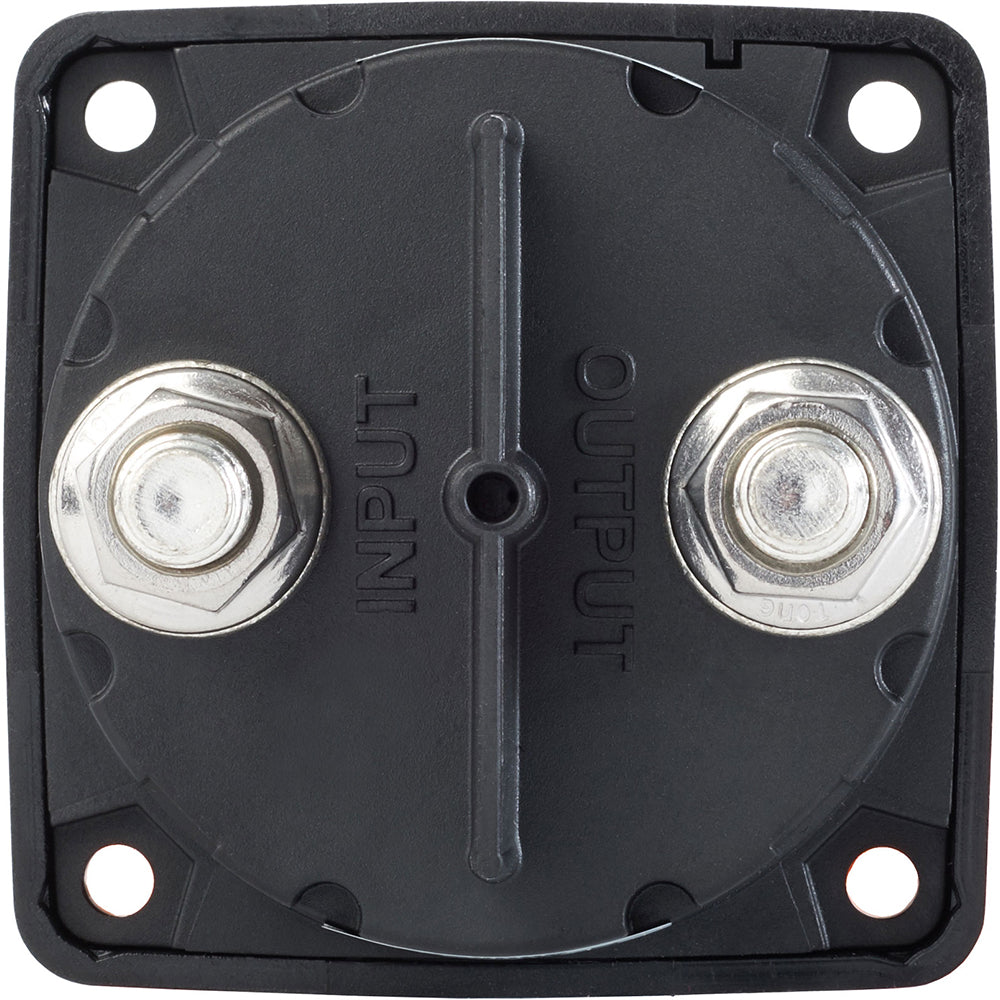

• Studs accept 3/8" (M10) ring terminals
• 7/8" (22mm) stud length accepts multiple cable terminals
• One-piece terminal stud design never loosens over time
• Isolating cover with snap-on sections protects rear contacts

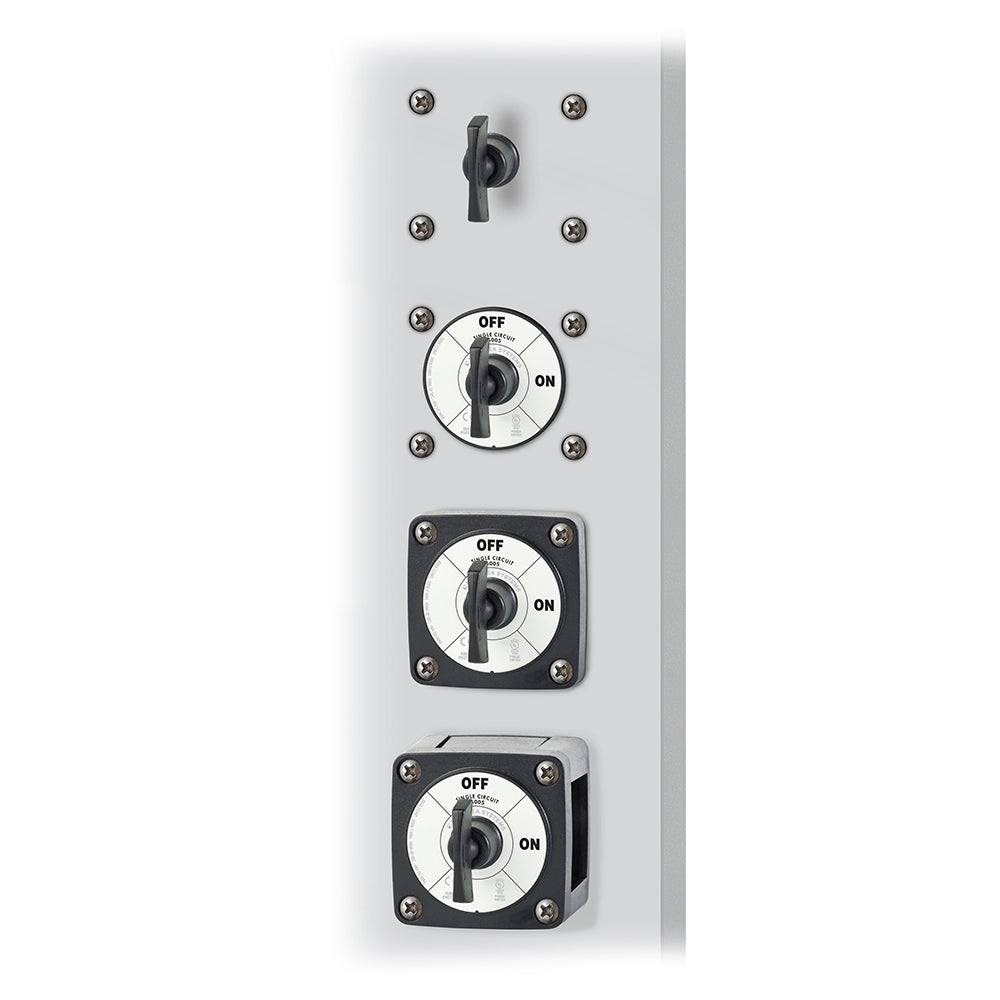

• Case design allows surface, rear, or front panel mounting options
• Waterproof - rated IP66 from water projected in powerful jets
• One-piece stainless flange nuts ensure safe and secure connections
• Breakout tabs allow wire access in any direction
• Ignition protected - safe for installation aboard gasoline powered boats
• Switches a single battery to a single load group
• Continuous Rating: 300A
• Intermittent Rating: 500A (5 min)
• Cranking Rating 30 sec: 900A

Specifications:

• Battery Combine: No
• Alternator Field Disconnect: No
• Maximum Voltage: 48vDC
• Terminal Stud Torque: 120 in-lb (13.56 Nm)
• Battery Inputs: 1
• Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm)
• Mounting Holes Accept #10 Screw
• Stud Material: Tinned Copper
• Stud Torque: 120 in-lb (13.56 Nm)
• Terminal Stud Size: 3/8" - 16 (M10)

Learn More:

• Battery Switch Wikipedia Page
• Tinned Copper Wire Wikipedia Page
• Marine Electronics Wikipedia Page

Product: Blue Sea Systems 6005200-Bss M-Series Battery Switch On/Off Black Key

Brand: Blue Sea Systems

Model: 6005200

Shipping Weight: 0.60 lb

Shipping Height: 3.00 in

Shipping Width: 4.00 in

Shipping Length: 7.00 in
