Blue Sea Systems 8022 DC Analog Ammeter - 0-50 Amp, 2-3/4" Face

The Blue Sea Systems 8022 DC Analog Ammeter is a reliable and accurate meter designed for measuring DC current in a variety of applications. With its backlighting feature, it ensures easy reading even in low light conditions. This ammeter can be either surface or panel mounted, providing flexibility in installation.

The ammeter includes an appropriate external DC shunt when required, simplifying the connection process. With a simple 4-wire connection, it is easy to install and use. The meter face is 2-3/4" in size, allowing for clear and precise readings.

DIN Meters, which are a standard European 72mm design, come with a terminal cover included to prevent accidental short circuits. The DIN Meter face is white matte with a black printed scale and knife-edge pointer, ensuring visibility and accuracy.

Product Features:

• Meters with backlighting for low light conditions
• Can be either surface or panel mounted
• Includes appropriate external DC shunt when required
• Simple 4 wire connection

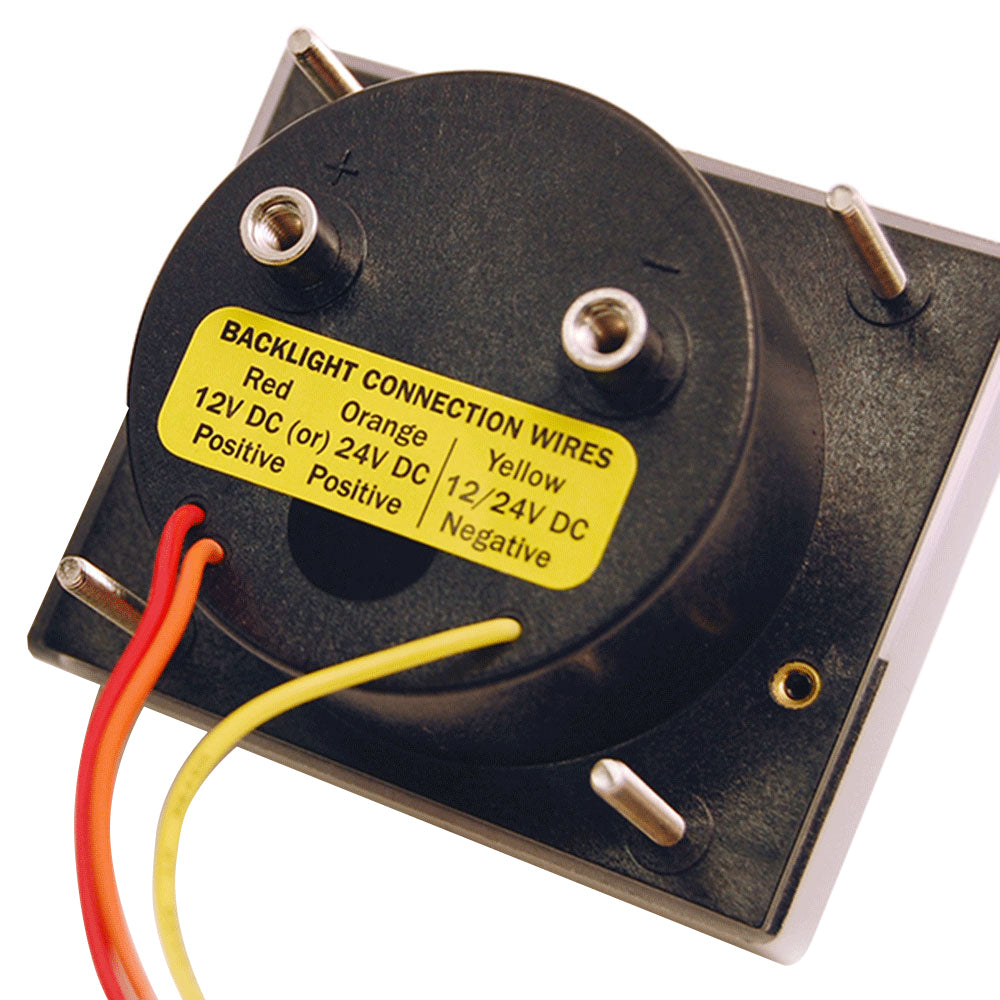

• Backlit meter face (separate 12 or 24V DC backlight connections)
• Face size: 2-3/4"
• DIN Meters include a terminal cover included to prevent accidental short circuit
• DIN Meters are a standard European 72mm design
• DIN Meter face is white matte with black printed scale and knife-edge pointer

Specifications:

• Product: Blue Sea Systems 8022 DC Analog Ammeter
• Measurement Range: 0-50 Amps
• Mounting Type: Surface or Panel Mount
• Connection Type: 4-wire
• Face Size: 2-3/4"
• Backlight: Yes (separate 12V or 24V connection required)
• Terminal Cover: Included for DIN Meters
• Design: Standard European 72mm DIN Meter
• Face Color: White matte with black printed scale and knife-edge pointer

Learn More:

• Ammeter on Wikipedia
• Blue Sea Systems on Wikipedia

Product: Blue Sea Systems 8022 Dc Analog Ammeter 2-3/4 Face 0-50 Amp

Brand: Blue Sea Systems

Model: 8022

Shipping Weight: 0.60 lb

Shipping Height: 3.00 in

Shipping Width: 8.00 in

Shipping Length: 9.00 in
