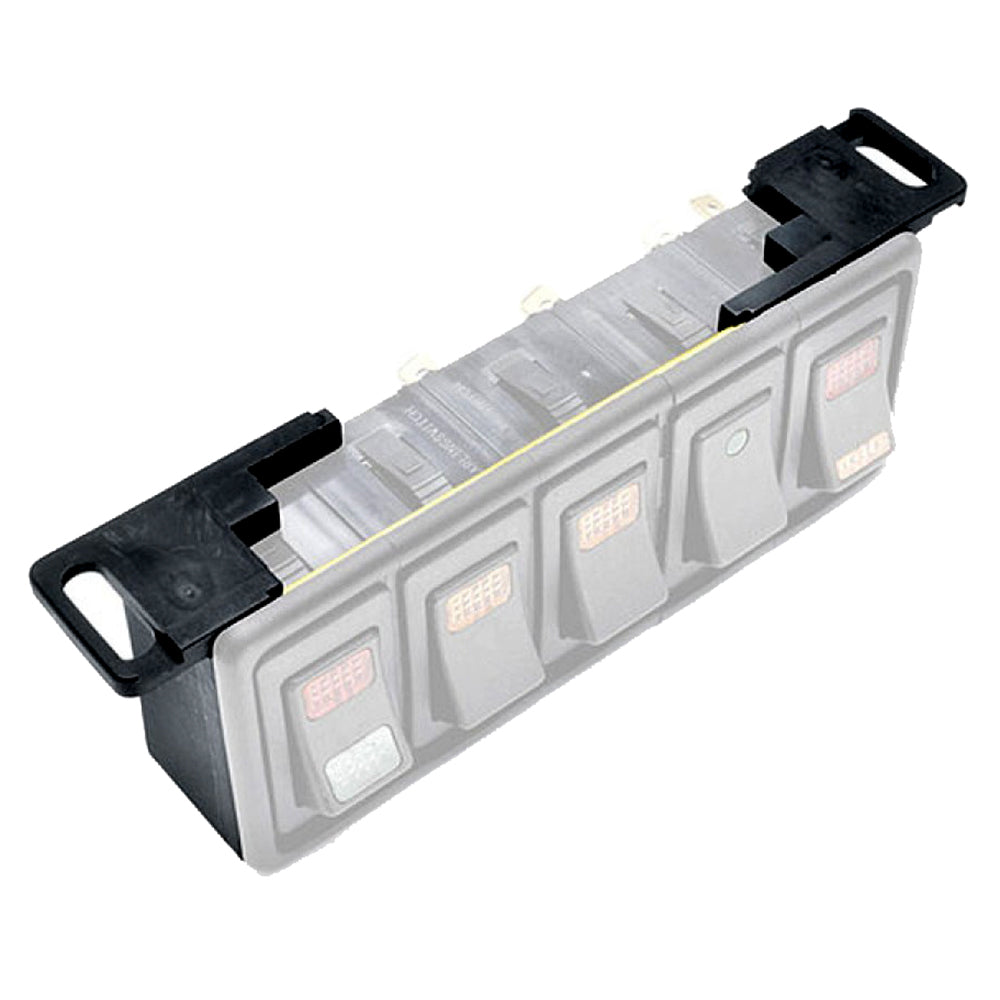

Cole Hersee Rocker Switch Mounting Bracket 87167-01-BP

The Cole Hersee Rocker Switch Mounting Bracket 87167-01-BP is a mounting kit designed for snap-in mounting of any regular size switch such as 56027, 58031, 58332, 58311, and 58312 series. The bezels can be arranged in a parallel array of any length. The bezels themselves can snap into a panel, or be mounted with the Bracket Mounting Kit. The height of the kit is 1.90" (48.3mm), and two units are 2.37"W x 2.30"H (60.2 x 58.4mm). The mounting hole in the panel should be 2.02"W x 1.90"H (51.3 x 48.3mm) for two bezels. Additional units require 1.03"W (26.2mm) of space each.

Product Features

• Designed for snap-in mounting of regular size switches
• Bezels can be arranged in a parallel array of any length
• Bezels can snap into a panel or be mounted with the Bracket Mounting Kit
• Height: 1.90" (48.3mm)
• Two units are 2.37"W x 2.30"H (60.2 x 58.4mm)
• Mounting hole in panel should be 2.02"W x 1.90"H (51.3 x 48.3mm) for two bezels
• Add 1.03"W (26.2mm) for each additional unit

Specifications

• Product Type: Rocker Switch Mounting Bracket
• Manufacturer: Cole Hersee
• Model Number: 87167-01-BP
• Height: 1.90" (48.3mm)
• Dimensions: Two units are 2.37"W x 2.30"H (60.2 x 58.4mm)
• Mounting Hole: 2.02"W x 1.90"H (51.3 x 48.3mm) for two bezels
• Additional Unit Width: 1.03"W (26.2mm)

Learn More

• Rocker Switch - Wikipedia
• Panel Mount - Wikipedia

Product: Cole Hersee 87167-01-BP Rocker Switch Mounting Bracket

Brand: Cole Hersee

Model: 87167-01-BP

Shipping Weight: 0.10 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 7.00 in
