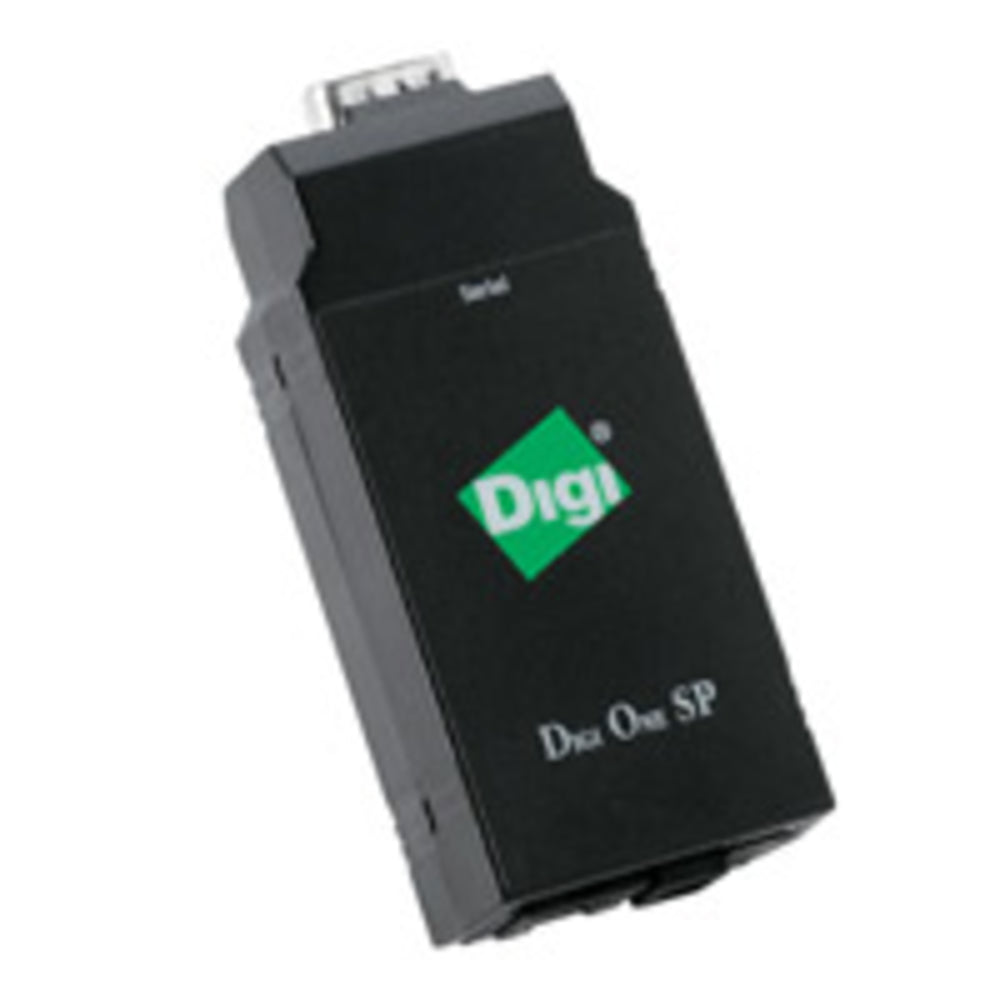

Digi 70001851 One SP Device Server RS-232/422/485 Ethernet

The Digi 70001851 One SP Device Server RS-232/422/485 Ethernet is a high-performance device networking solution that provides reliable and cost-effective network connectivity for virtually any type of serial device. With its small form factor, industry-leading low latency, and baud rates up to 230 Kbps, this serial server is ideal for applications requiring simple and easy-to-use data communications.

Features:

• High-performance device networking solution
• TCP/UDP Socket Services for broad device connectivity
• Switch selectable RS-232/422/485
• RealPort for COM/TTY port control and management
• Reverse Telnet for easy access to serial devices

The Digi One SP supports a wide range of protocols using serial tunneling, TCP/UDP connections, or Digi's patented RealPort COM port redirector for remote native COM port access. It features modem emulation, allowing equipment designed for modem access to communicate transparently across the Ethernet.

Installation of the Digi One SP is easy, whether done locally or remotely. The IP address can be configured using DHCP, ARP-Ping, or Setup, an application included with the installation CD that automatically detects all Digi One devices on the network. Users can auto-connect a serial device to a networked server using raw, Telnet, or rlogin. Advanced functions can be configured into an application using the web interface.

Specifications:

• Serial ports quantity: 1
• Serial interface type: RS-232/422/485
• Surge protection voltage: 4
• Ethernet LAN data rates: 10,100
• Throughput data rate: 230
• Ethernet LAN (RJ-45) ports: 1
• Dimensions (WxDxH): 43 x 94 x 23
• Weight: 65
• Supported network protocols: TCP/UDP, UDP Multicast, Telnet, Reverse Telnet, RFC2217, DHCP/RARP/ARP-Ping
• Compatible operating systems: AIX, HP-UX, Linux, SCO OpenServer 5, SCO OpenServer 6, Solaris Intel, Solaris SPARC, Windows XP, Windows Server 2003, Windows Server 2008, Windows Vista
• Link/Act LED: Y
• Operating temperature (T-T): 10 - 45
• Operating relative humidity (H-H): 5 - 90
• Input voltage: 9 - 30
• Power consumption: 0.5
• Safety: UL 60950, EN60950, CAN/CSA C22.2 No.60950
• Certification: FCC Part 15 Subpart B (Class A), EN55024, EN55022 (Class A), EN61000-3-2,3

Learn More:

• Serial Server
• Ethernet
• RS-232
• RS-422
• RS-485

Product: Digi 70001851 One SP Device Server RS-232/422/485 Ethernet

Brand: DIGI INTERNATIONAL

Model: 70001851

Shipping Weight: 1.77 lb

Shipping Height: 3.50 in

Shipping Width: 8.00 in

Shipping Length: 10.50 in
