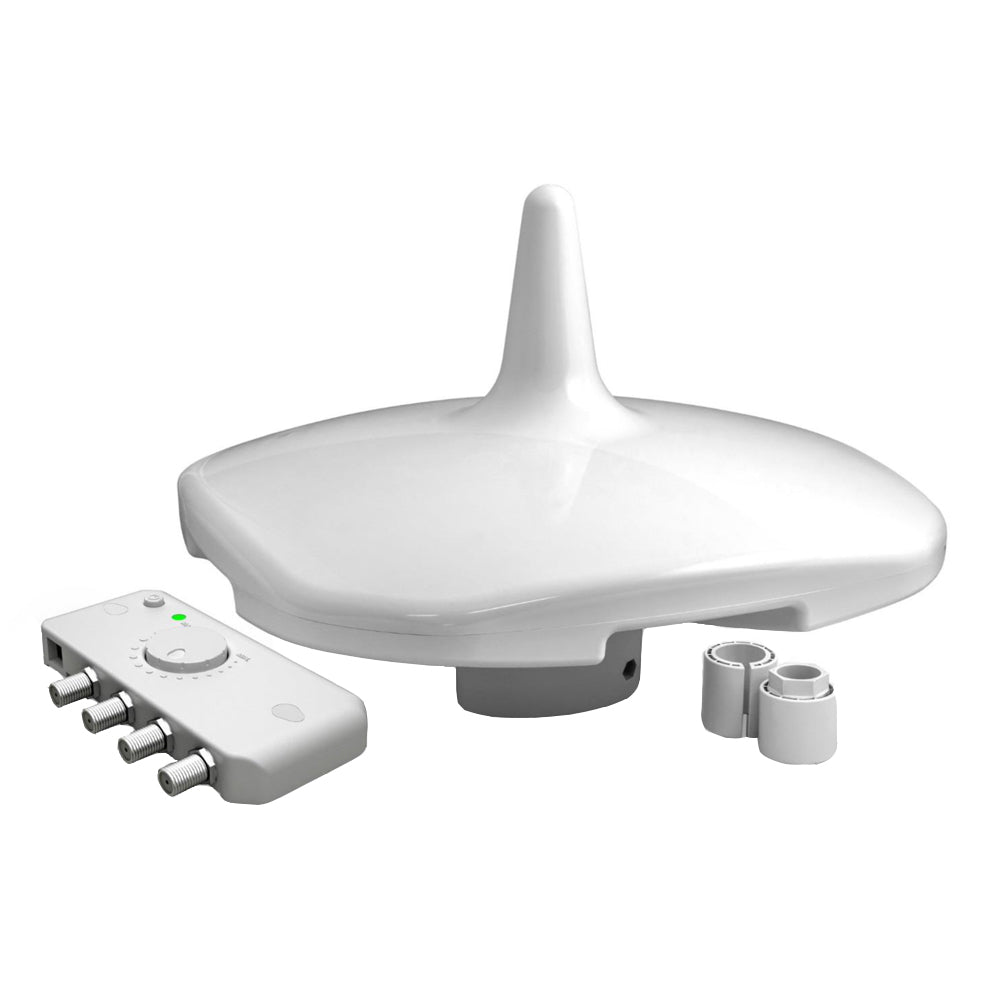

Digital Yacht ZDIGDTV100 Marine HDTV & FM Amplified Antenna

The Digital Yacht ZDIGDTV100 Marine HDTV & FM Amplified Antenna is a high-performance, omni-directional TV antenna that allows you to access free digital TV services on board. With its super-sensitive design and hi-gain amplifier, it can pick up even the weakest of signals, and it's omni-directional, so there's no complicated aligning. It also provides a feed for FM stereo radio.

Features:

• Very high-performance omni-directional marine TV antenna
• Global reception capability of latest DVB/HDTV signals
• TV and FM radio outlet
• Below deck mounted amplifier with -7dB to +29dB gain
• Pole or standard 1" adapter mounting capability
• Supplied with 10m coax
• Optional dual TV outlet amplifier
• Just 280mm diameter
• Exceptional performance for an omni-directional TV antenna

Designed for Easy Installation & Performance:

• Waterproof to IP68 and ultra-tough UV-resistant ABS casing
• Antenna supports vertical and horizontal polarization plus FM radio
• Adapters for antenna supplied to fit standard pole or 1" threaded mounts from 3rd parties
• Single RG6 coax feed to below deck amplifier
• Below deck amplifier and splitter provides -7 to 29dB gain adjustment. 12/24V
• Optional amplifier provides 2nd TV output for multi-cabin installation

Specifications:

• Frequency Range: 40-890MHz
• Impedance: 75 Ohms
• Antenna Gain: 30dB
• Amplifier Gain: -7 to 29dB
• Noise Figure: <3.5dB
• Power Supply: 12/24V DC
• Power Consumption: 20mA
• Dimensions: 280mm diameter x 180mm height
• Weight: 0.9kg
