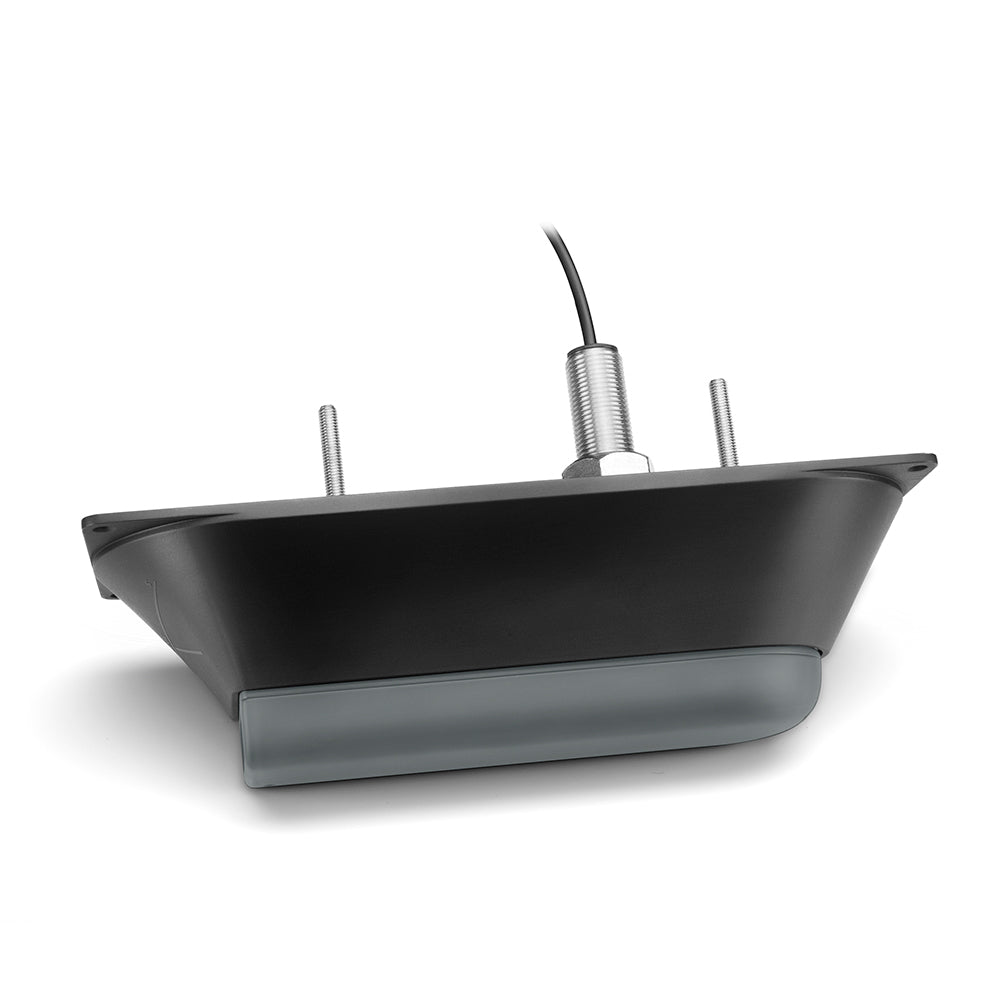

Garmin GT21-Thru-Hull Clearv/Chirp 600W Transducer

The Garmin GT21-TH Thru Hull Downvu Transducer is perfect for coastal and offshore fishermen who want traditional sonar and CHIRP ClearV scanning sonar with a stainless steel stem. This thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

The CHIRP ClearV element has a power rating of 500 W and operating frequencies of 260/455 kHz. The traditional sonar has a power rating of 600 W and operating frequencies of 50/200 kHz. It includes a built-in fast-response temperature sensor. This transducer is designed for hull deadrises less than 25 degrees.

Specifications:

• General:
• Model: 010-01962-10
• UPC: 753759152833
• Frequency:
• Traditional: 50/200 kHz
• ClearV CHIRP: 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
• Power:
• Traditional: 600 W
• ClearV: 500 W
• Beamwidth:
• Traditional: 40&deg/10&deg
• ClearV: 2.0&degx51&deg at 260 kHz and 1.4&degx29&deg at 455 kHz
• Maximum Depth:
• Traditional: 1,500 ft
• ClearV: 1,000 ft
• Depth/Speed/Temperature: Depth and Temperature
• Number of Pins: 8-pin
• Cable Length: 30 ft
• Supported Deadrise/Transom Angles: Up to 25&deg deadrise

What's in the Box:

• 8-pin transducer
• Fairing block
• Isolation plate and bushing
• Mounting hardware
• Installation instructions

Learn More:

For more information about Garmin GT21-Thru-Hull Clearv/Chirp 600W Transducer, you can visit the Garmin Wikipedia page.

Product: Garmin 010-01962-10 Gt21-Th S/S Thru-Hull Clearvü And Chirp 600W 50/200Khz

Brand: Garmin

Model: 010-01962-10

Shipping Weight: 8.40 lb

Shipping Height: 6.00 in

Shipping Width: 14.00 in

Shipping Length: 17.00 in
