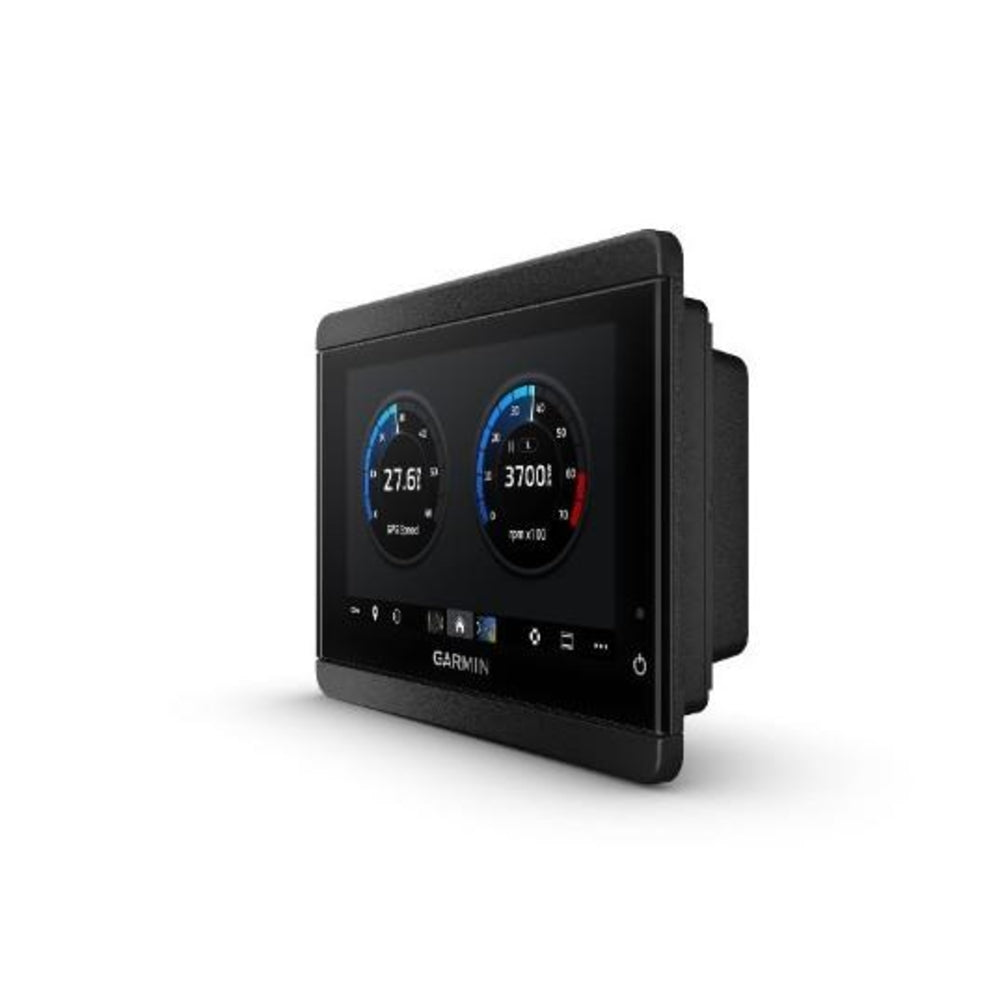

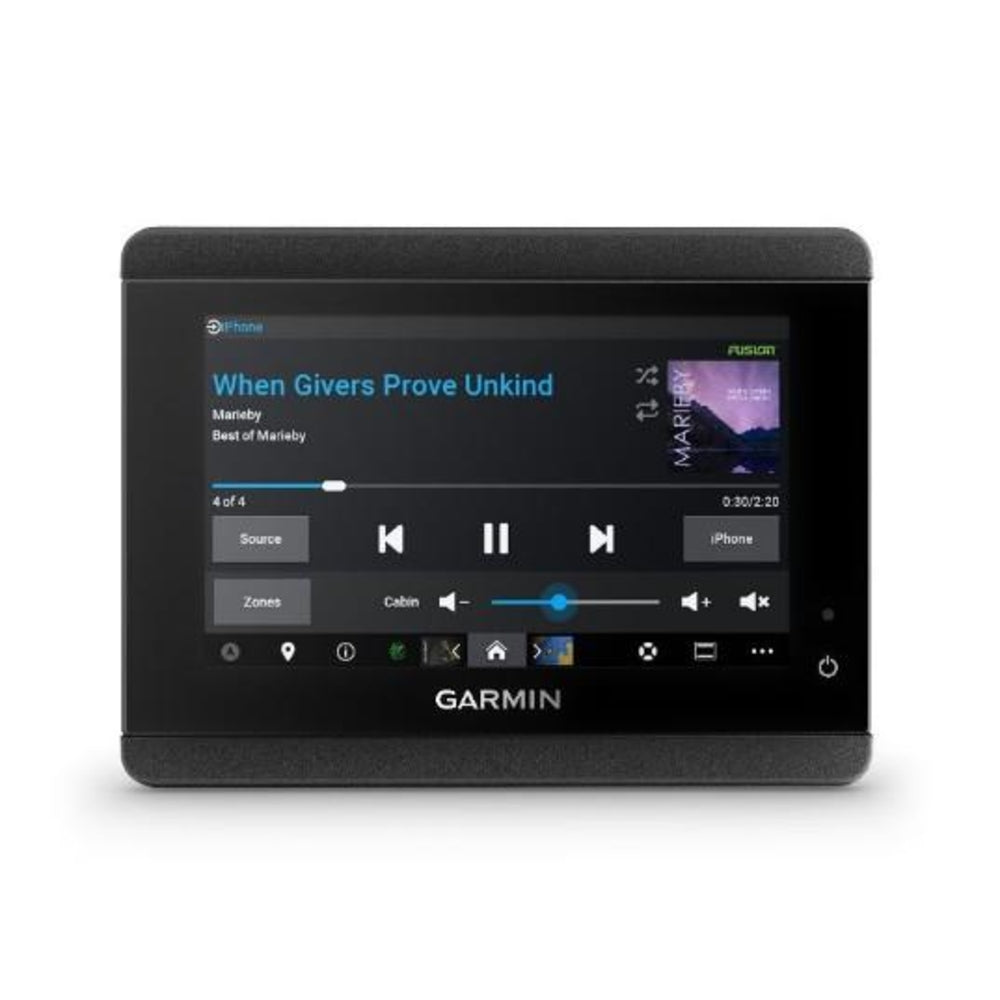

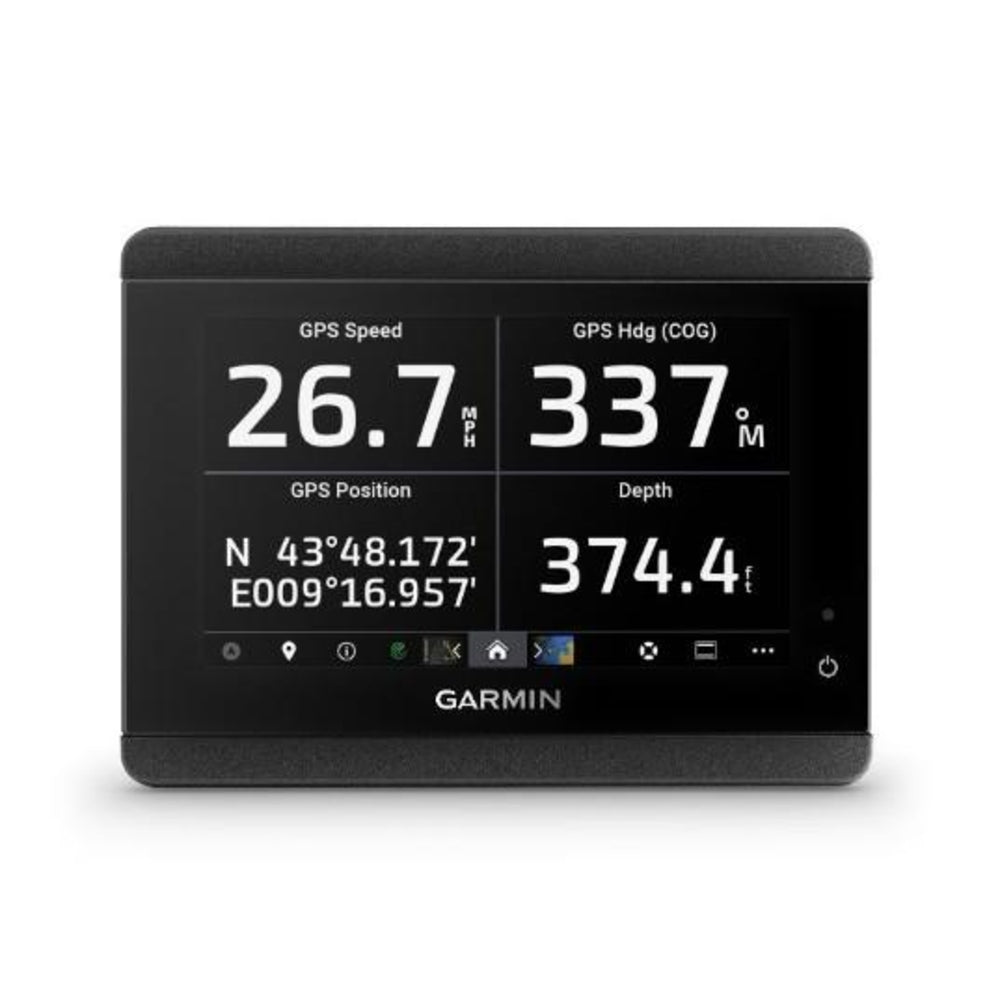

Garmin 010-02139-10 TD50 Touchscreen Display NMEA 2000 Compatible

Introducing the Garmin TD50 Touchscreen Display, a versatile and user-friendly system access solution for your marine vessel. With its sleek 5" edge-to-edge glass touchscreen display, this device offers a range of features and compatibility that will enhance your boating experience.

Key Features:

• Sleek 5" edge-to-edge glass touchscreen display
• Compatible with NMEA 2000r, EmpirBus, and Garmin Marine Networks
• Minimal footprint - installs almost anywhere
• Matches the look of GPSMAPr series chartplotters
• Easy plug-and-play network installation
• Flat- or flush-mounting options

Wherever you need extra system access on board, the 5" TD50 touchscreen display is the perfect solution. Whether you want to view engine and systems data or adjust settings for lights, climate control, entertainment, security sensors, autopilots, and more, the TD50 has got you covered.

The TD50 touchscreen display is incredibly easy to use and install. It can serve as an additional display at the helm station or provide below-deck networked access to switching functions and data monitoring throughout your vessel.

With compatibility for NMEA 2000, third-party OneHelm systems, EmpirBus, and the Garmin Marine Network, the TD50 offers seamless system connectivity. You can enjoy touchscreen control through an intuitive graphical interface, allowing you to access multiple switching and monitoring functions for electrical components on your boat.

The TD50 unit's slimline design, minimal footprint, and flat- or flush-mounting options enable installation in virtually any onboard location where auxiliary system access is needed. Its water rating of IPX7 ensures durability and reliability in harsh marine environments.

Specifications:

• Dimensions without sun cover (HxWxD): 4.1" x 4.5" x 2.0" (10.5 x 14.0 x 5.1 cm)
• Dimensions with sun cover (HxWxD): 4.5" x 5.7" x 2.2" (11.3 x 14.4 x 5.6 cm)
• Weight without sun cover: 11.6 oz. (328 g)
• Weight with sun cover: 13.2 oz. (375 g)
• Temperature range: from 5&deg to 131&deg F (from -15&deg to 55&deg C)
• Compass-safe distance: 7.9" (20 cm)
• Case material: Fully-gasketed polycarbonate
• Lens material: Glass with anti-glare and anti-fingerprint finish
• Water rating: IPX7
• Brightness: 1200 cd/m2 (NIT)
• Power usage: 5.9 W max
• NMEA 2000 input voltage: 9 to 16 Vdc
• NMEA 2000 LEN at 9 Vdc: NMEA 2000 LEN at 9 Vdc

Learn More:

• GPS Navigation Device
• Chartplotter
• NMEA 2000

Product: Garmin 010-02139-10 Td50 Touchscreen Display Nmea 2000 Compatible

Brand: Garmin

Model: 010-02139-10

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
