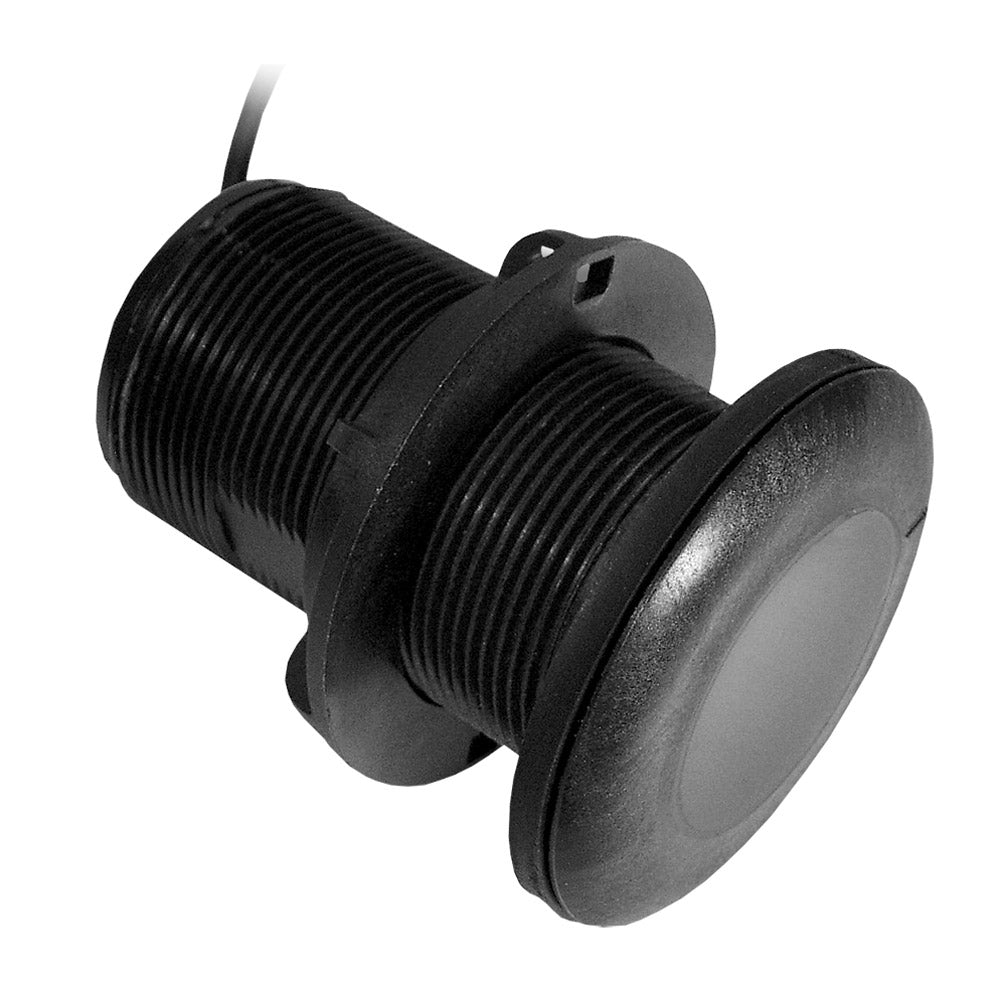

GARMIN ELEC. 010-10218-22 Xdcr 77/200Khz /T Pl Lp 20Tilt 8

The GARMIN ELEC. 010-10218-22 Xdcr 77/200Khz /T Pl Lp 20Tilt 8 is a high-quality tilted element™ thru-hull transducer designed to provide accurate depth readings for cruising powerboats and sailboats. With its innovative design and advanced features, this transducer is a reliable choice for boaters looking to optimize their echosounding capabilities.

Minimize Your Drag

The P19 model has been the standard in low-profile transducers for many years. Its large sensitive ceramics allow deep echosounding up to 206M (700'), ensuring you can explore the depths with confidence. The transducer's nearly flush design minimizes drag, with only 5mm (2/10") of the housing extending outside of the hull. The plastic P19 provides a vertical beam without the need for a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. This unique design results in a vertical beam that delivers excellent echo returns, enabling more accurate depth readings.

Features

• Depth only or Depth and temperature
• Fixed 20&deg tilted versions for 16&deg to 24&deg hull deadrise
• Right angle cable exit offers low headroom and protection when transducer is stepped on
• Included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Housings are ABYC H-27 compliant
• Optional temperature sensor
• Plastic housing
• Boat Size: Up to 9M (30')

Specifications

• Transducer Type: Tilted Element™ Thru-Hull
• Frequency: 77/200Khz
• Beamwidths: 45&deg/15&deg
• Maximum Depth: 206M (700')
• Compatibility: Suitable for cruising powerboats and sailboats

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More

• Tilted Element Transducer

Product: Garmin 010-10218-22 XDcr 77/200Khz Tilted Element Thru-Hull

Brand: Garmin

Model: 010-10218-22

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
