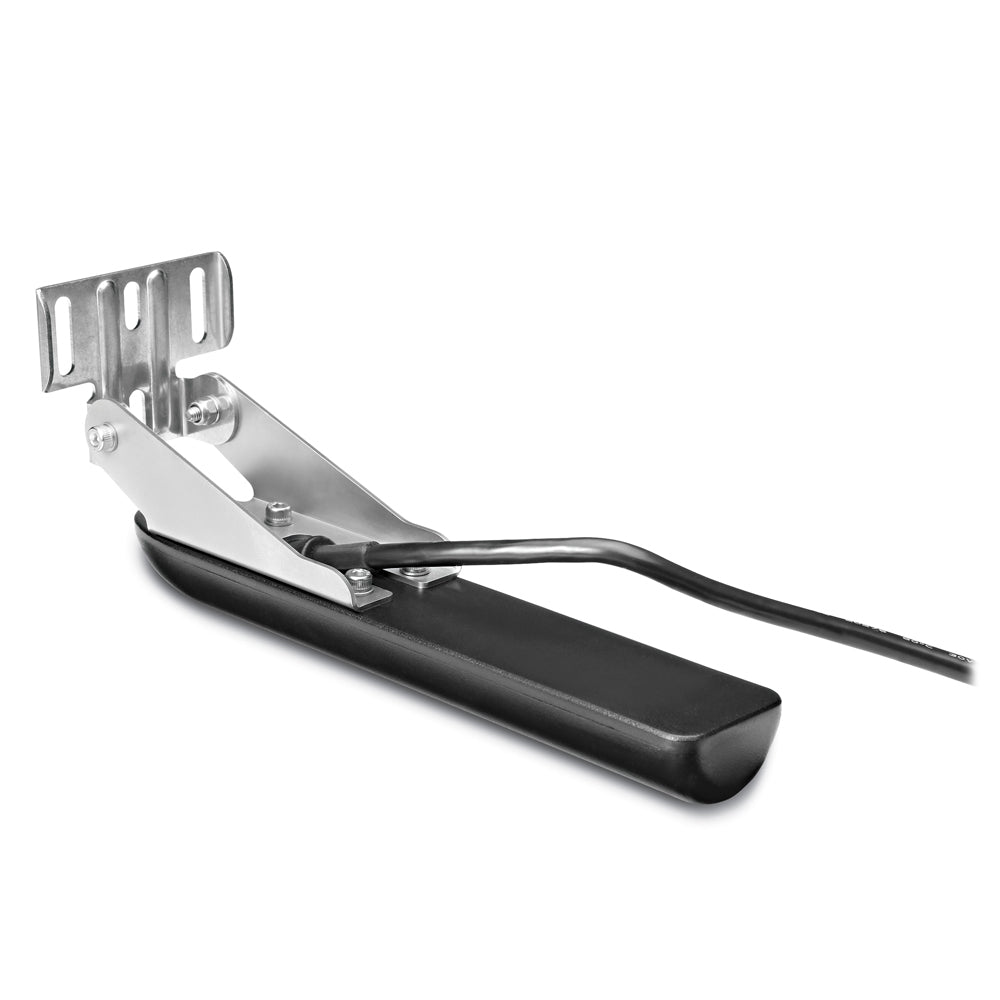

Garmin GT30-TM 12-Pin Transom Mount Transducer - DownVu/SideVu 010-01961-00

The Garmin GT30-TM Transom is a high-quality transducer designed for shallow water fishermen who want CHIRP ClearVü and CHIRP SideVü scanning sonar capabilities. This transom mount transducer consistently displays clear definition of objects, structure, and fish below and to each side of the boat, making it an essential tool for any angler.

With a power rating of 500W per element (1,500W total), this transducer provides exceptional performance. It has a depth capability of 750ft for ClearVü scanning sonar and 500ft left and right for SideVü scanning sonar. The operating frequency is 455/800kHz, allowing for precise and accurate sonar readings.

The Garmin GT30-TM Transom features a 20ft transducer cable with a built-in fast response temperature sensor. This sensor provides valuable temperature data to help you understand the behavior of fish in different water conditions. The transducer is designed for a 0 to 70 degree transom angle, ensuring optimal performance in various mounting configurations.

Pair the Garmin GT30-TM Transom with your GCV™ 10 black box sonar for a complete and powerful fishfinding system. The transducer comes with installation instructions, so you can easily set it up without damaging your boat.

Product Features:

• CHIRP ClearVü and CHIRP SideVü scanning sonar
• Clear definition of objects, structure, and fish below and to each side of the boat
• Power rating: 500W per element (1,500W total)
• Depth capability: 750ft (ClearVü), 500ft left and right (SideVü)
• Operating frequency: 455/800kHz
• 20ft transducer cable with built-in fast response temperature sensor
• 0 to 70 degree transom angle
• Compatible with GCV™ 10 black box sonar
• Easy installation with included instructions

Specifications:

• General:
• ClearVü/SideVü CHIRP frequency: 455kHz (425-485kHz) & 800kHz (790-850kHz)
• Power: ClearVü/SideVü 500W
• Beamwidth:
• ClearVü: 1.4&degx53&deg at 455kHz, 0.8&degx30&deg at 800kHz
• SideVü: 1.1&degx53&deg at 455kHz, 0.7&degx30&deg at 800kHz
• Maximum depth:
• ClearVü: 750ft
• SideVü: 500ft
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 20ft
• Supported deadrise/Transom angles: 0&deg-70&deg degree transom

Learn More:

For more information about transducers, please visit Transducer on Wikipedia.

For more information about CHIRP sonar technology, please visit CHIRP Sonar on Wikipedia.

Product: Garmin GT30-TM 12-Pin Transom Mount Transducer - DownVu/SideVu 010-01961-00

Brand: Garmin

Model: 010-01961-00

Shipping Weight: 1.80 lb

Shipping Height: 3.00 in

Shipping Width: 7.00 in

Shipping Length: 9.00 in
