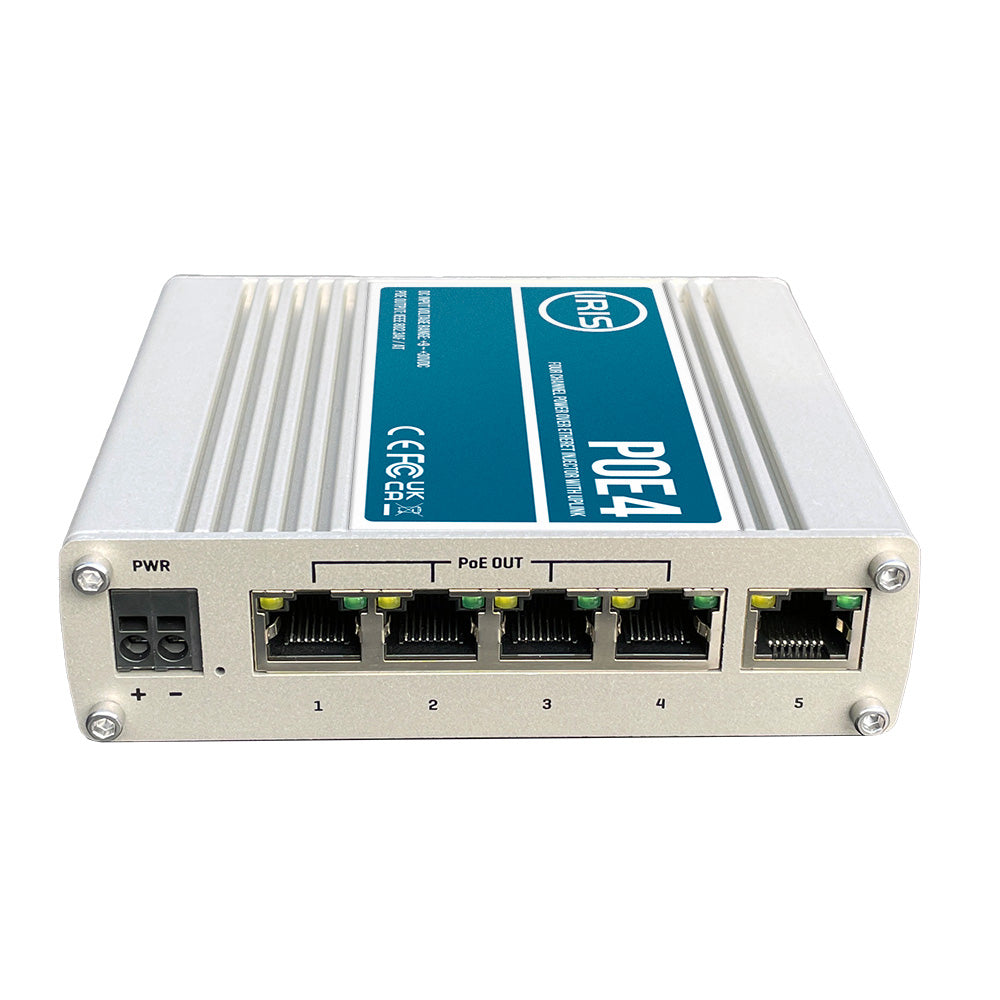

Iris Innovations Poe4V2 Four Channel Uplink Power Over Ethernet Switch

The Iris Innovations Poe4V2 Four Channel Uplink Power Over Ethernet Switch is a compact and robust switch that provides power over Ethernet to your devices. It is IEEE802.3af and 3at compliant, making it suitable for a wide range of applications. With a wide input voltage range of 9-30VDC, this switch is perfect for powering devices from battery sources such as boats and vehicles.

The Poe4V2 features four PoE ports and one passive uplink port, allowing you to connect and power up to four devices with a power budget of 60W in total. Each port can provide up to 30W of power, enabling you to power devices at different wattage requirements. You can connect devices up to a 100-meter cable length, providing flexibility in your installation.

Installation is simplified with the Poe4V2 as only a single network cable is required to connect and power your devices, reducing cost and adding convenience. The switch is plug and play, requiring no configuration. Its compact and robust housing ensures durability in various environments.

Features:

• Compact and robust housing
• Wide input voltage range of 9-30VDC
• Perfect for boats and vehicles
• 60W power budget
• IEEE802.3af / 3at compliant
• Up to 30W per channel
• Plug and play operation - no configuration required
• 48VDC PoE output voltage to your devices
• Provides power to devices up to a 100-meter cable length
• Simplifies installations

Specifications:

• Weight & Dimensions: 0.350 Kg / 115 mm x 32 mm x 95 mm
• Material: Aluminium, soft anodized
• PoE Ports / Standard: Ports 1-4 IEEE802.3af / 802.3at + 1 Uplink Port (non PoE)
• Total PoE Budget: 60W across 4 PoE Ports
• Maximum Cable Length: 100 Meters
• Approvals / Standards: CE, UKCA, FCC, IC, REACH, RoHS, WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002 Section 9 & 10
• Input Voltage Range: 9-30 VDC
• Output Voltage: 48 VDC
• Power Consumption Idle: 0.8W / Max: 2.2W / PoE Max: 106W
• Environmental: IP30 - Install in a dry dust-free environment. Do not expose to moisture.

Learn More:

• Power over Ethernet
• IEEE 802.3af
• IEEE 802.3at
• Plug and play

Product: Iris Innovations POE4V2 Four Channel PoE Switch

Brand: Iris Innovations

Model: POE4V2

Shipping Weight: 1.15 lb

Shipping Height: 2.00 in

Shipping Width: 5.00 in

Shipping Length: 7.00 in
