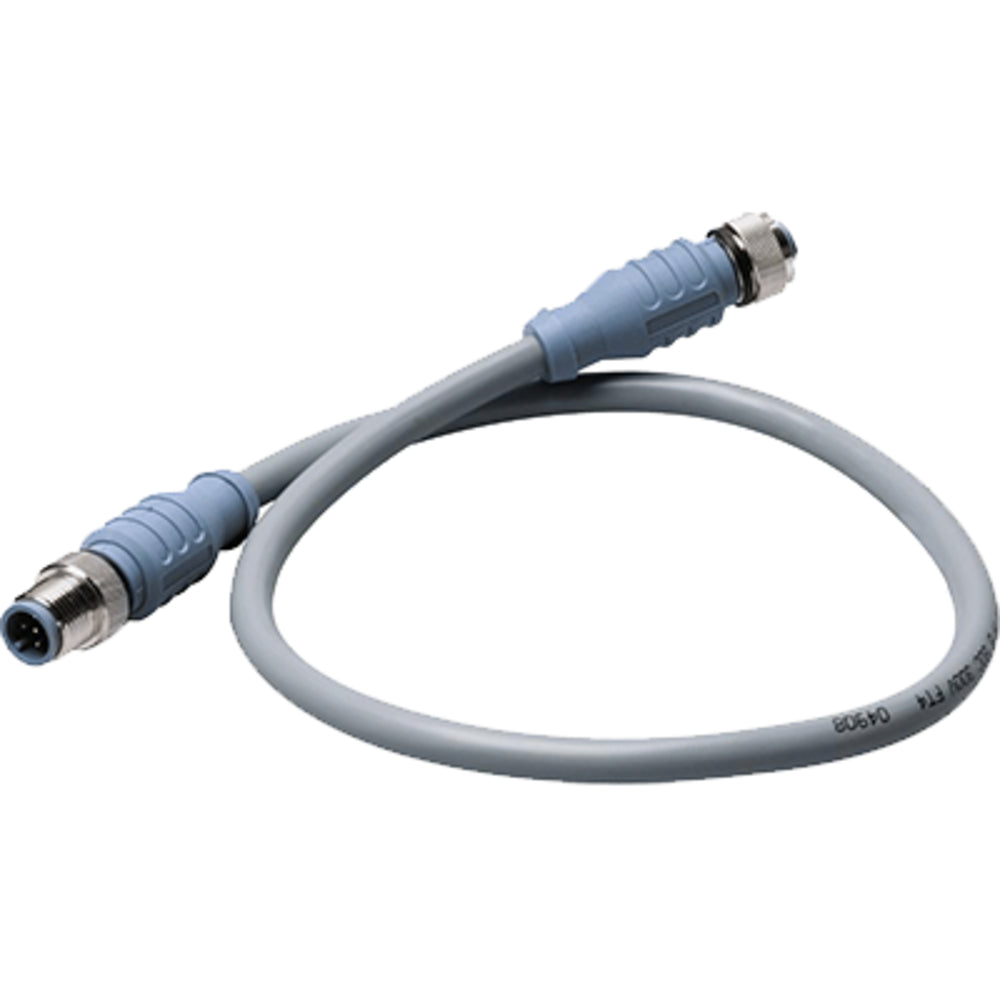

Maretron 0.5m Micro Cable Male-Female Connector (CM-CG1-CF-00.5)

The Maretron 0.5m Micro Cable Male-Female Connector is a high-quality double-ended cordset designed for reliable data and power transfer. With its durable construction and excellent performance, this connector is suitable for various applications.

Product Features:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59"
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40° C to 80° C (-40° F to 176° F)
• Approvals: UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V; CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4; NMEA: NMEA 2000 Approved

Specifications:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59"
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40° C to 80° C (-40° F to 176° F)
• Approvals: UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V; CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4; NMEA: NMEA 2000 Approved

Learn More:

• Thermoplastic
• Brass
• Gold
• Nickel
• Outer Jacket
• HDPE
• PVC
• Shielding
• IEC IP68
• NEMA Enclosure Types
• UL
• CSA
• NMEA 2000

Product: Maretron 0.5m Micro Cable Male-Female Connector (CM-CG1-CF-00.5)

Brand: Maretron

Model: CM-CG1-CF-00.5

Shipping Weight: 0.10 lb

Shipping Height: 1.00 in

Shipping Width: 5.00 in

Shipping Length: 5.00 in
