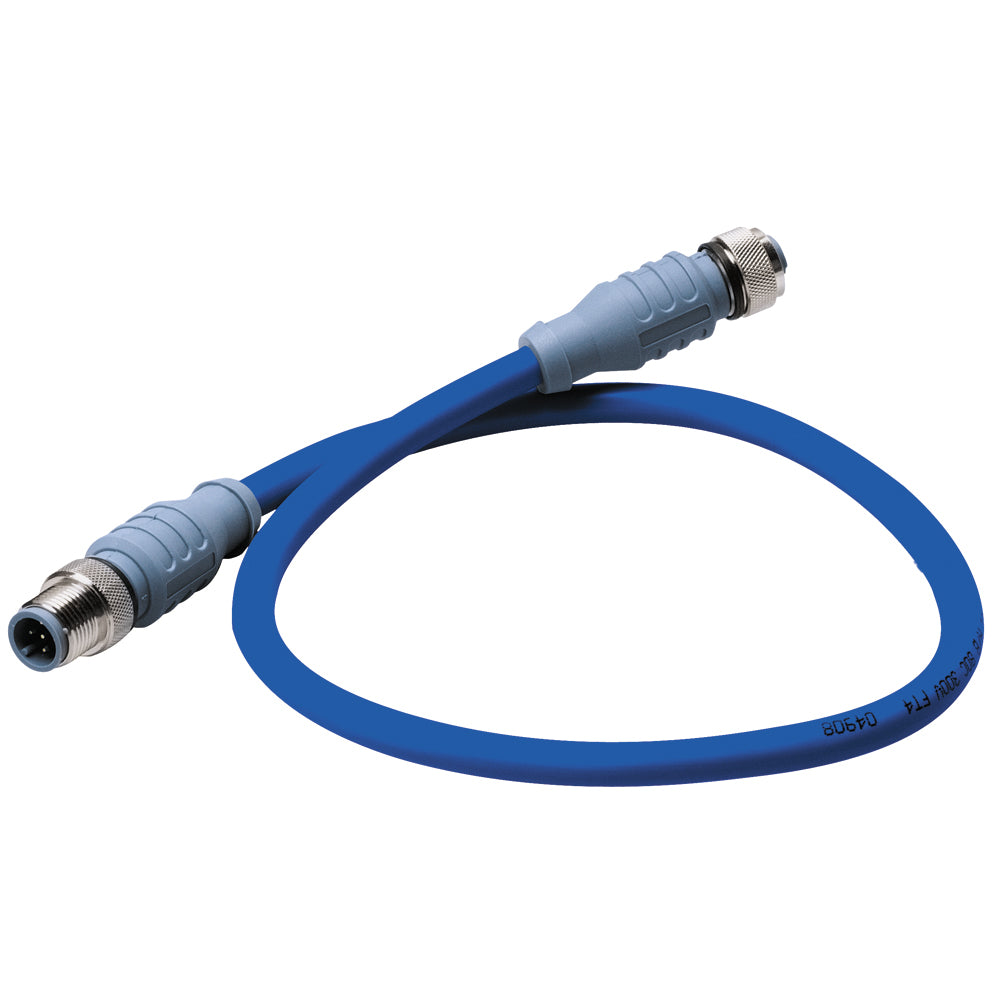

Maretron 1M Blue Mid Cable DM-DB1-DF-01.0 - Male to Female Connector

The Maretron Blue Mid 1 Meter Cable (Model: DM-DB1-DF-01.0) is a reliable and durable cable designed for marine environments. With its rugged, IP68 rated connectors, this cable ensures continued connection integrity even in harsh conditions. It is suitable for trunk or drop lines and offers a secure connection and simple installation.

Key Features:

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

The Maretron 1M Blue Mid Cable DM-DB1-DF-01.0 features a double-ended cordset design, ensuring a secure and error-free connection. The connectors are waterproof, allowing for continued operation even when submerged in the bilge.

Specifications:

• Mechanical:
• Contact Carrier Mat/Color: Thermoplastic PUR/Blue
• Molded Body Mat/Color: Thermoplastic PUR/Blue
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59 in
• Electrical:
• Current rating: 4.0 Amps
• Voltage rating: 1250v
• Cable:
• Outer Jacket Mat/Color: PVC/Blue
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)
• Environmental:
• Protection class: IEC IP68, NEMA 1,3,4,6P
• Temperature rating: -40&degC to 80&degC (-40&degF to 176&degF)
• Approvals:
• (Cable) ULPLTC 75&degC Sunlight Resistant E90625, AWM 80&degC 300V
• (Cable) CSACMX-OUTDOOR-CMG LL54185 75&degC, AWM I/II A/B 80C 300V FT4
• NMEA 2000® Approved
• IEC 61162-3

Learn More

• Marine Environment - Learn more about marine environments on Wikipedia. (Popup Link)
• IP Code - Explore the IP Code on Wikipedia. (Popup Link)
• NMEA 2000® - Find out more about NMEA 2000® on Wikipedia. (Popup Link)
• IEC 61162-3 - Learn about IEC 61162-3 on Wikipedia. (Popup Link)

Product: Maretron 1M Blue Mid Cable DM-DB1-DF-01.0 - Male to Female Connector

Brand: Maretron

Model: DM-DB1-DF-01.0

Shipping Weight: 0.30 lb

Shipping Height: 1.00 in

Shipping Width: 6.00 in

Shipping Length: 6.00 in
