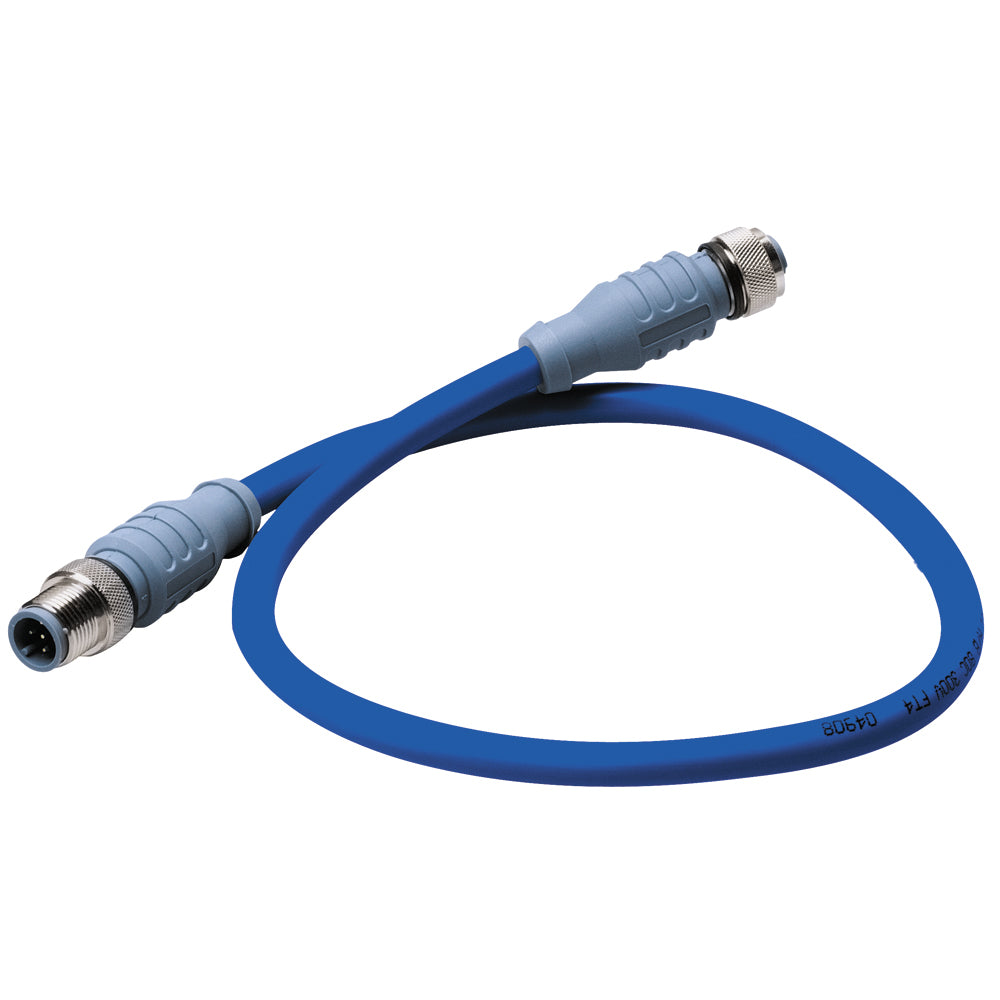

Maretron DM-DB1-DF-02.0 Blue Mid Cable 2M Male to Female Connector

The Maretron DM-DB1-DF-02.0 Blue Mid Cable is a high-quality double-ended cordset designed for trunk or drop lines in marine environments. With its rugged, IP68 rated connectors, this cable ensures continued connection integrity even in harsh conditions. It is optimized for voltage drop sensitive networks, making it ideal for long runs.

Product Features:

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Specifications:

• Mechanical
• Contact Carrier Mat/Color: Thermoplastic PUR/Blue
• Molded Body Mat/Color: Thermoplastic PUR/Blue
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59 in
• Electrical
• Current rating: 4.0 Amps
• Voltage rating: 1250v
• Cable
• Outer Jacket Mat/Color: PVC/Blue
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)
• Environmental
• Protection class: IEC IP68, NEMA 1,3,4,6P
• Temperature rating: -40&degC to 80&degC (-40&degF to 176&degF)
• Approvals
• (Cable) ULPLTC 75&degC Sunlight Resistant E90625, AWM 80&degC 300V
• (Cable) CSACMX-OUTDOOR-CMG LL54185 75&degC, AWM I/II A/B 80C 300V FT4
• NMEA 2000r Approved
• IEC 61162-3

Learn More:

• IP Code on Wikipedia
• NMEA 2000 on Wikipedia
• IEC 61162 on Wikipedia

Product: Maretron DM-DB1-DF-02.0 Blue Mid Cable 2M Male to Female Connector

Brand: Maretron

Model: DM-DB1-DF-02.0

Shipping Weight: 0.60 lb

Shipping Height: 1.00 in

Shipping Width: 4.00 in

Shipping Length: 6.00 in
