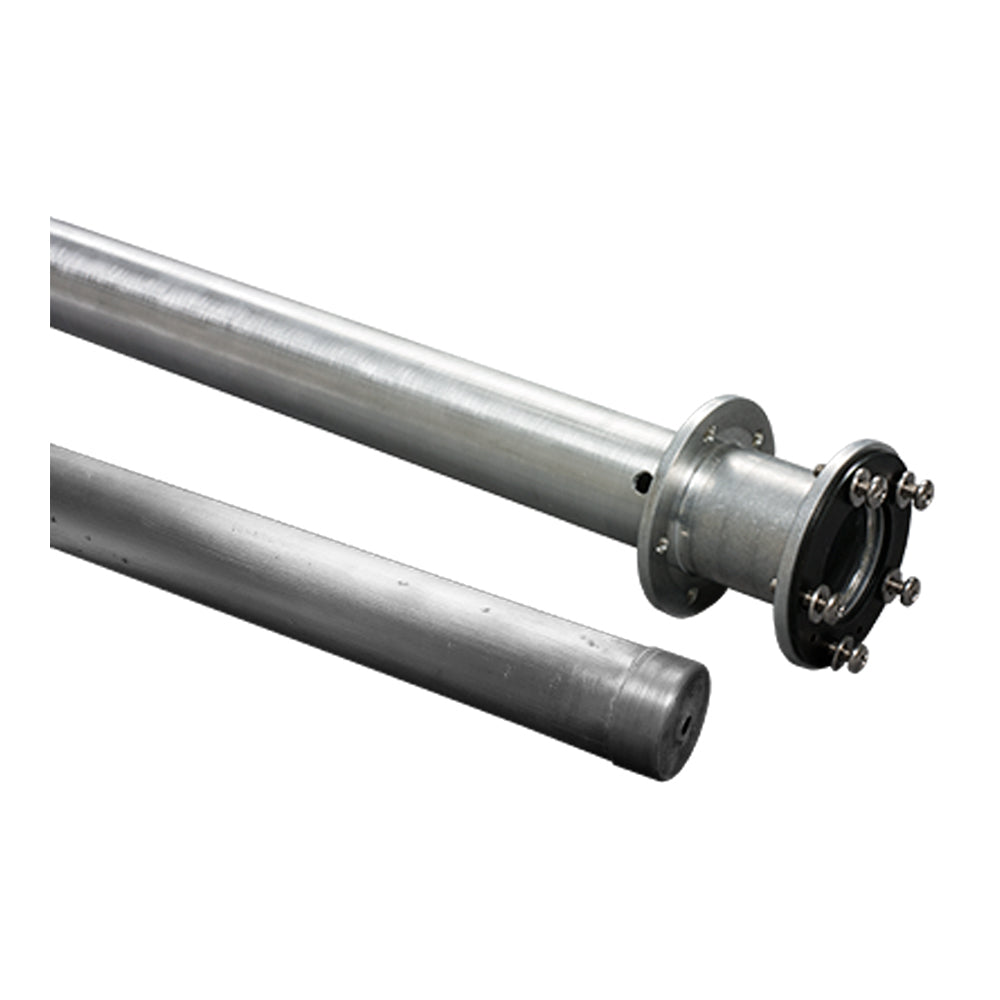

Maretron Tftdbe-5H Dead Band Eliminator - SAE 5-Bolt Pattern Focus Tube

The Maretron Tftdbe-5H Dead Band Eliminator is a high-quality focus tube designed to enhance the performance of the TLM100/TLM150 ultrasonic tank level monitors. This focus tube is specifically engineered for vessels with non-displacement hulls, allowing for accurate level measurement even at up to 15&deg of pitch or roll, compared to the standard 6&deg pitch or roll for the sensor alone.

Featuring an SAE 5-bolt pattern, this focus tube is compatible with a wide range of vessels. It is designed to raise the TLM100/TLM150 sensors 2" above the top of the tank, eliminating the 2" deadband of the sensors and enabling precise level measurement with fluid levels all the way to the top of the tank.

Key Features:

• Enhances the performance of TLM100/TLM150 ultrasonic tank level monitors
• Allows level measurement on vessels with non-displacement hulls at up to 15&deg of pitch or roll
• Raises the sensors 2" above the top of the tank, eliminating the 2" deadband
• SAE 5-bolt pattern for easy installation

Specifications:

• Product Type: Focus Tube with Dead Band Eliminator
• Pattern: SAE 5-Bolt
• Compatibility: TLM100/TLM150 ultrasonic tank level monitors
• Pitch/Roll Range: Up to 15&deg
• Height Increase: 2"

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to .

Learn More

• Ultrasonic Testing on Wikipedia
• Level Sensor on Wikipedia

Product: Maretron Tftdbe-5H Dead Band Eliminator - SAE 5-Bolt Pattern Focus Tube

Brand: Maretron

Model: TFTDBE-5H

Shipping Weight: 2.00 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 43.00 in
