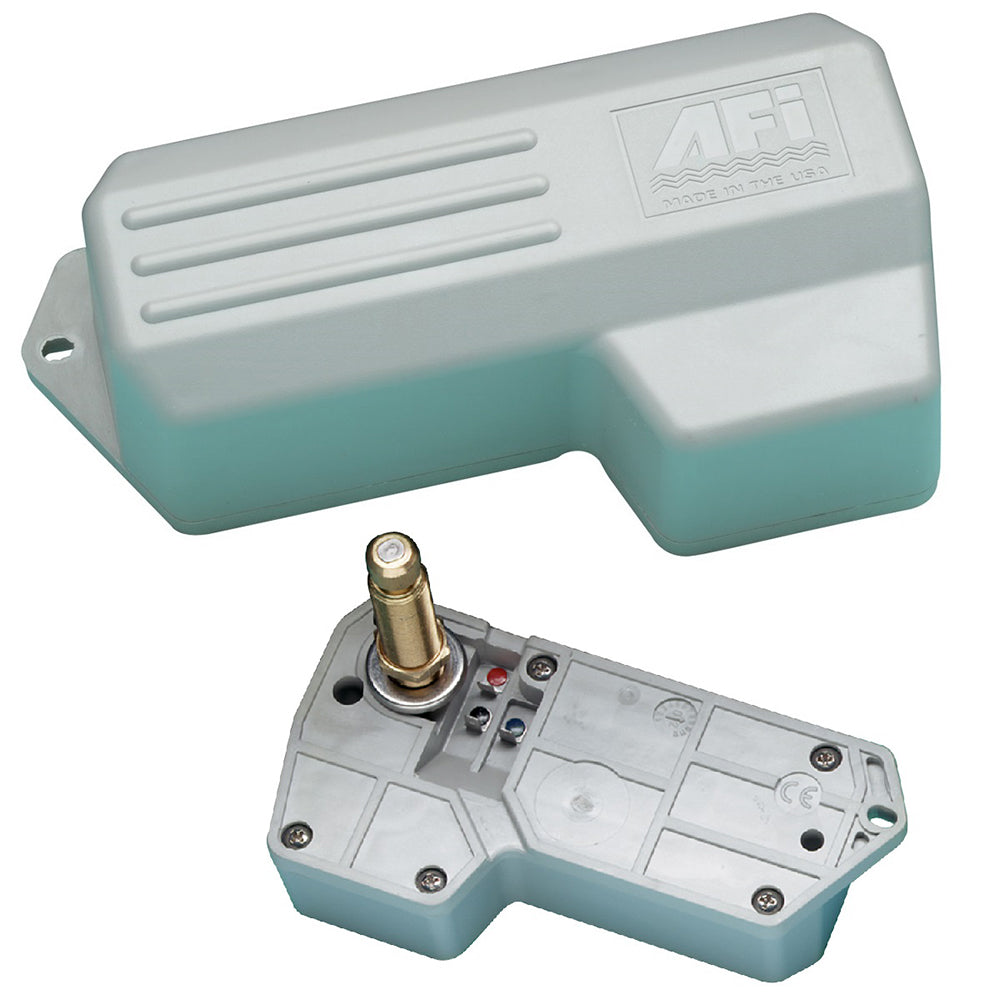

Marinco AFI 37110 Wiper Motor 1000 110 - 2.5" Nicro BEP Marine

The Marinco AFI 37110 Wiper Motor 1000 110 - 2.5" Nicro BEP Marine is a high-quality wiper motor designed for marine applications. It features a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic, ensuring durability and longevity even in harsh marine environments. This wiper motor is capable of powering an 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degrees or less, or a 16" Deluxe arm and 16" Deluxe blade combination at a sweep set of 110 degrees.

Features:

• Factory pre-set sweep of 80 degrees or 110 degrees adjustable to 50 degrees, 65 degrees, 80 degrees, or 110 degrees
• 0.625" diameter shaft (16 mm)
• 12-volt heavy-duty motor with anti-rotation drive shaft
• Knurled drive shaft and solid brass arm drive nut
• Coast to park with adjustable right or left self-parking
• Retail version includes 5 amp fuse and holder (on/off switch not included)
• RF shielded circuitry
• Weight: 1.75 lbs
• Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
• Measures approximately 6.625" L x 3.375"W x 2" D
• Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
• Stall current: 9.8-10.0 amps
• No load current: 0.8-1.2 amps+

Specifications:

• Product: Marinco AFI 37110 Wiper Motor 1000 110 - 2.5" Nicro BEP Marine
• Shaft Length: 2.5"
• Waterproof Housing: Yes
• Material: UV stabilized, high-temperature, high-impact thermoplastic
• Arm and Blade Compatibility: 18" Deluxe arm and 18" Deluxe blade combination (80&deg or less), 16" Deluxe arm and 16" Deluxe blade combination (110&deg)
• Shaft Diameter: 0.625" (16 mm)
• Motor Voltage: 12V
• Motor Type: Heavy-duty
• Drive Shaft: Anti-rotation
• Drive Shaft Type: Knurled
• Arm Drive Nut: Solid brass
• Self-Parking: Adjustable right or left
• Fuse and Holder: Included (5 amp)
• RF Shielded: Yes
• Weight: 1.75 lbs
• Dimensions: Approximately 6.625" L x 3.375" W x 2" D
• Stall Torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
• Stall Current: 9.8-10.0 amps
• No Load Current: 0.8-1.2 amps+

Learn More

• Wiper Motor on Wikipedia

Product: Marinco AFI 37110 Wiper Motor 1000 110 - 2.5" Nicro BEP Marine

Brand: Marinco

Model: 37110

Shipping Weight: 2.50 lb

Shipping Height: 6.00 in

Shipping Width: 6.00 in

Shipping Length: 10.00 in
