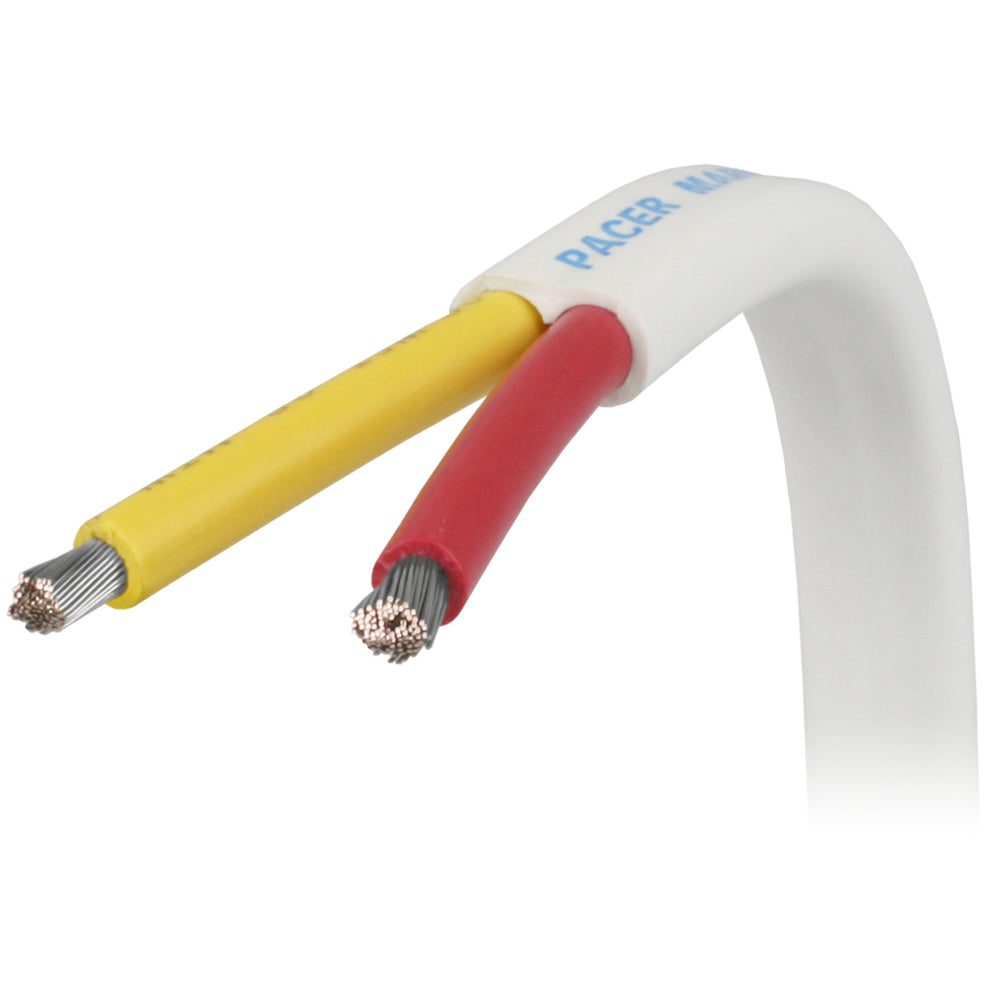

Pacer Group 8/2 AWG Red/Yellow Safety Duplex Cable 50ft - W8/2RYW-50
Duplex Boat Cable is used in low voltage AC applications as well as DC circuits. Pacer manufactures 8 AWG Duplex boat cable in-house in the USA for quality. First, the cable is built from finely stranded, Type III tinned copper conductors. These conductors allow for flexibility and help to prevent corrosion. The PVC jacket helps 8 AWG Duplex Boat Cable to be flexible while preventing moisture from accumulating. During the extrusion process, the spaces between wires are filled, leaving no space for moisture or air to accumulate. After that, a talcum powder coating is given to the interior wires. This coating is used to allow the outer jacket to be easily removed. Just another reason 8 AWG Duplex boat cable is perfect for marine use. Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA.
Features:
- Extruded exterior cable insulation with no gaps
- Highly flexible color-coded wire insulation
- Stranded, tinned copper conductors
- Annealed Finely Stranded Tinned Copper ASTM B172 Class K
- Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture
Technical Specifications:
- Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K
- Insulation -20 °C to 105 °C flexible, color-coded PVC
- Voltage Rating - 600-V
- Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture
- No. of Conductors - 2
- Type of Cable - Duplex
Learn More:
Click on the links below to learn more about related topics on Wikipedia:
-
Low Voltage (onclick=window.open(this.href, 'popup', 'height=600,width=800'); return false;)
-
AC Circuits (onclick=window.open(this.href, 'popup', 'height=600,width=800'); return false;)
-
DC Circuits (onclick=window.open(this.href, 'popup', 'height=600,width=800'); return false;)
-
Tinned Copper (onclick=window.open(this.href, 'popup', 'height=600,width=800'); return false;)
-
PVC (onclick=window.open(this.href, 'popup', 'height=600,width=800'); return false;)
-
UL (Safety Organization) (onclick=window.open(this.href, 'popup', 'height=600,width=800'); return false;)
-
ABYC (American Boat and Yacht Council) (onclick=window.open(this.href, 'popup', 'height=600,width=800'); return false;)
-
NMMA (National Marine Manufacturers Association) (onclick=window.open(this.href, 'popup', 'height=600,width=800'); return false;)
Product: Pacer Group 8/2 AWG Red/Yellow Safety Duplex Cable 50ft - W8/2RYW-50
Brand: Pacer Group
Model: W8/2RYW-50
Shipping Weight: 10.65 lb
Shipping Height: 7.00 in
Shipping Width: 7.00 in
Shipping Length: 7.00 in
