DT Deutsch Plug Repair Kit - 14-18 AWG (12 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 12
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55&degC to 125&degC

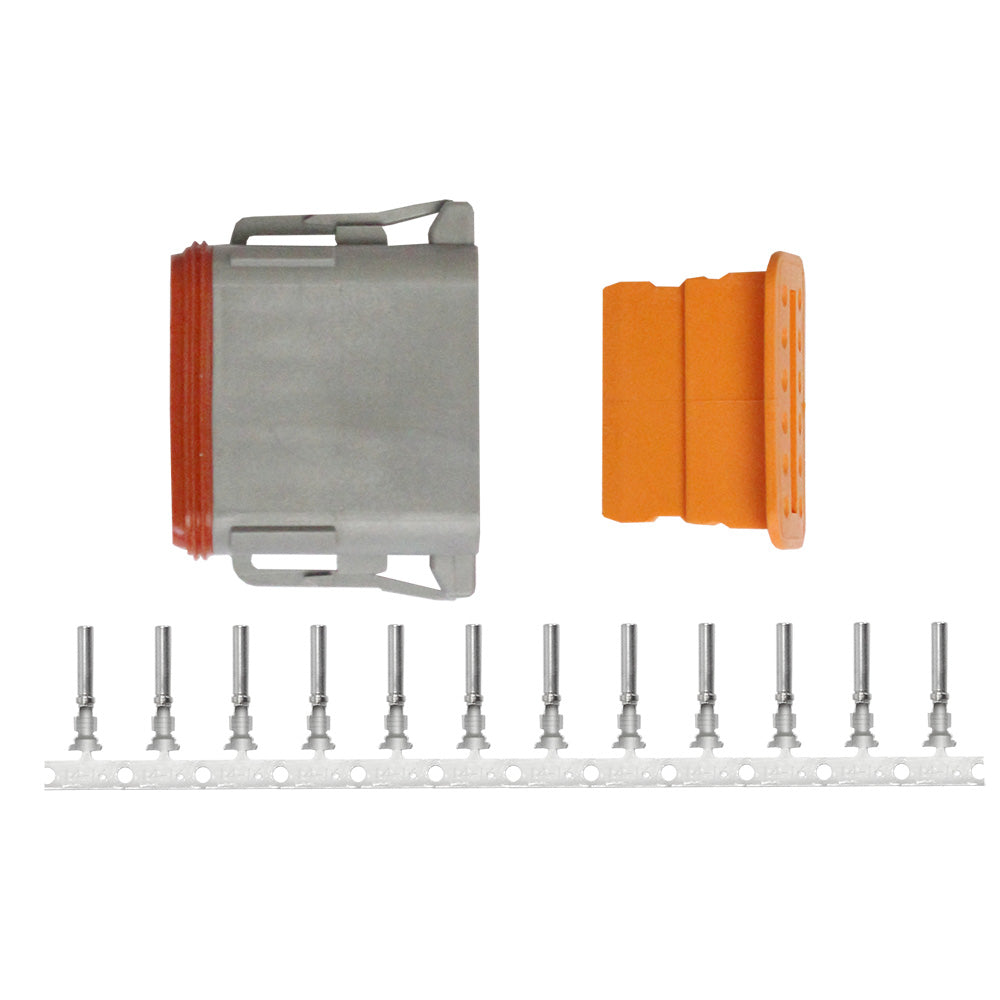

Contents:

• (1) 12 pos. plug
• (1) 12 pos. wedge lock
• (14) sockets
• (6) cavity plugs

Learn More

Deutsch Connector on Wikipedia

Product: Pacer TDT06F-12RS DT Deutsch Plug Repair Kit 14-18 AWG 12 Position

Brand: Pacer Group

Model: TDT06F-12RS

Shipping Weight: 0.10 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 5.00 in
