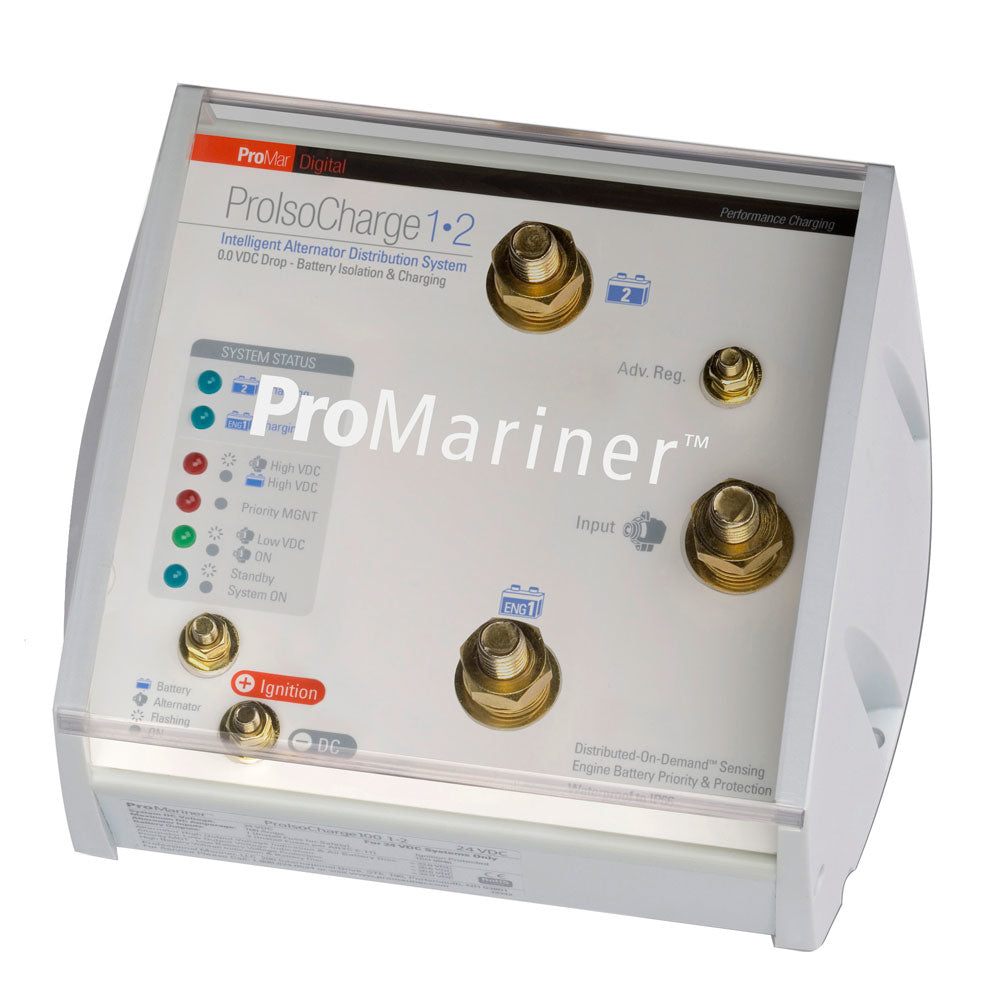

Promariner 23123 ProIsoCharge Battery Isolator 250Amp 1-Alt 2-Bat 12V

Introducing the Promariner 23123 ProIsoCharge Battery Isolator, the ultimate solution for efficient battery management on your boat. This advanced battery isolator is designed to deliver digitally controlled alternator output distribution while protecting the health of your engine start batteries. With its industry-changing design, it provides intelligent and zero voltage loss isolation, allowing you to charge up to 3 other battery banks off a single alternator.

The ProIsoCharge250 1•3 model, with a maximum DC current of 250 Amps, is specifically engineered for 12V systems. It features 1 alternator input and 2 battery outputs, offering a compact and versatile solution for your boat's power needs. The dimensions of this battery isolator are 6.95"(l) x 5.875"(w) x 3.125"(h), and it weighs only 4 lbs, making it easy to install and integrate into your existing setup.

ProIsoCharge is significantly smarter than traditional battery isolators. It eliminates the need for multiple voltage-sensitive relays and delivers priority charging to battery banks that are under load, ensuring their optimal performance. This innovative design also eliminates the typical alternator voltage loss of 0.6VDC associated with diode-based isolators, resulting in faster charge times and fully charged batteries.

The ProIsoCharge series is designed with intelligent alternator power distribution capabilities. Its all-digital design delivers active battery status and automatic engine battery health priority while distributing the full output of your engine's alternators. The intelligent software control of ProIsoCharge provides priority charging to battery banks under load, while also preserving the health of the engine batteries.

This battery isolator features real-time LED status indicators, allowing you to easily monitor alternator power presence and battery bank charging status. Fault LEDs are included for high and low alternator output, over-voltage protection, and high voltage conditions. These indicators ensure that you are always aware of the charging status and any potential issues with your battery banks.

ProIsoCharge is ignition controlled, meaning it will only activate when ignition power is on. This feature ensures efficient battery bank management and prevents unnecessary power drain when the engine is not running. Additionally, this battery isolator is advance regulator ready, providing a remote sense connection for precision alternator algorithm control when used with alternators equipped with an advanced regulator.

Installation of the ProIsoCharge is a breeze thanks to its modular design. It includes all terminal stud insulator boots and a protective snap-on safety cover, ensuring a secure and safe installation process. This battery isolator is built to last, with ignition protection and a waterproof rating of IP66, making it suitable for marine environments.

Product Features:

• Digitally controlled alternator output distribution
• Zero voltage loss isolation
• Charging of up to 3 other battery banks off a single alternator
• Priority charging to battery banks under load
• All-in-one design eliminates the need for multiple voltage-sensitive relays
• Faster charge times and fully charged batteries
• Real-time LED status indicators for easy monitoring
• Ignition controlled for efficient battery bank management
• Advance regulator ready for precision control
• Easy installation with modular design
• Built-in safety with ignition protection and waterproof rating

Specifications:

• Model: ProIsoCharge250 1•3
• Part No.: 23123
• System Volts DC: 12
• Max DC Amps: 250 Amp
• Alternator Input: 1
• Battery Outputs: 2
• Size: 6.95"(l

Product: Promariner 23123 Proisocharge Battery Isolator 250Amp 1-Alt 2-Bat 12V

Brand: Promariner

Model: 23123

Shipping Weight: 2.95 lb

Shipping Height: 5.00 in

Shipping Width: 7.00 in

Shipping Length: 8.00 in
