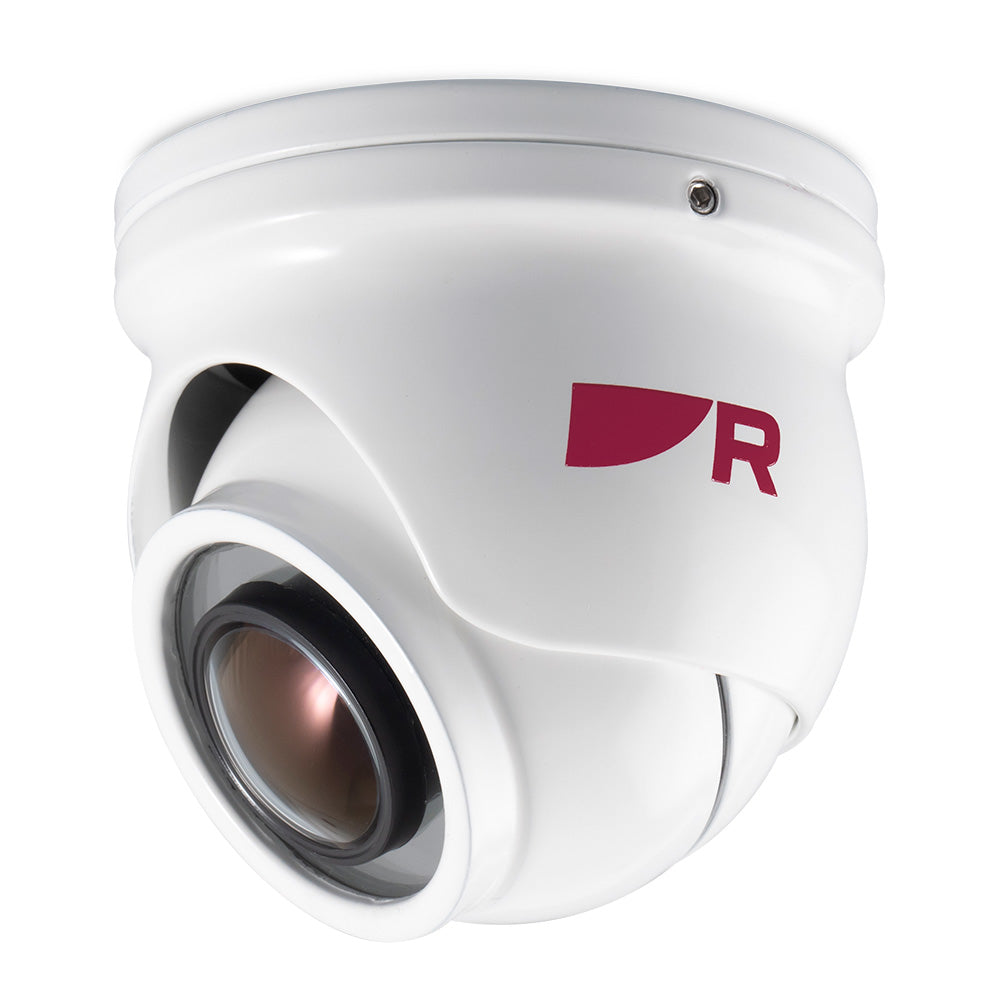

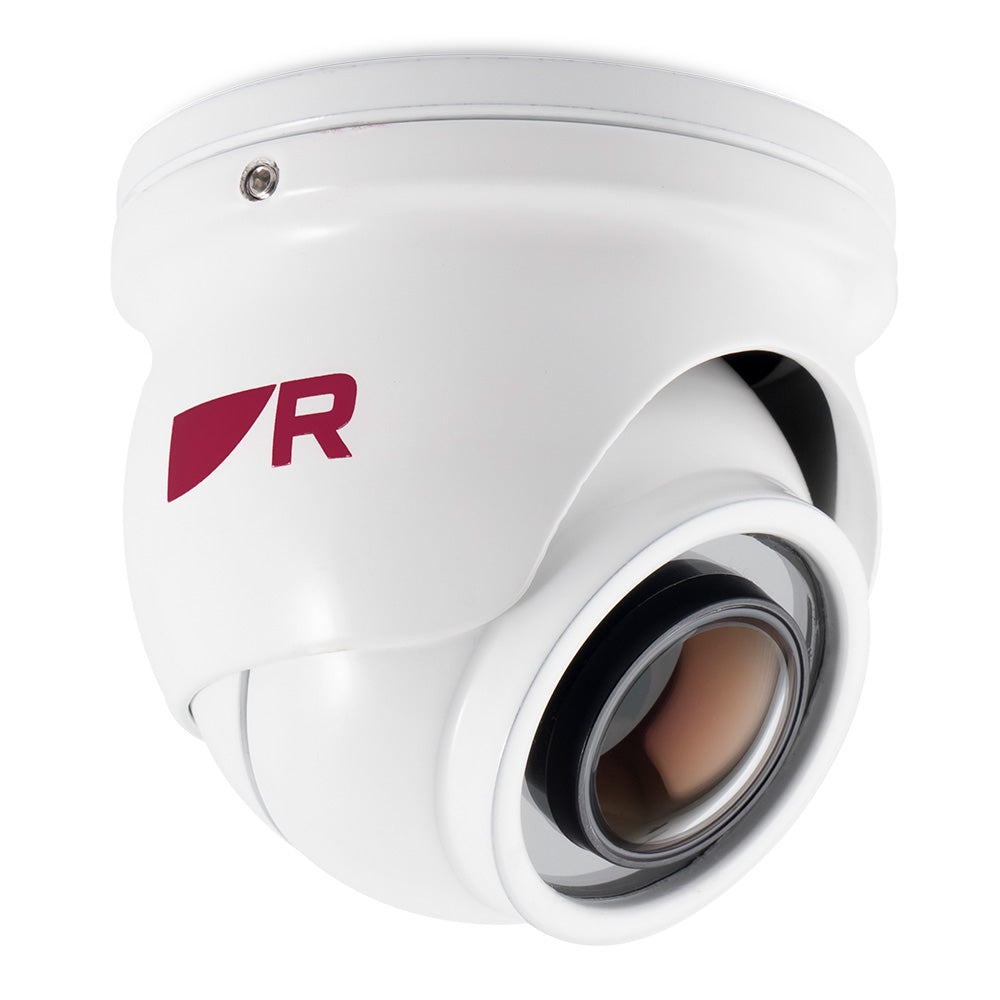

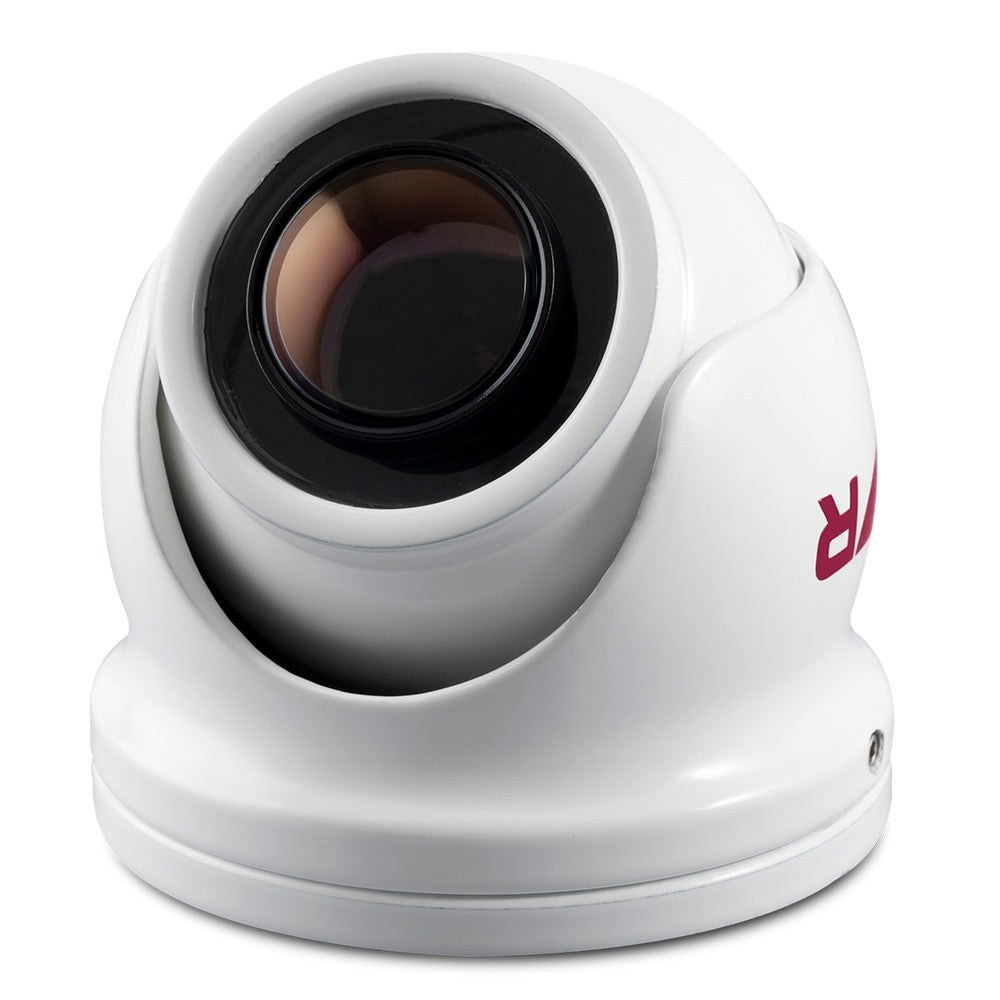

Raymarine E70660 CAM300 Eyeball CCTV Day and Night Video IP Camera

The Raymarine E70660 CAM300 Eyeball CCTV Day and Night Video IP Camera is a high-performance camera designed for marine applications. With its compact size and advanced features, this camera is perfect for monitoring blind spots, checking in on the crew, and recording fishing action from the helm. It can be easily integrated with Raymarine Axiom chartplotters to create a powerful onboard video observation system.

Product Features:

• View up to 4 CAM300 video streams simultaneously on a single Axiom display
• 3MP CMOS sensor delivers up to 1080p resolution
• Ultra-compact size blends seamlessly with your vessel
• Built-in infrared emitters for excellent near-field low light visibility up to 33 ft (10 meters)
• Image flip and invert functions for ball-up/ball-down installation and reverse video system applications
• Easy to install with either direct 12-volt connection or single cable Power over Ethernet (POE)
• Rugged IP66 enclosure for below and above deck marine installations

Specifications:

• POWER:
• Nominal supply voltage: 12 V DC
• Operating voltage range: 10.8 V DC to 15.6 V DC
• Power consumption: 1 W Nominal at 12 V DC / 1.8 W Maximum (LEDs ON)
• Power connection: C power cable or POE (Power over Ethernet)
• ENVIRONMENTAL SPECIFICATION:
• Operating temperature: -30&degC to +60&degC (-22&degF to 140&degF)
• Waterproof rating: IP66
• PHYSICAL SPECIFICATION:
• Dimensions: Base diameter - 59.5 mm (2.34 in), Height - 52.9 mm (2.08 in)
• Weight: 0.420 kg (0.926 lbs)
• VIDEO:
• Video Processing: H.264 Codec / Dual Stream
• Illumination: 6 x 850nm Infrared - 10-meter range
• Frame Rate: 25 fps
• Resolutions: 2304 x 1296 (3MP) Max
• ONVIF Conformance: Profile S
• Sensor / DSP: 1/4" CMOS Sensor
• Field of View: 1.8mm Standard (160&deg HFOV x 130&deg VFOV)
• COMPATIBILITY:
• Axiom display compatibility: Units running LightHouse 4.2 or later

What's in the Box:

• CAM300 — includes an approximate 670 mm (2.2 ft) fitted cable, featuring an RJ45 (male) and power connector
• Mounting screws (3 x)
• Documentation
• Hex wrench (Allen key)
• Waterproof gasket

Learn More:

For more information about the Raymarine E70660 CAM300 Eyeball CCTV Day and Night Video IP Camera, you can visit the following Wikipedia pages:

• Closed-circuit television
• Infrared
• Power over Ethernet
• ONVIF
