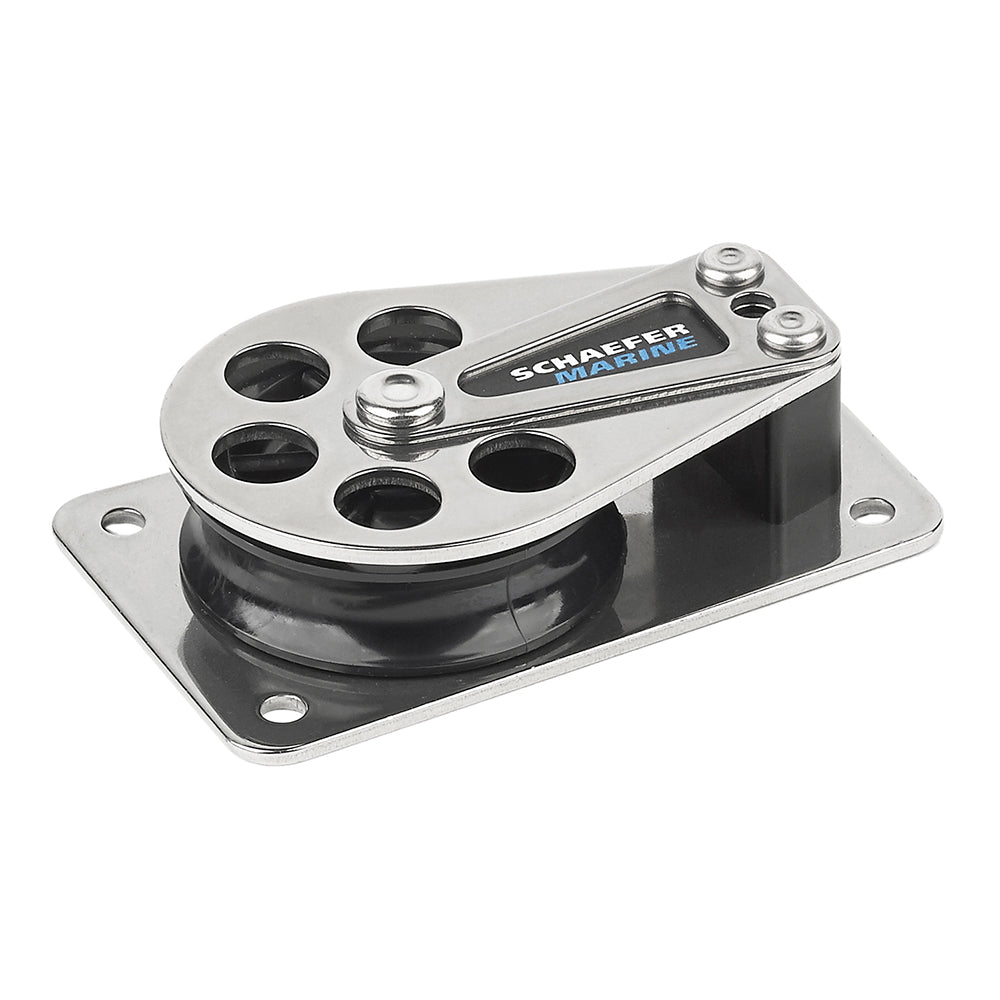

Schaefer 505-11 Series 5 Stainless Steel Flat Base Cheek Block Marine

The Schaefer 505-11 Series 5 Stainless Steel Flat Base Cheek Block Marine is a high-quality and durable cheek block designed for marine applications. With its stainless steel cheeks and Delrin™ sheave, this cheek block ensures smooth operation and a high safe working load. The stainless steel base distributes loads to a large surface area, providing enhanced stability and reliability.

Product Features:

• Stainless steel cheeks for enhanced durability and corrosion resistance
• Delrin™ sheave ensures smooth operation
• High safe working load for reliable performance
• Stainless steel base distributes loads to a large surface area

Specifications:

• Sheave Diameter: 2" (51 mm)
• Max. Line: 7/16" (11 mm)
• Length: 3-5/8" (92 mm)
• Width: 2-7/32" (57 mm)
• Height: 7/8" (22 mm)
• Fasteners: (4) #10 - RH (5 mm)
• C/C: 3" (76 mm)
• SWL: 1750 lbs. (795 kg)
• Weight: 6.9 oz. (196 g)
• Max Line: 7/16" (11mm)

Learn More:

• Cheek Block on Wikipedia
• Delrin™ on Wikipedia

Product: Schaefer 505-11 Series 5 Stainless Steel Flat Base Cheek Block Marine

Brand: Schaefer Marine

Model: 505-11
