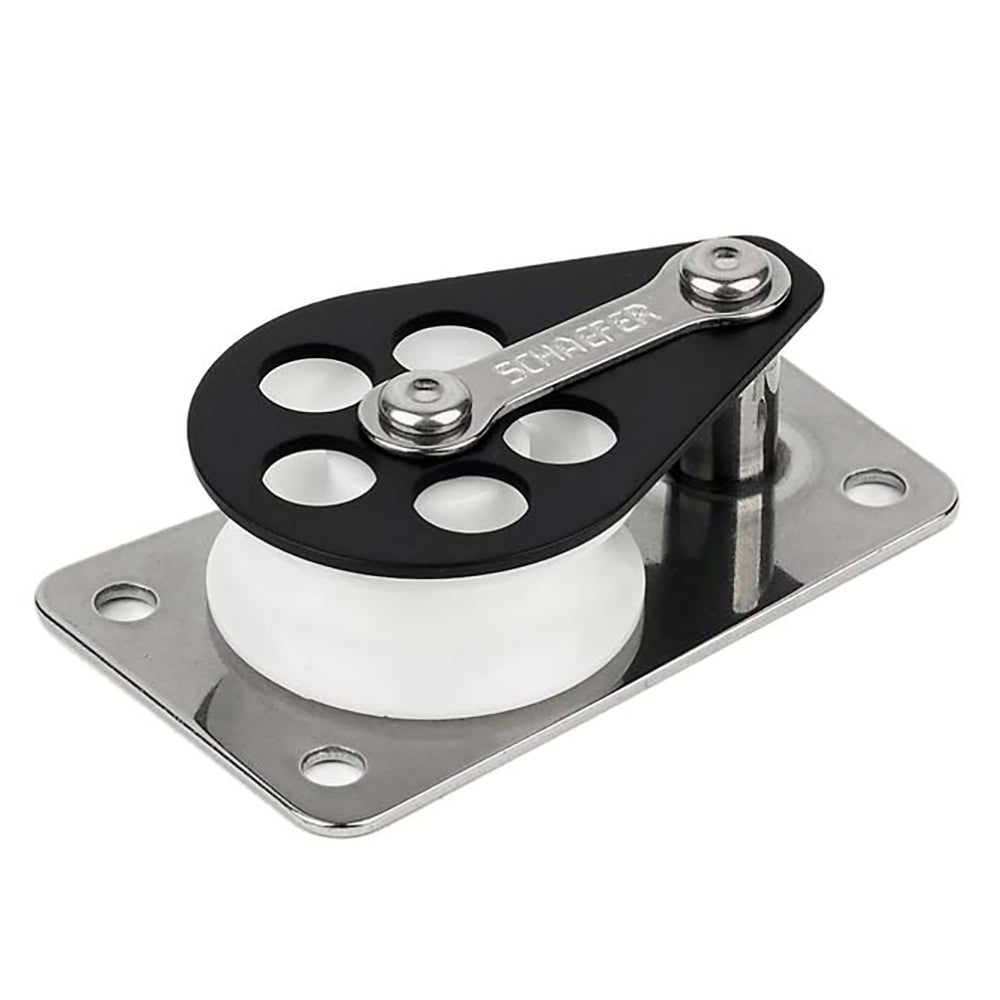

Schaefer Marine 303-09 Series 3 Flat Base with Alum Cheek and Delrin Sheave

The Schaefer Marine 303-09 Series 3 Flat Base with Alum Cheek and Delrin Sheave is a reliable and durable sailboat hardware designed for smooth operation and high safe working load. It features a Delrin™ plain bearing sheave and a stainless steel base that distributes loads to a larger surface area.

Product Features:

• Delrin™ plain bearing sheave for smooth operation
• Stainless Steel base distributes loads to a larger surface area
• Aluminum Cheek for durability and strength
• Designed for sailboat use

Specifications:

• Sheave Diameter: 1-7/16" (37 mm)
• Max Line: 7/16" (11 m)
• Length: 2-7/8" (73 mm)
• Width: 1-3/4" (44 mm)
• Height: 3/4" (19 mm)
• Fasteners: (4) #10- RH (5 mm)
• Center to Center: 2-3/8" (60 mm)
• Safe Working Load (SWL): 1000 lbs. (450 kg)
• Weight (Aluminum): 2.5 oz. (71 g)

Learn More:

For more information on sailboat hardware, please visit the Sailboat Hardware page on Wikipedia.

To learn more about Delrin™ plastic, please visit the Polyoxymethylene page on Wikipedia.

Product: Schaefer Marine 303-09 Series 3 Flat Base with Alum Cheek and Delrin Sheave

Brand: Schaefer Marine

Model: 303-09

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
