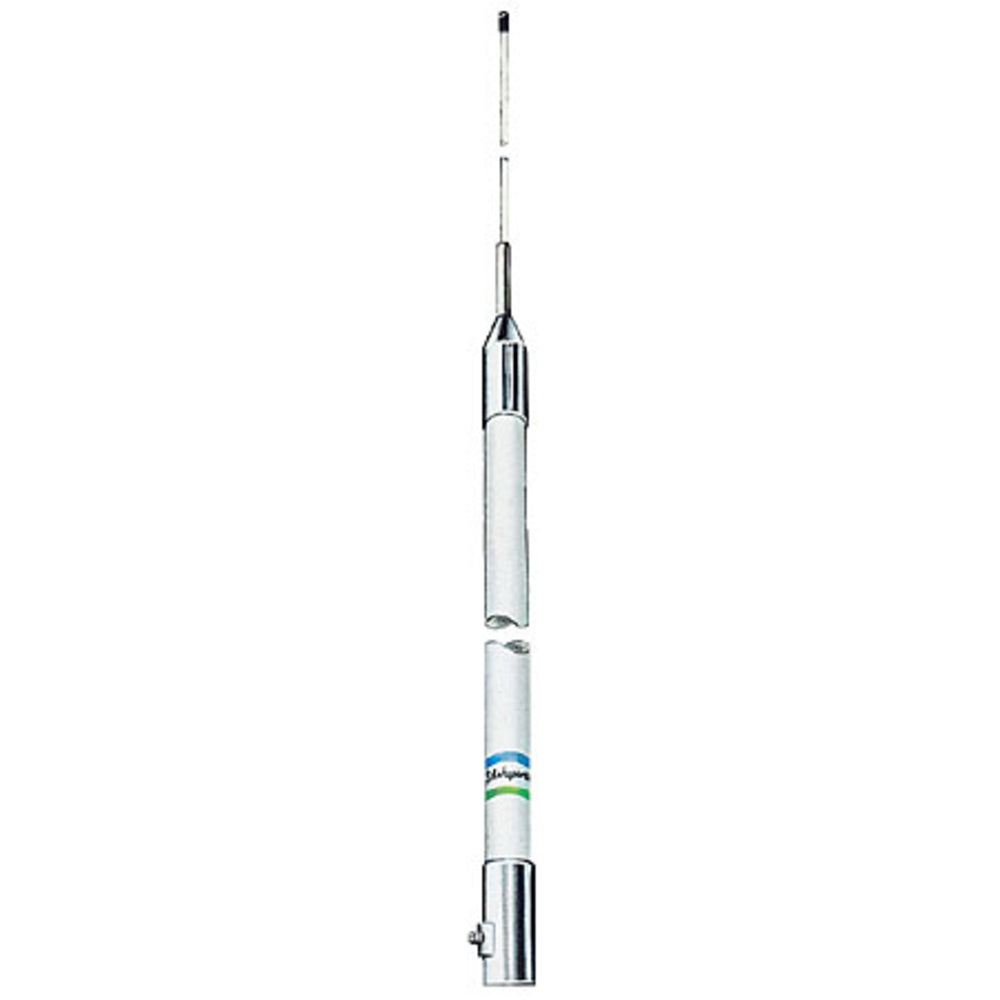

Shakespeare 176-1 18' 2-Section 7.65dBi CB Marine Antenna

Shakespeare Style 176-1 MARINE BIG STICK™ CB Marine ***TRUCK FREIGHT ONLY***

18' LENGTH, 7.65 dBi

1/2-WAVE COAXIAL CB ANTENNA

For work boat and large yacht installation, the Style 176-1 provides maximum performance and durability for long distance communication.

• Chrome-plated brass ferrules with 1"-14 thread
• SO-239 connector on the side of the ferrule
• Suggested mount: Shakespeare Style 409-R or Style 410-R Mounting Kit
• Two sections: Base 120"; Tip 96"
• Twin to: Styles 5202, 5302, and 5206-C
• Shakespeare Limited Warranty: 2 years

Technical Specifications:

• Frequency: 27 MHz CB Marine band
• Bandwidth: 440 KHz
• SWR: 1.5:1 or less at Channel 19
• Impedance (Ohms): 50
• Gain: 7.65 dB
• Max Input (Watts): 300
• DC Ground: YES
• Termination: SO-239 connector
• Height (feet): 18
• Polarization: Vertical
• Radiation pattern: Omni-directional

Learn More

Citizen Band Radio on Wikipedia

Marine VHF Radio on Wikipedia

Product: Shakespeare 176-1 18' 2-Section 7.65dBi CB Marine Antenna

Brand: Shakespeare

Model: 1761

Shipping Weight: 90.00 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 126.00 in
