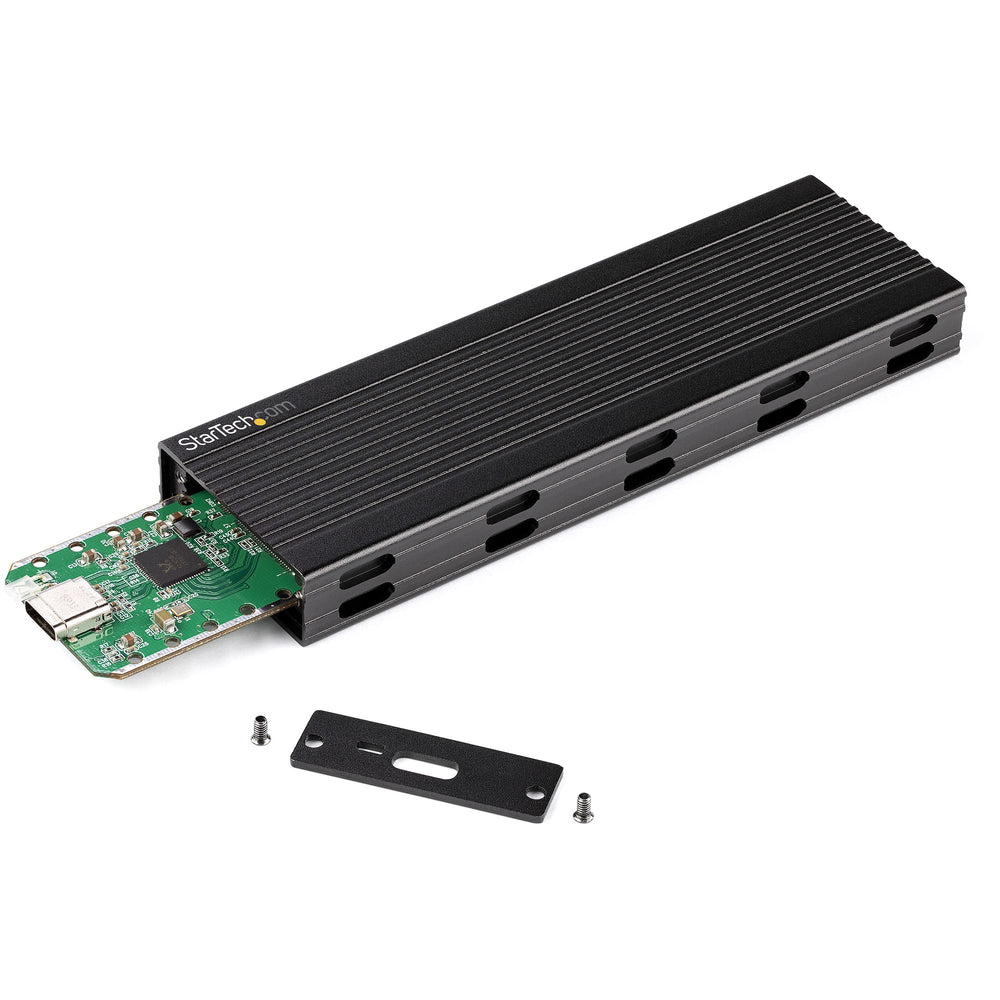

Startech.com SM2E1BMU31C USB-C 10Gbps to M.2 NVMe or SATA SSD Enclosure PCIe - High-Speed Data Transfer

Turn your PCIe M.2 NVMe or SATA AHCI M.2 SSD into a highly portable, USB-based external storage solution with the Startech.com SM2E1BMU31C USB-C 10Gbps to M.2 NVMe or SATA SSD Enclosure. This enclosure features USB 3.2 Gen 2x1 (10Gbps) with UASP support & PCIe 3.0, delivering real read/write data transfer speeds up to 1GB per second.

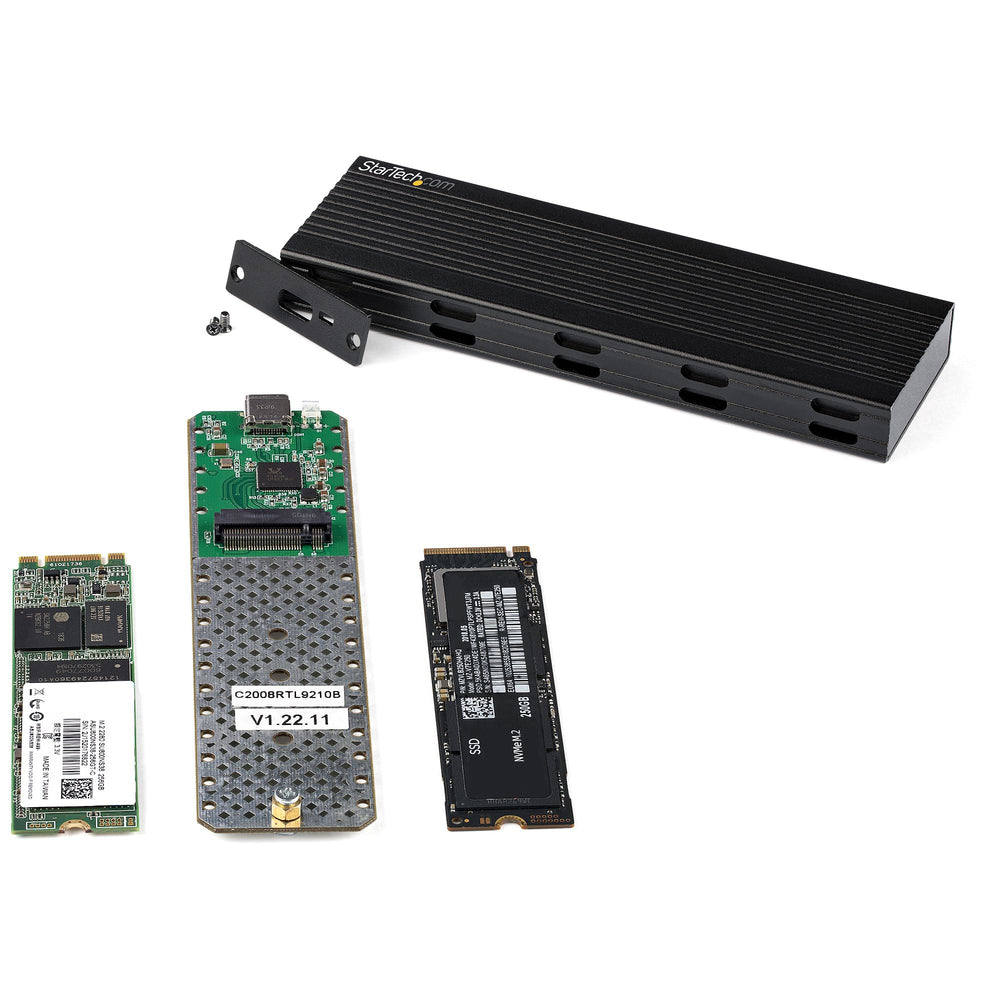

Designed to work with both PCIe and SATA based M.2 drives, this enclosure ensures compatibility with virtually any M.2 drive, supporting both M-Key (PCIe) and B+M-Key (SATA) drives sized 2230/2242/2260/2280. It is compatible with popular SSD drives including Samsung (850, 860, 870, 950, 960, 970), Kingston, Seagate, Western Digital (WD), HP, and Intel SSD drives.

This all-in-one M.2 and USB solution eliminates the common challenge of identifying which enclosure is compatible with your M.2 drive. Whether your M.2 drive is SATA or PCIe NVMe based, this enclosure provides a high-performance solution for turning your M.2 drive into a portable external enclosure. It supports multiple drive heights including 2230, 2242, 2260, and 2280mm drives.

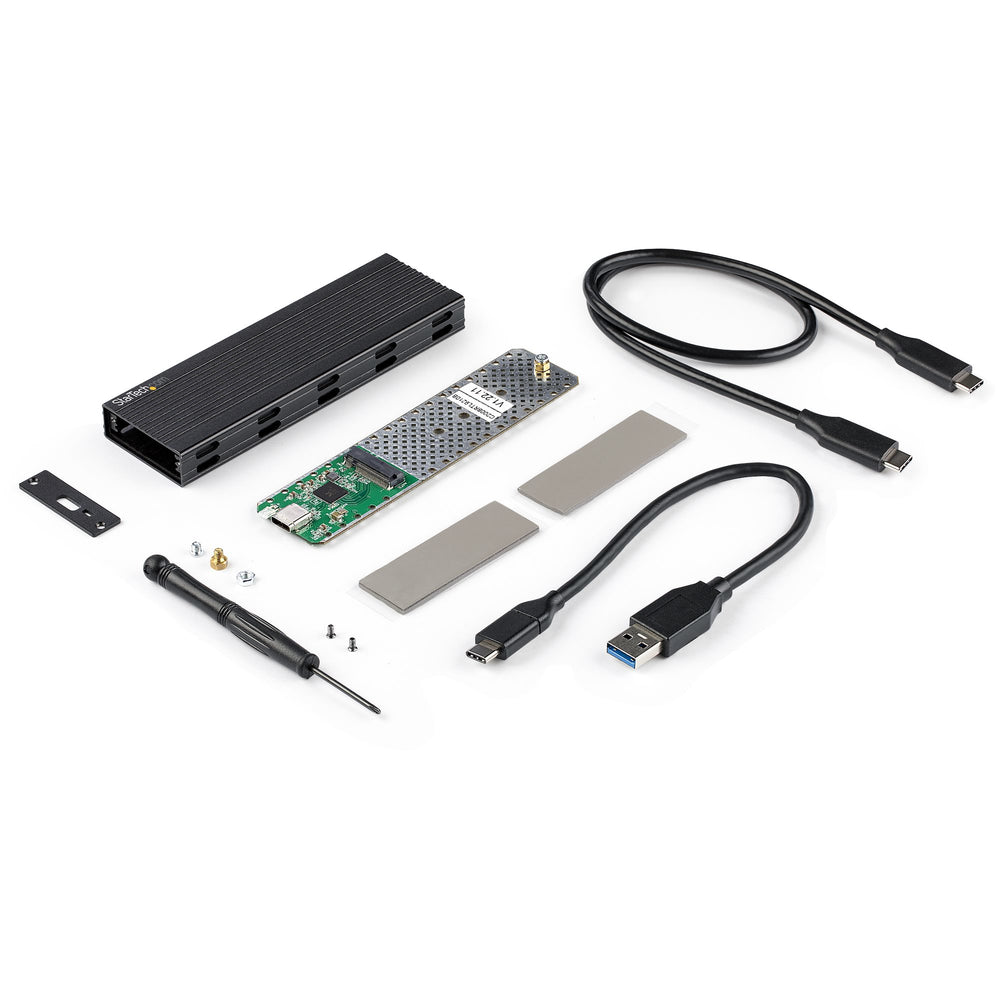

The Startech.com SM2E1BMU31C comes with two different host cables, a USB-C to USB-C cable (20 in. / 50 cm) and a USB-C to USB-A cable (10" / 25 cm), ensuring multiplatform support. This M.2 enclosure works with virtually any computer, whether it's USB-A, USB-C, or Thunderbolt 3.

Leverage the high speeds of your M.2 NVMe or SATA drive with the unparalleled performance of this external SSD enclosure. It delivers USB 3.2 Gen 2x1 maximum theoretical throughput of 10Gbps, which is twice the throughput of USB 3.2 Gen 1x1 at 5Gbps. The enclosure also supports PCIe 3.0, taking full advantage of the throughput available to USB 3.2 Gen 2x1 when combined with an M.2 NVMe drive.

This fan-less aluminum enclosure features ventilation holes for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance and protect your drive from overheating damage. Its durable and portable design makes it perfect for on-the-go use. The slim, pocket-sized enclosure fits easily into your laptop bag, and the lightweight yet robust aluminum housing protects your drive while you're on the move.

The Startech.com SM2E1BMU31C USB-C 10Gbps to M.2 NVMe or SATA SSD Enclosure supports driverless plug-and-play installation, making it hassle-free to set up. The package includes a screwdriver, so no additional tools are required for drive installation.

Features:

• Product type: SSD enclosure
• Operating relative humidity (H-H): 10 - 90
• Storage temperature (T-T): -10 - 65
• Operating temperature (T-T): 0 - 40
• Storage relative humidity (H-H): 5 - 95
• Screws included: Yes
• USB ports quantity: 1
• UASP support: Yes
• Supported storage drive interfaces: M.2
• USB connector gender: Female connector
• Screwdriver included: Yes
• Master (outer) case length: 395
• Quantity per master (outer) case: 60
• Supported storage drive lengths: 30, 42, 60, 80
• USB connector type: USB Type-C
• Cables included: USB Type-A to USB Type-C, USB Type-C to USB Type-C
• Material: Aluminium, Plastic
• LED indicators: Activity, Power
• Package depth: 106
• Package height: 35
• Package width: 154
• Manual: Yes
• Master (outer) case height: 266
• Master (outer) case width: 502
• Integrated USB cable: No
• Mean time between failures (MTBF): 112000
• Weight: 81.6
• Chipset: Realtek - RTL9210B
• Package weight: 193.4
• Data transfer rate: 10
• Height: 14
• Width: 128
• Depth: 40
• Product color: Black
• Power source type: USB

Product: Startech SM2E1BMU31C USB-C M.2 SSD Enclosure - 10Gbps PCIe

Brand: Startech.Com

Model: SM2E1BMU31C

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
