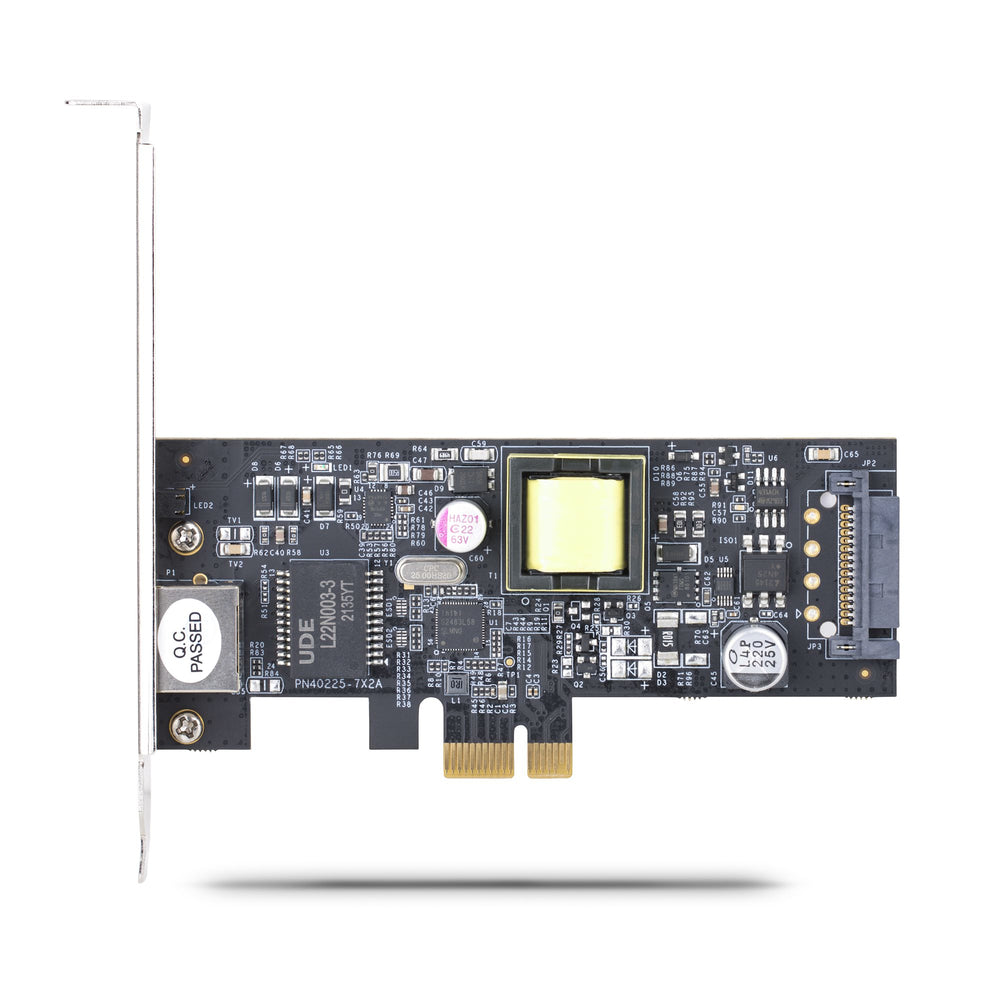

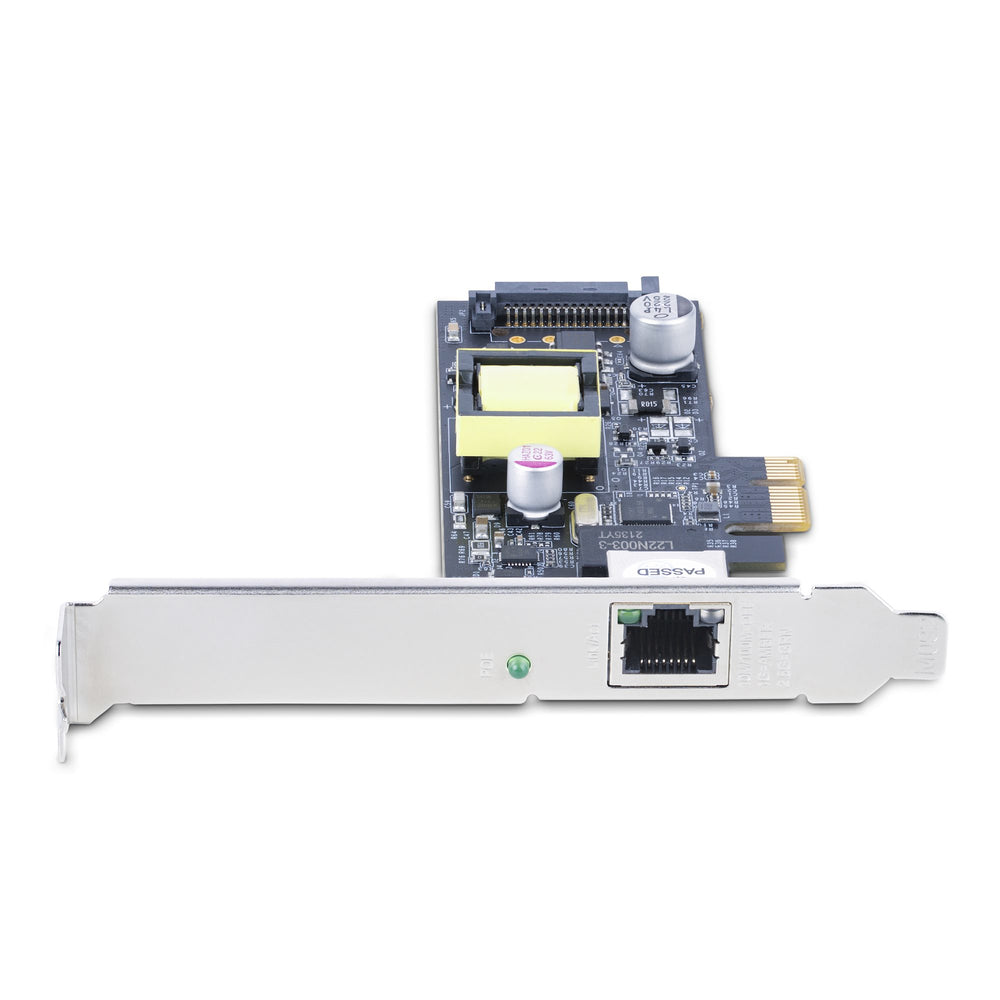

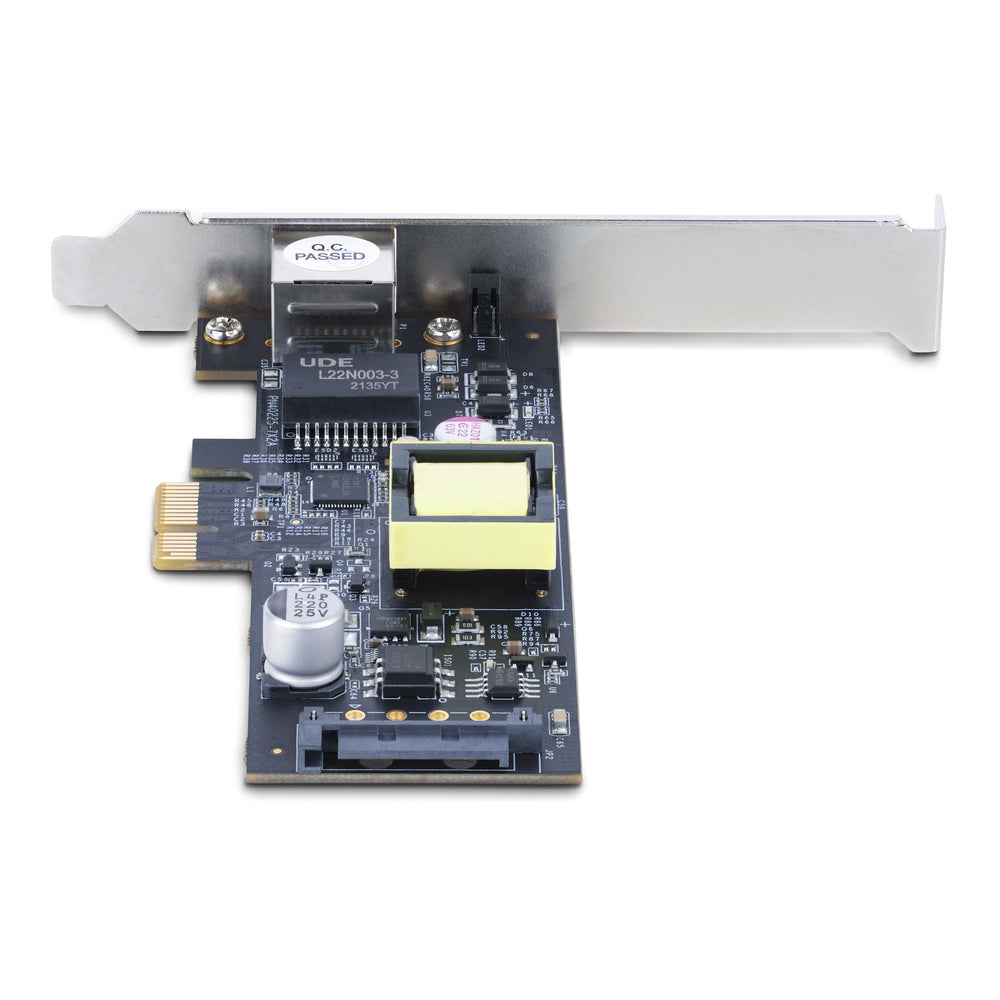

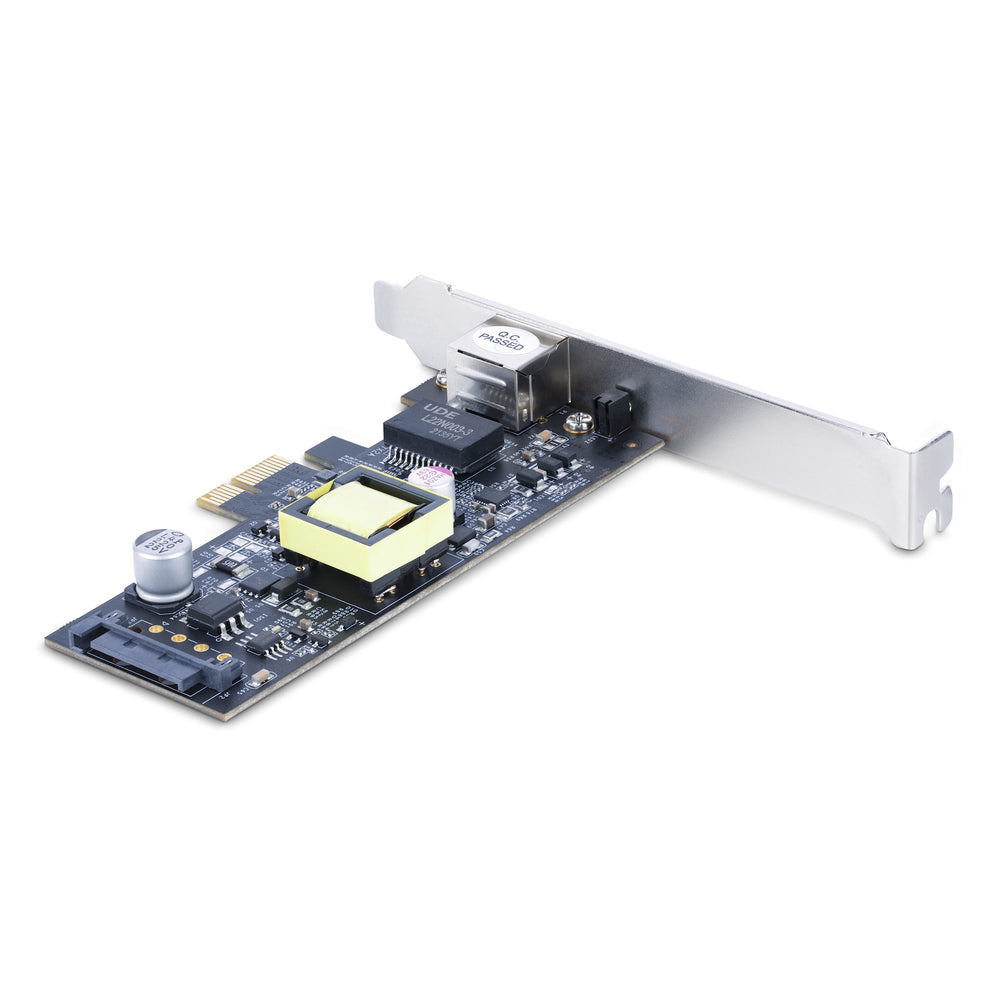

Startech.com PR12GIP-NETWORK-CARD 2.5Gbps Nbase-T PoE Network Card Intel

This 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both modern and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Power Over Ethernet

The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48V DC and 25.5W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power supply or Power Over Ethernet injector for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.

Increased Network Speed

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.

Enhance Existing Hardware

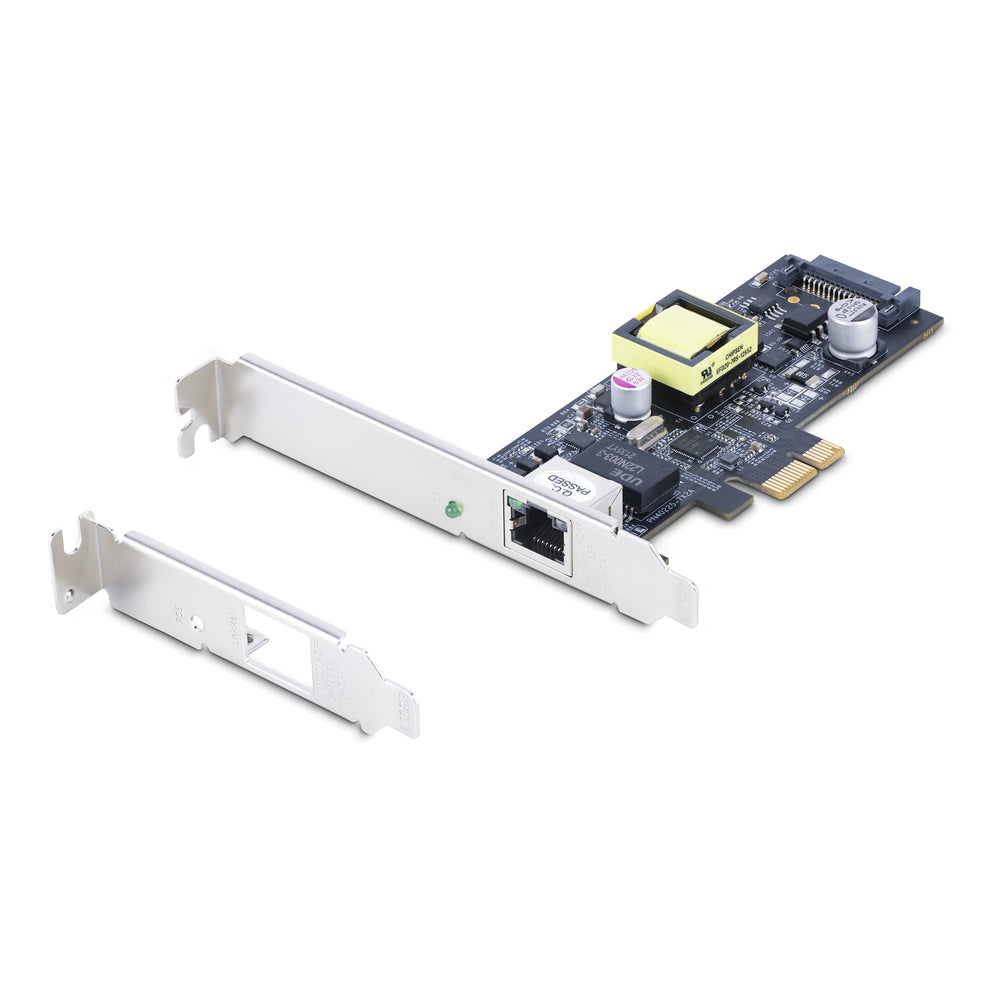

The network interface card connects via an available x1 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.

This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.

Features:

• Operating relative humidity (H-H): 5 - 90
• Storage temperature (T-T): -10 - 70
• Operating temperature (T-T): 0 - 55
• Maximum data transfer rate: 2500
• Connectivity technology: Wired
• Networking standards: IEEE 1588,IEEE 802.1Q,IEEE 802.1as,IEEE 802.1p,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3i,IEEE 802.3u
• Ethernet LAN (RJ-45) ports: 1
• Power over Ethernet (PoE) ports quantity: 1
• Ethernet LAN data rates: 10,100,1000,2500
• Interface: Ethernet
• Output voltage: 48
• LED indicators: Y
• Host interface: PCI Express
• Package depth: 170
• Package height: 30
• Package width: 142
• Quick installation guide: Y
• Internal: Y
• Quality of Service (QoS) support: Y
• Weight: 62
• Chipset: Intel I225-V
• Package weight: 70
• Height: 16
• Width: 54
• Depth: 119
• Product color: Black
• Wake-on-LAN ready: Y
• Number of SATA power connectors: 1
• Windows operating systems supported: Windows 10,Windows 11
• Linux operating systems supported: Y
• Server operating systems supported: Windows Server 2019,Windows Server 2022
• Other operating systems supported: VMware vSphere ESXi
• Sustainability compliance: Y
• Sustainability certificates: RoHS
• Component for: PC/Server
• PCI version: 2.0

Learn More

Network Interface Controller on Wikipedia

Product: Startech.com PR12GIP-NETWORK-CARD 2.5Gbps Nbase-T PoE Network Card Intel

Brand: Startech.Com

Model: PR12GIP-NETWORK-CARD

Shipping Weight: 0.35 lb

Shipping Height: 1.40 in

Shipping Width: 4.60 in

Shipping Length: 8.30 in
