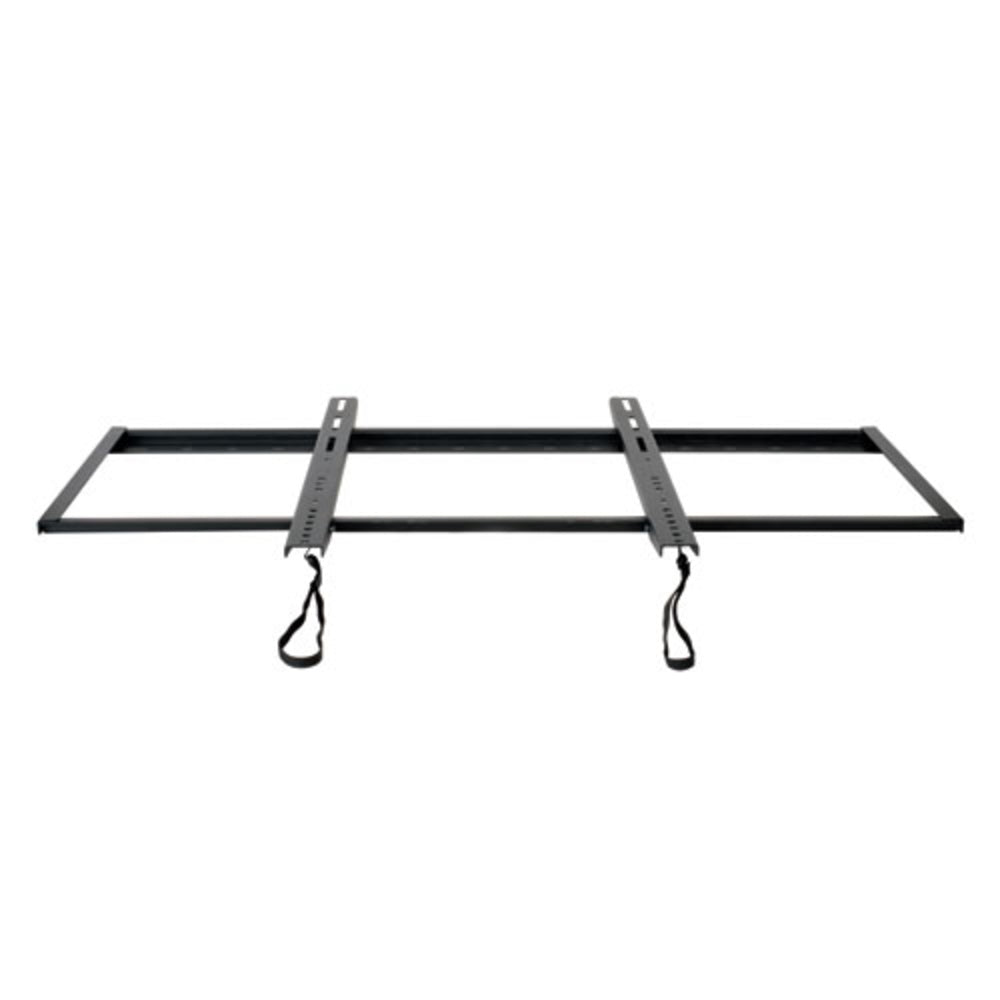

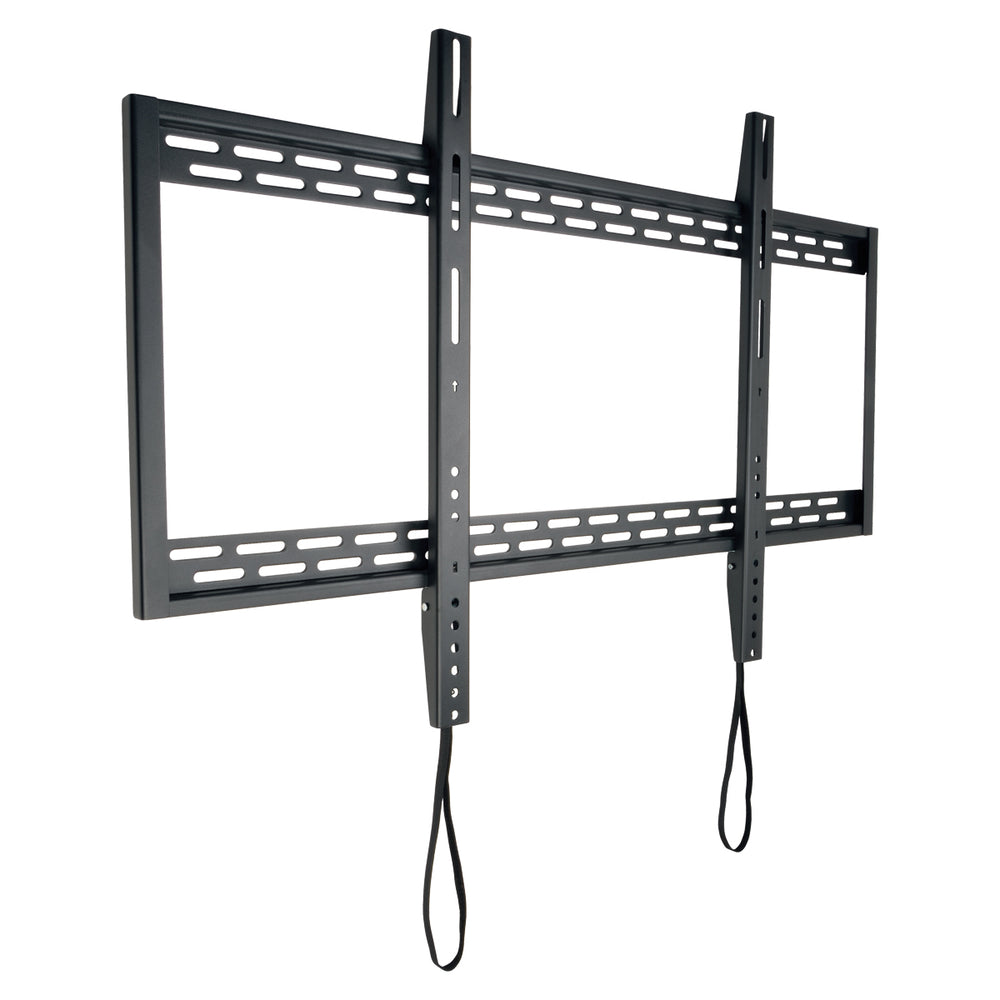

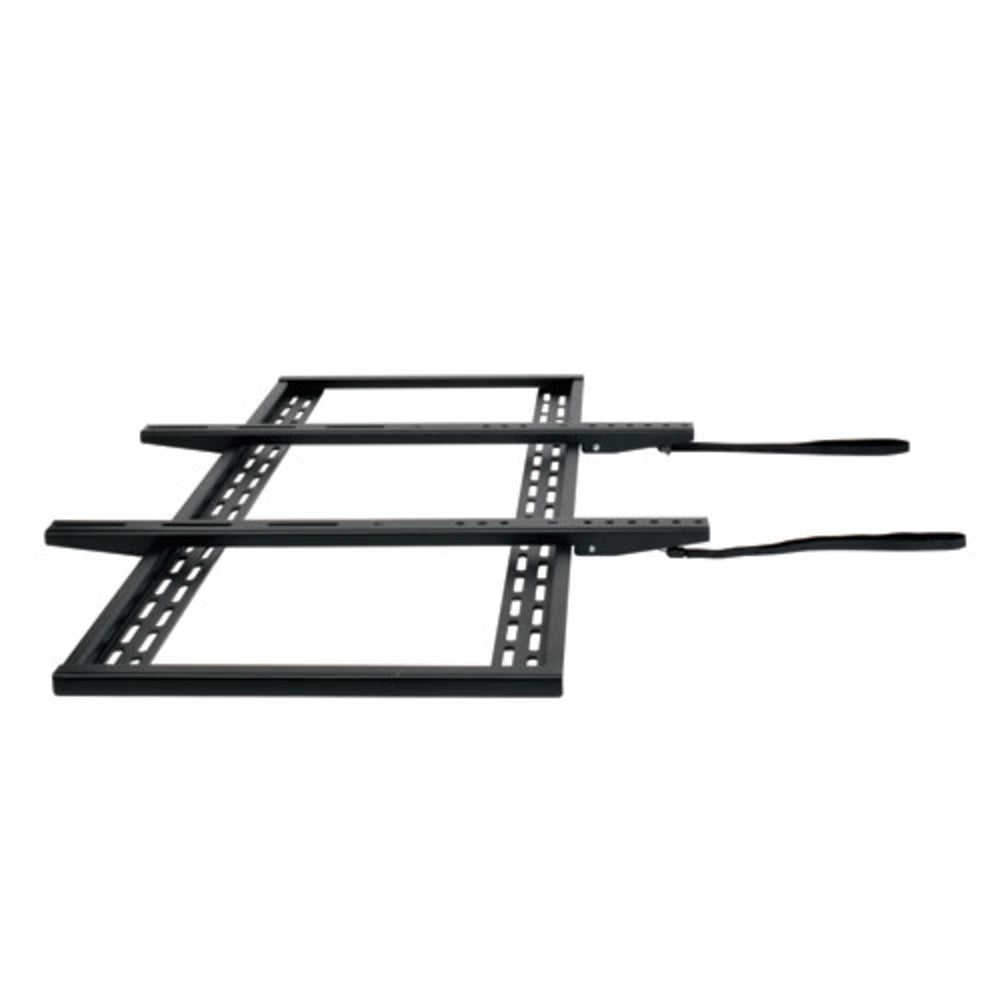

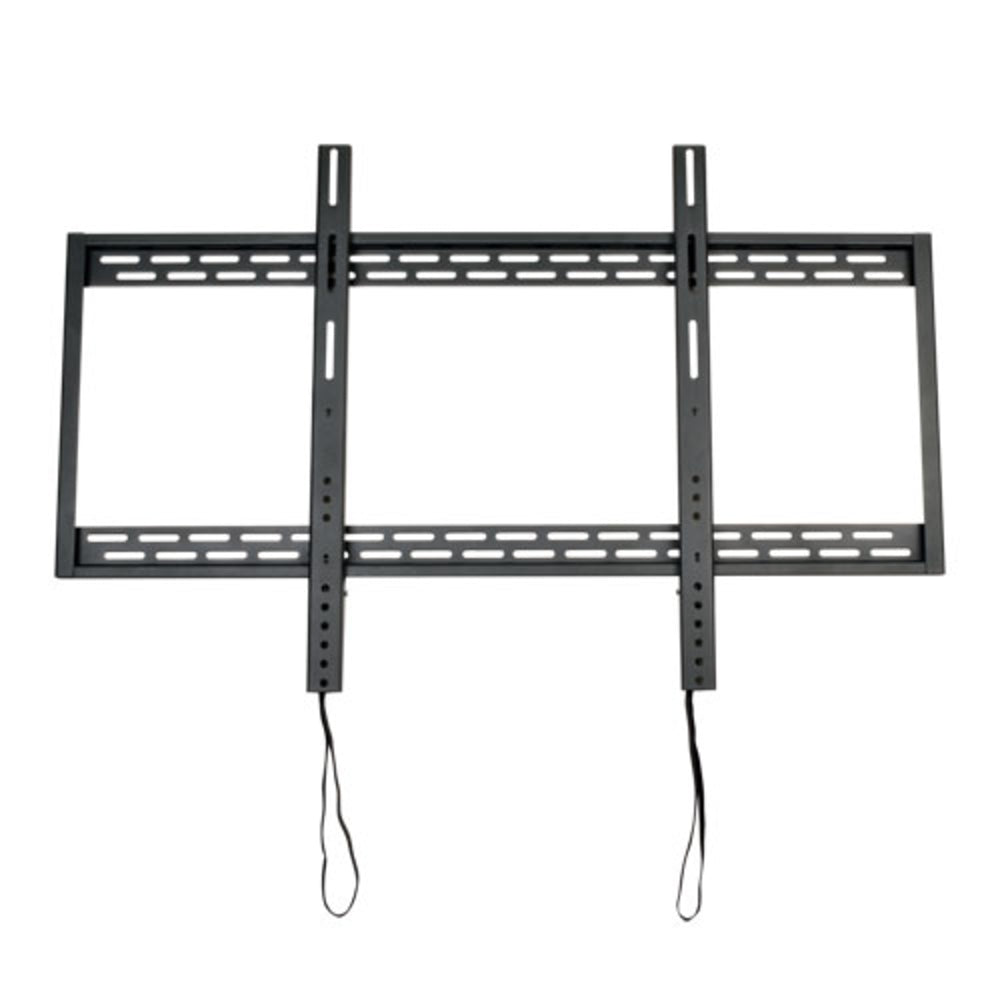

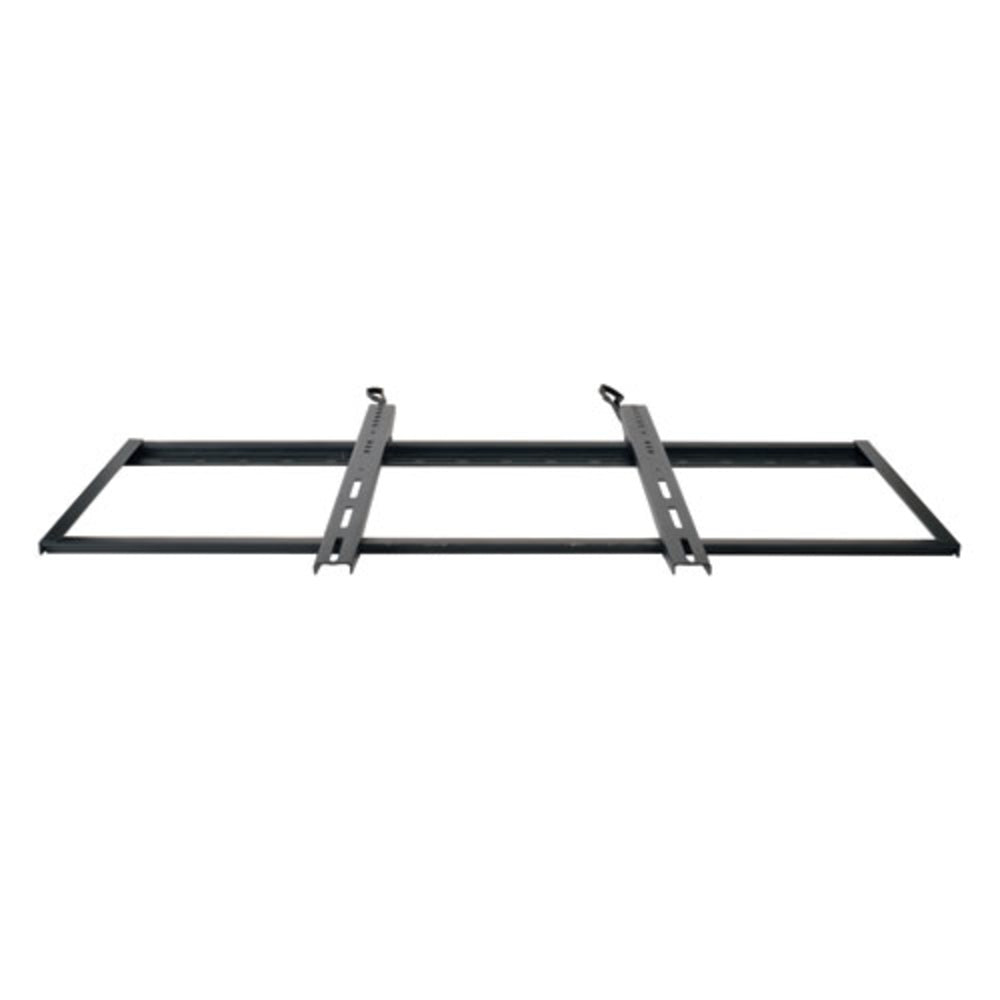

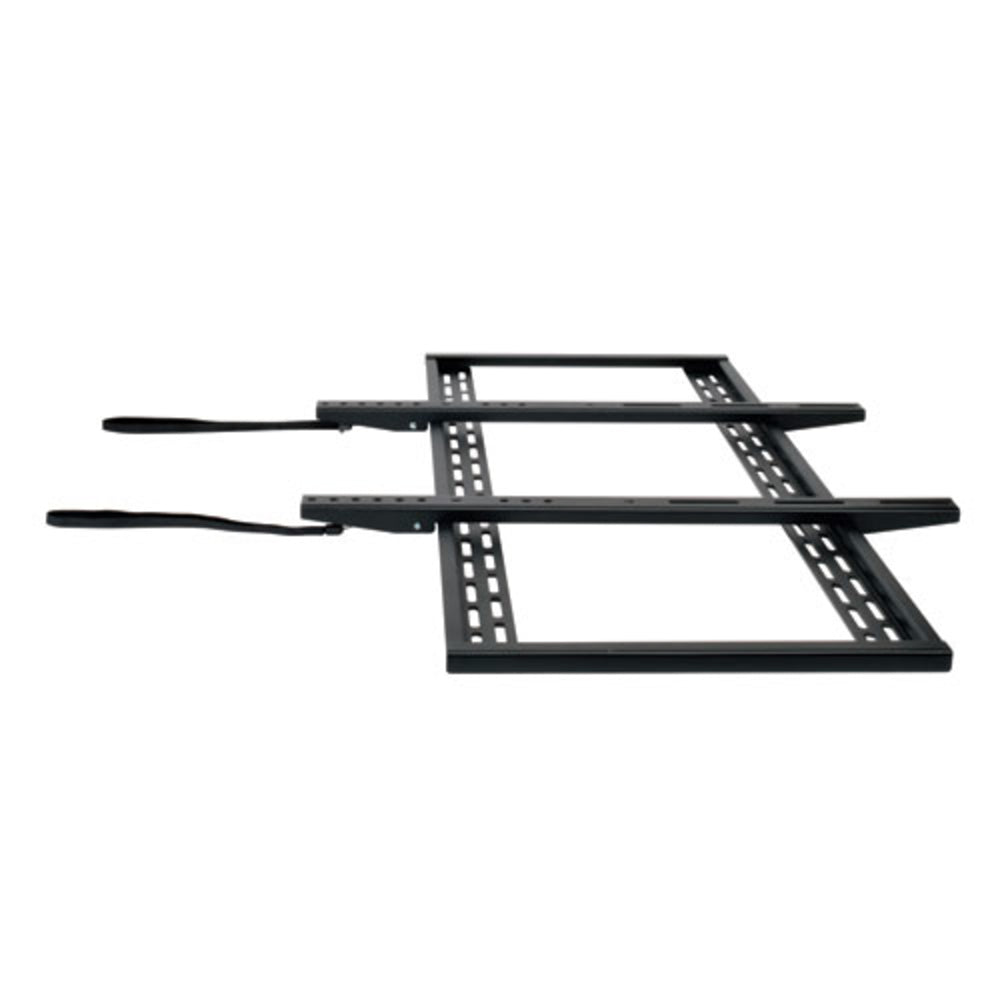

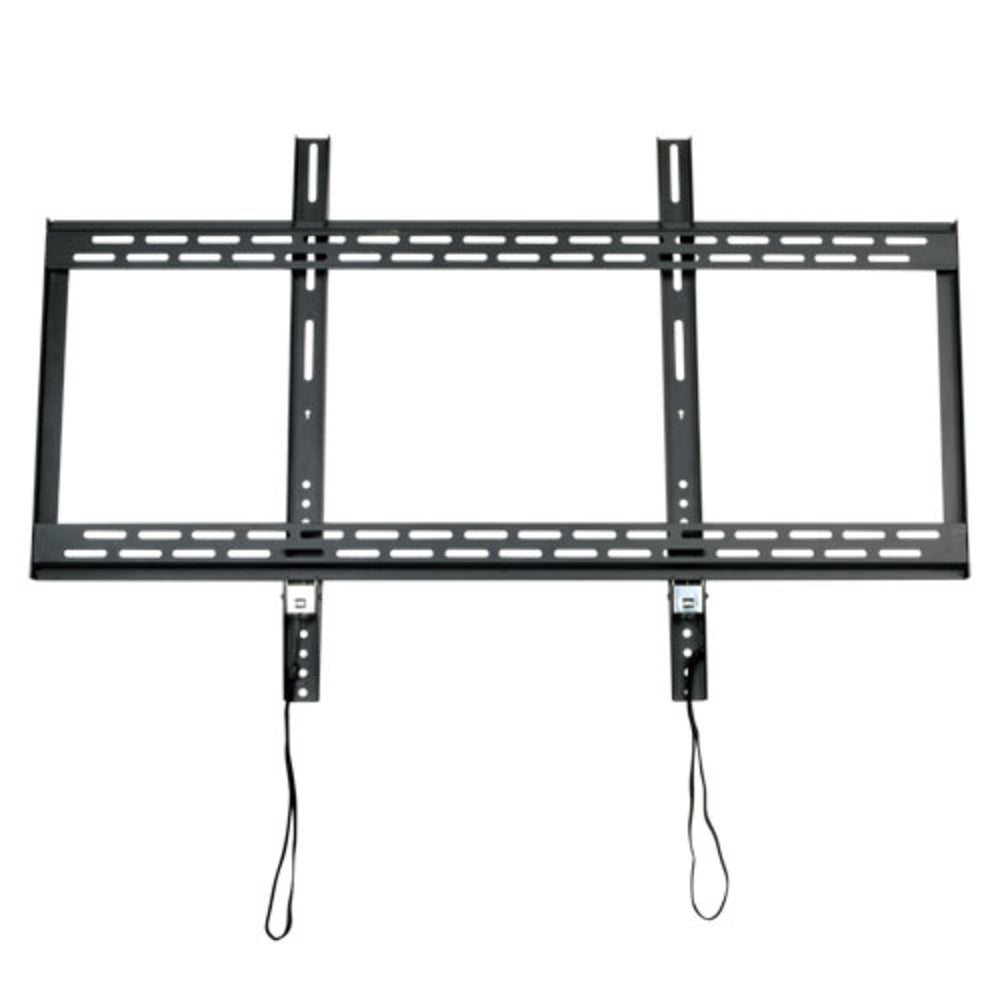

TRIPP LITE DWF60100XX DISPLAY TV LCD WALL MONITOR MOUNT FIXED 60IN. TO 100IN.

The TRIPP LITE DWF60100XX flat panel wall mount is designed to securely mount your flat-panel television, monitor, or other display on the wall. With a sleek and professional appearance, this wall mount is ideal for home theaters, classrooms, boardrooms, hotels, bars, and restaurants. It is compatible with most flat-panel displays ranging from 60 to 100 inches.

The durable all-metal frame of the TRIPP LITE DWF60100XX features a scratch-resistant powder-coated finish and can support weights up to 159 kg (350 lbs). The low-profile mount is concealed behind the display, providing a clean and uncluttered look. The open frame design allows for easy wall access, making installation and maintenance hassle-free.

The TRIPP LITE DWF60100XX wall mount is VESA-compliant and supports various mounting hole patterns, including 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 800 x 400 mm, 800 x 600 mm, and 900 x 600 mm. This ensures compatibility with a wide range of displays.

Features:

• Mounts most flat-panel televisions, monitors, and displays from 60 to 100 inches
• Ideal for home theaters, classrooms, boardrooms, hotels, bars, and restaurants
• Sleek and professional appearance with a concealed mount
• Durable all-metal frame with scratch-resistant powder-coated finish
• Supports up to 159 kg (350 lbs) of weight
• Open frame design allows easy wall access
• Adjustable display brackets with connected straps for off-center wall studs
• VESA-compliant with multiple mounting hole patterns
• Mounting hardware included
• 5-year warranty

Specifications:

• Maximum weight capacity: 158 kg
• Minimum screen size compatibility: 60 inches
• Maximum screen size compatibility: 100 inches
• VESA mounting interfaces: 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400, 800 x 400, 800 x 600, 900 x 600
• Height adjustment: No
• Telescopic: No
• Distance to the wall (min): 13.7 mm
• Product color: Black
• Housing material: Metal
• Width: 1009 mm
• Depth: 31.8 mm
• Height: 607 mm
• Weight: 4500 g
• Manual: Yes
• Number of displays supported: 1
• Minimum VESA mount: 200 x 200 mm
• Maximum VESA mount: 900 x 600 mm
• Package weight: 6080 g
• Package depth: 1267.5 mm
• Package height: 40.6 mm
• Package width: 439.9 mm
• Master (outer) case height: 430 mm
• Master (outer) case width: 140 mm
• Master (outer) case weight: 18660 g
• Master (outer) case length: 1130.3 mm
• Quantity per master (outer) case: 3

Learn More

For more information about flat-panel displays, mounting options, and related technologies, please visit the following Wikipedia articles:

• Flat-panel display
• VESA mounting interface standard

Product: TRIPP LITE DWF60100XX DISPLAY TV LCD WALL MONITOR MOUNT FIXED 60IN. TO 100IN.

Brand: Tripp Lite

Model: DWF60100XX

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
