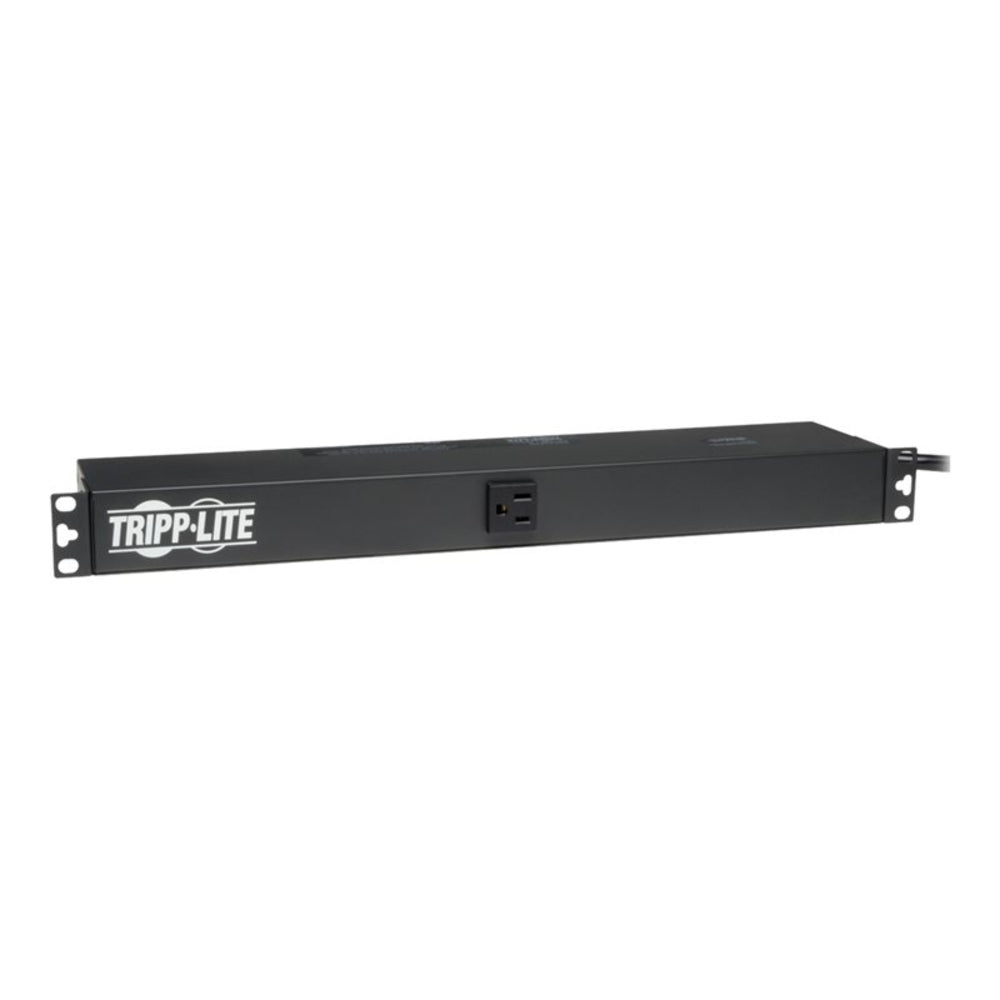

Tripp-Lite PDU1215 1U 12 Rear-Facing Outlets 15-Amp Switchless UPS

Tripp Lite's PDU1215 1.8kW 15A Single-Phase Basic Power Distribution Unit (PDU) is a dependable, space-saving, cost-effective way to deliver 120V power to wiring closets, server rooms, and equipment racks from a UPS system, generator, or utility wall outlet in high-density IT environments. It is suitable for networking, PC systems, telecommunications, audio/video, security, sound reinforcement, and other similar applications.

Product Features:

• PDU types: Basic
• Mounting: Horizontal
• Housing material: Metal
• Maximum current: 15
• Power plug: NEMA 5-15P
• AC outlets quantity: 13
• AC outlet types: NEMA 5-15R
• Storage temperature (T-T): -15 - 50
• Operating altitude: 0 - 3000
• Weight: 2200
• RoHS compliance: Y
• Nominal output voltage: 100-127
• Nominal input voltage: 100-127
• Cable length: 4.57
• Product color: Black
• Rack capacity: 1U
• Dimensions (WxDxH): 445 x 114 x 44.4
• I/O ports: 13 x NEMA 5-15R
• Certification: UL60950-1/CSA-C22.2

Specifications:

• 1.8kW 15A 120V single phase Basic Power Distribution Unit / PDU
• 1U horizontal 19-inch rackmount form factor installs in one rack space

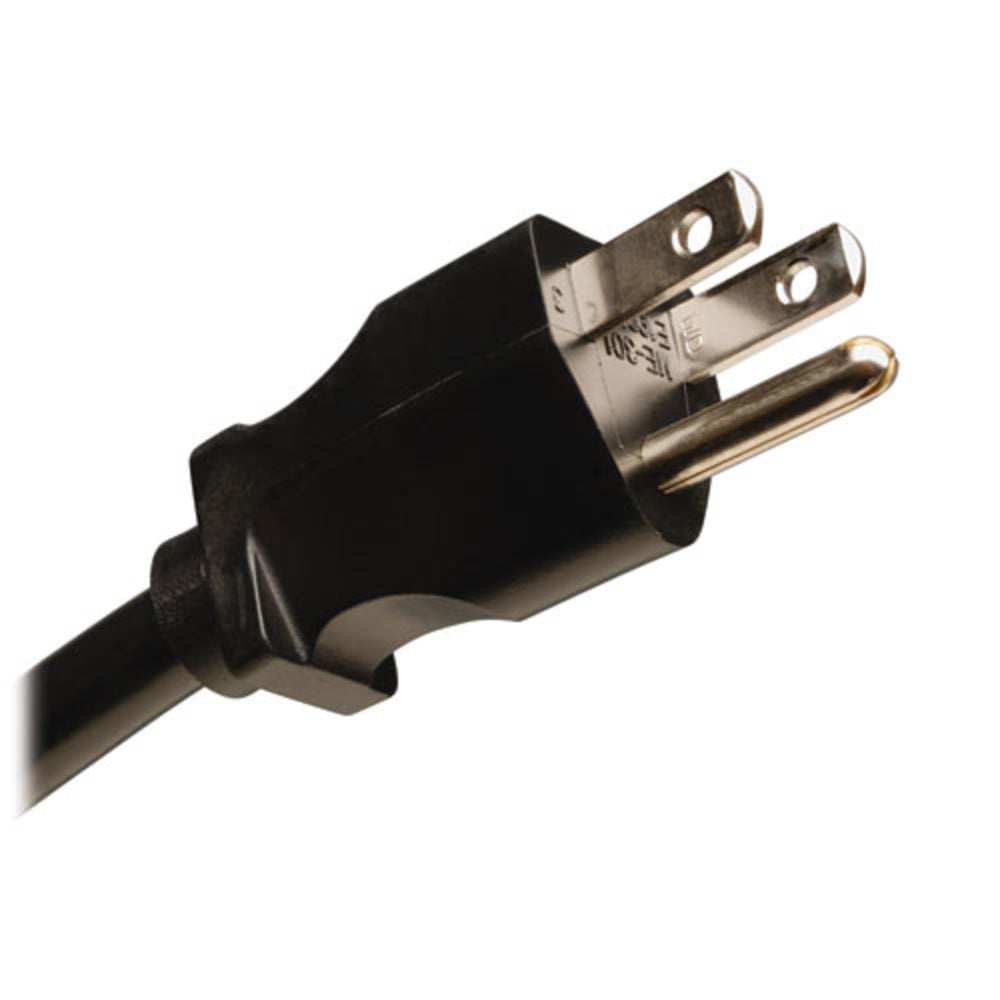

• NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord

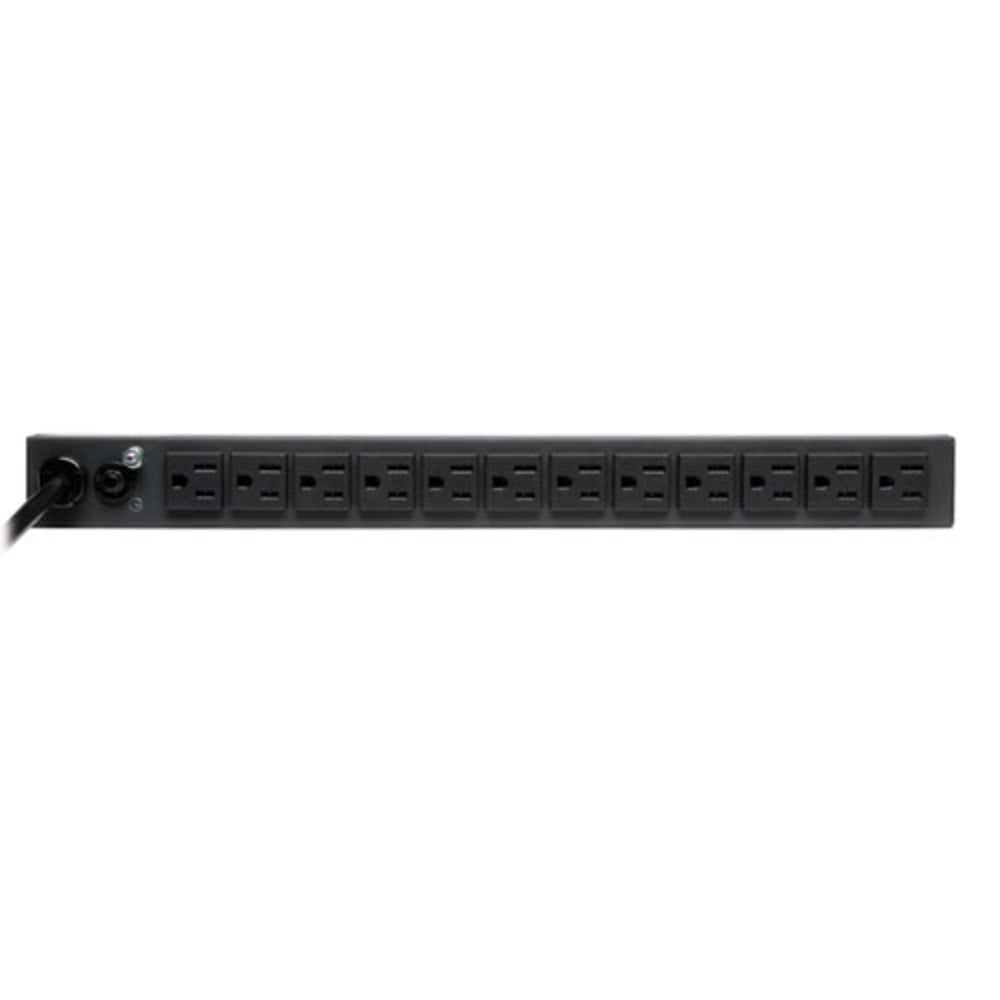

• 13 NEMA 5-15R outlets (1 front / 12 rear)
• Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wall-mount and under-counter mounting
• Mounting ears are reversible for front or rear-facing rackmount installation
• Optional PDUSIDEBRKT enables 0U vertical installation in compatible racks
• Back-panel grounding lug
• RoHS-compliant

Learn More:

• Power Distribution Unit (PDU) on Wikipedia
• Uninterruptible Power Supply (UPS) on Wikipedia

Product: Tripp-Lite PDU1215 1U 12 Rear-Facing Outlets 15-Amp Switchless UPS
