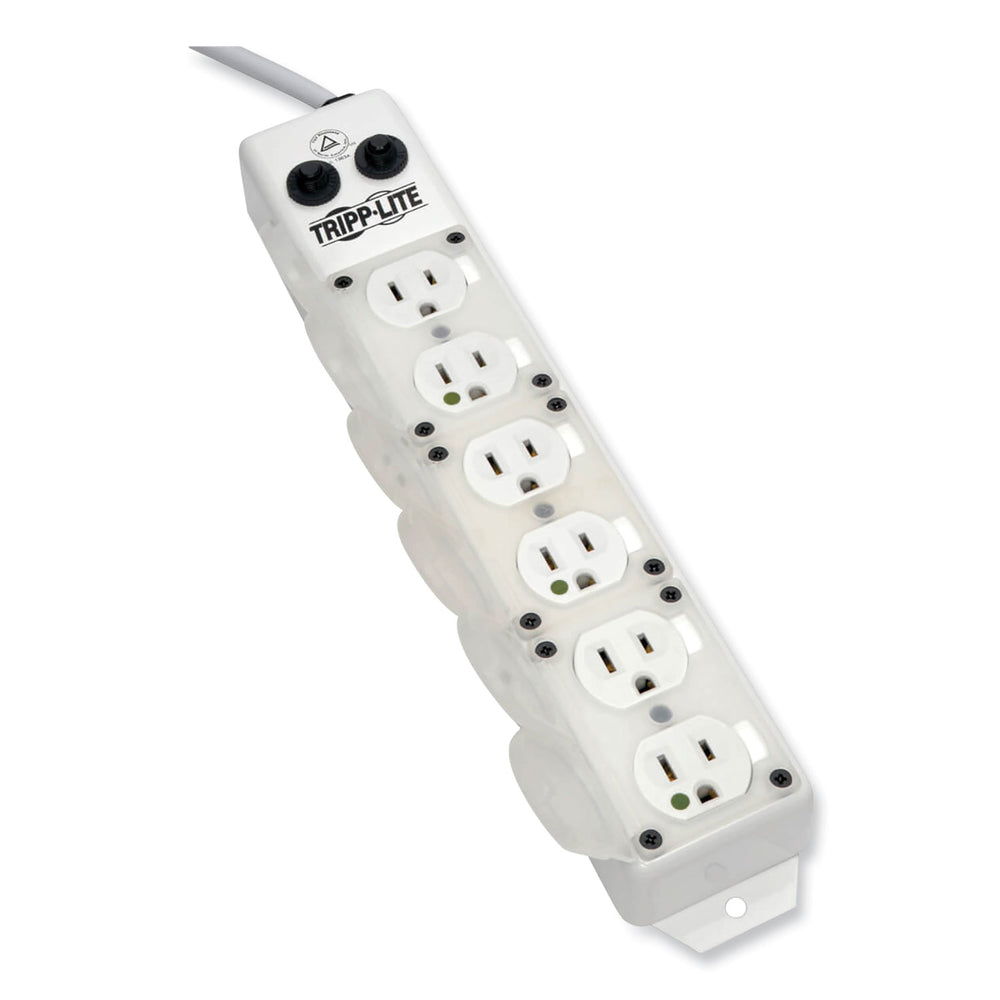

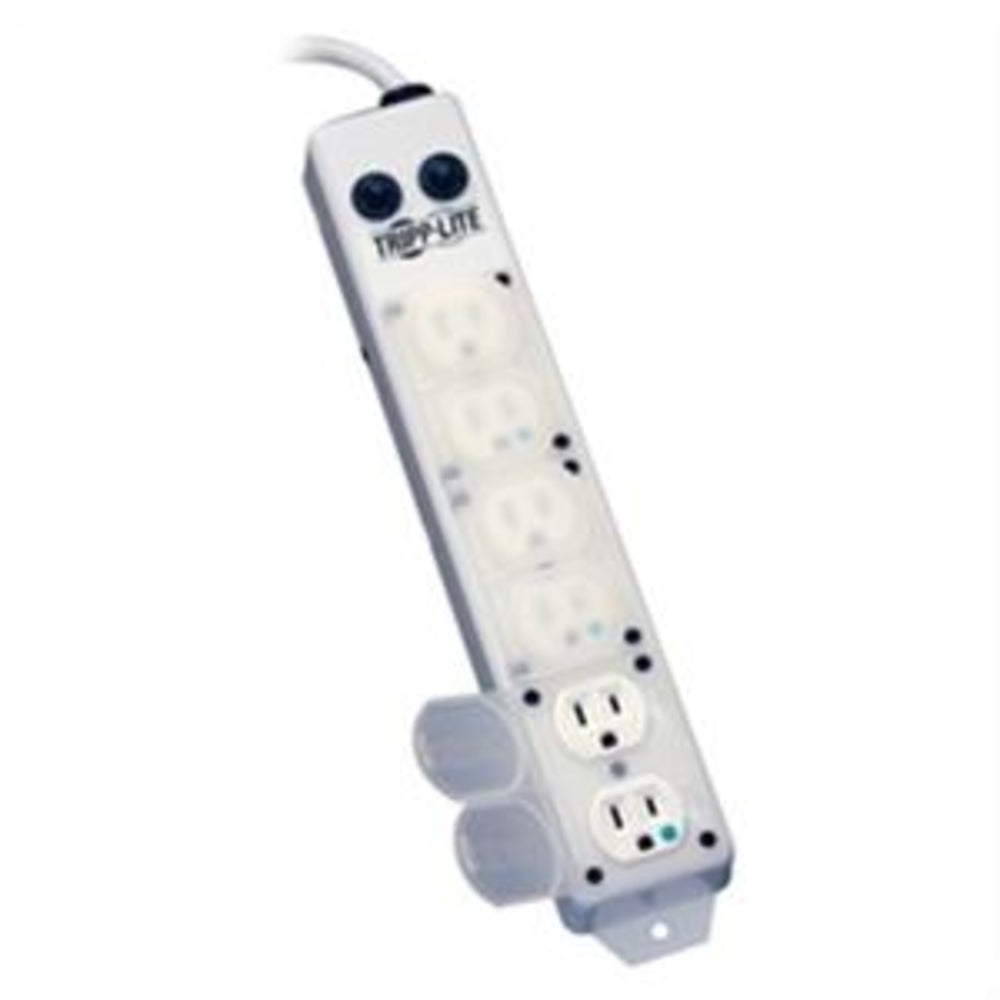

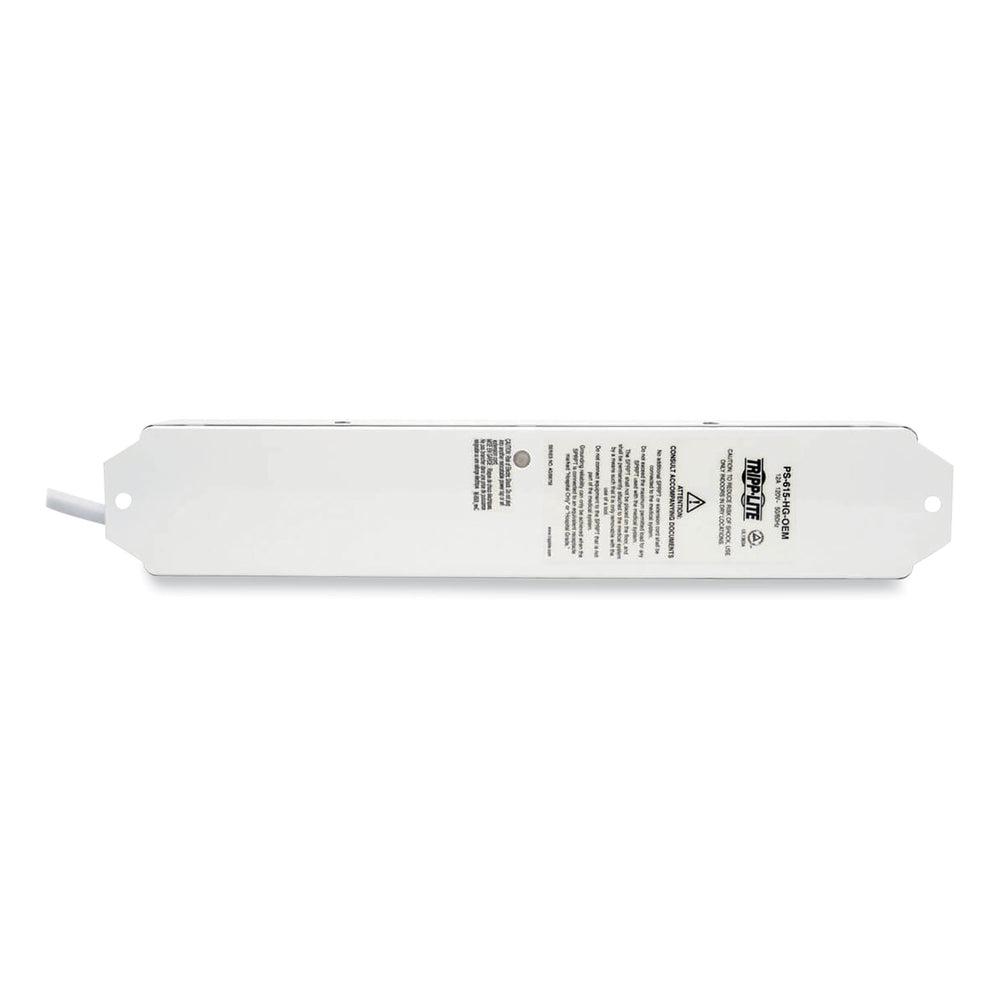

Tripp-Lite PS-615-HG-OEM Surge 6-Outlet Medical Grade Strip 120V 50/60Hz

The Tripp-Lite PS-615-HG-OEM Surge 6-Outlet Medical Grade Strip is designed to provide reliable power to movable plug-connected components in various healthcare environments such as operating rooms, patient-care vicinities, therapy rooms, imaging environments, and administrative areas. This power strip is compliant with UL 1363A specifications and features a NEMA 5-15P-HG hospital-grade plug and six NEMA 5-15R-HG hospital-grade outlets with integrated locking safety covers.

Key Features

• Integrated locking outlet safety covers block access to unused outlets
• Dual, resettable built-in 15A circuit breakers protect against dangerous overloads
• Switchless design prevents accidental shut-off

Specifications

• Output:
• Frequency Compatibility: 50 / 60 Hz
• Output Receptacles: (6) 5-15R-HG
• Circuit Breaker (amps): 15
• Overload Protection: 2 x 15amp breaker (1 line, 1 neutral)
• Outlet Orientation: Single row of 6
• Right-Angle Outlets: No
• Input:
• Nominal Input Voltage(s) Supported: 120V AC
• Recommended Electrical Service: 15A, 120V

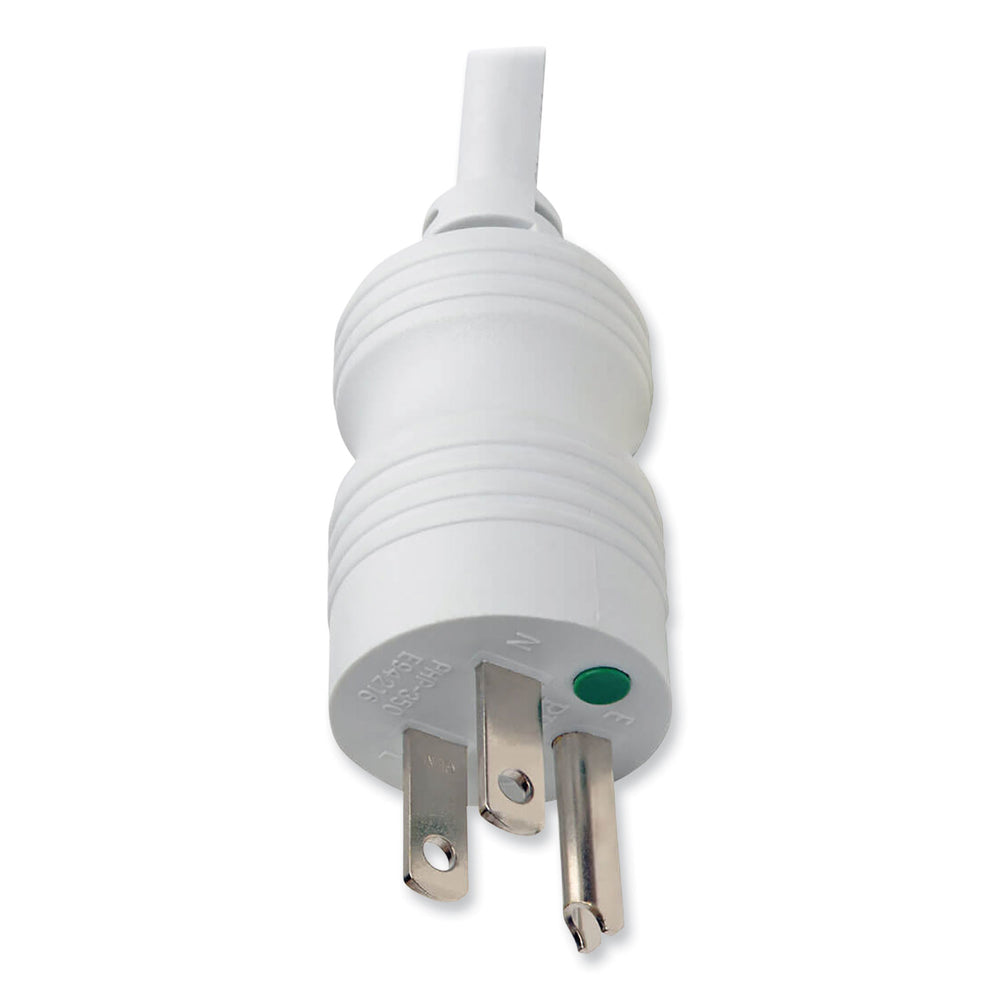

• Input Connection Type NEMA: 5-15P-HG
• Input Cord Length (m): 4.572
• Input Cord Gauge Type: 14 gauge, SJT
• Voltage Compatibility (VAC): 120
• User Interface, Alerts, and Controls:
• Switches: No power switch
• Material of Construction:
• Metal
• Integrated Keyhole Mounting Tabs:
• Keyhole mounting tabs and flanges enable mounting to a variety of surfaces
• Receptacle Color:
• White
• Outlets Measurement (Center to Center):
• 38.7mm
• Keyhole Slot Mounting Measurement (Center to Center):
• Distance between end tabs 330.20mm
• Additional International Approvals:
• TUV tested to UL 1363A
• Package Contents:
• PS-615-HG-OEM UL 1363A Medical-Grade Power Strip with six 15A Hospital-Grade Outlets, Safety Outlet Covers, and 15 ft. Cord
• Owner's Manual with maintenance requirements
• Item Dimension (L inchxW inchxH inch):
• 4 x 6 x 15
• Weight:
• 3.55 lb
• Warranty Information:
• Lifetime limited warranty

Learn More

• UL 1363A - Wikipedia

Product: Tripp-Lite PS-615-HG-OEM Surge 6Outlet Medical Grade Strip 120V 50/60Hz Retail

Brand: Tripp Lite

Model: PS-615-HG-OEM

Shipping Weight: 3.60 lb

Shipping Height: 2.30 in

Shipping Width: 6.10 in

Shipping Length: 14.20 in
