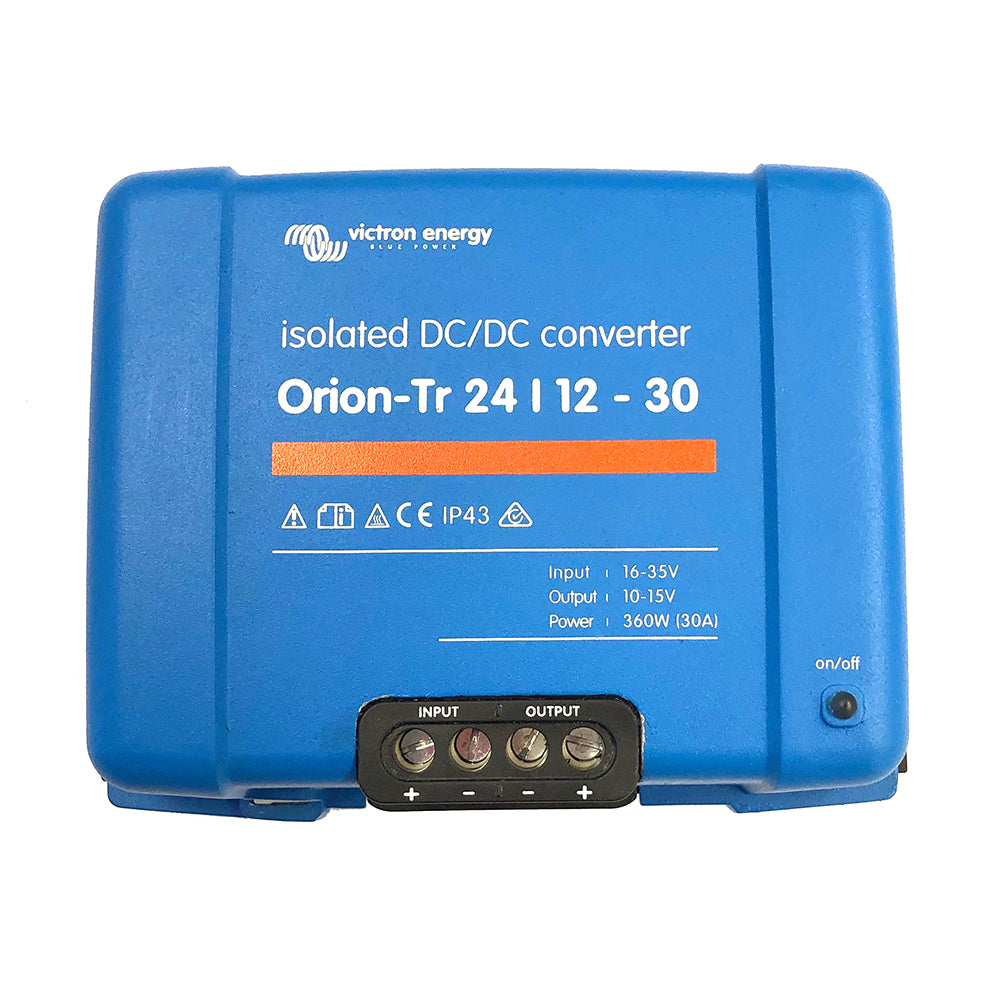

Victron Energy Orion-Tr 24V to 12V 30A DC-DC Converter (Ori241240110)

The Victron Energy Orion-Tr 24V to 12V 30A DC-DC Converter is a high-quality and reliable converter designed to efficiently convert 24VDC power to 12VDC power. With a maximum output current of 30A, this converter is capable of handling a wide range of applications and can be used as a battery charger in a 24V system.

Features:

• Remote on-off: The remote on-off feature eliminates the need for a high current switch in the input wiring. It can be operated with a low power switch or by using the engine run/stop switch.
• Adjustable output voltage: This converter can be used as a battery charger for charging a 12V starter or accessory battery in a 24V system.
• Short circuit proof and paralleling: All models are short circuit proof and can be paralleled to increase the output current. You can connect an unlimited number of units in parallel.
• High temperature protection: The output current will automatically reduce at high ambient temperatures, ensuring safe operation.
• IP43 protection: When installed with the screw terminals oriented downwards, this converter offers IP43 protection against solid objects greater than 1mm and water spray from up to 60 degrees from vertical.
• Screw terminals: The installation process is made easy with screw terminals. No special tools are required.
• Input fuse: The 12V and 24V input models are equipped with an input fuse for added safety. Please note that the fuse is not replaceable.

Specifications:

• Input voltage range: 18 - 35VDC
• Output voltage: 12VDC
• Output current: 30A
• Efficiency: Up to 95%
• Dimensions: 130 x 186 x 70 mm
• Weight: 1.2 kg

Learn More:

For more information about DC-DC converters, you can visit the DC-to-DC converter Wikipedia page.

Product: Victron Energy Orion-Tr 24V to 12V 30A DC-DC Converter (Ori241240110)

Brand: Victron Energy

Model: ORI241240110

Shipping Weight: 4.10 lb

Shipping Height: 4.00 in

Shipping Width: 6.00 in

Shipping Length: 8.00 in
