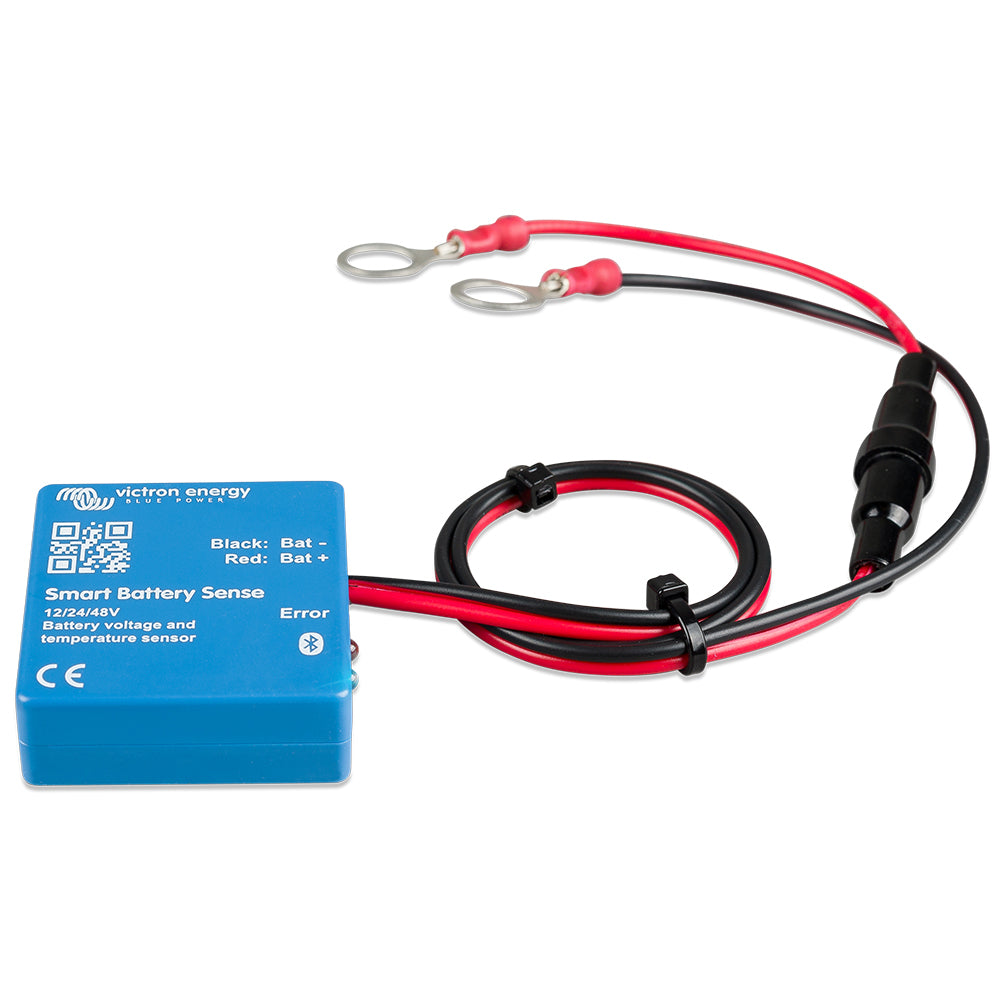

Victron Smart Battery Sense with 10m Long Range

The Victron Smart Battery Sense with 10m Long Range is a versatile VE.Bus Smart dongle that offers Bluetooth Smart enabled VE.Bus interface, battery temperature and voltage sensing capabilities. It provides real-time system information directly to your smartphone through the VictronConnect app, which is available for free. This dongle is specifically designed for use with Multi-inverter/chargers, allowing compensation for possible cable losses during charging and discharging.

The Smart Battery Sense Long Range dongle is essential for accurate temperature-compensation during battery charge cycles. It is particularly useful for MultiPlus-II models that are not connected to a GX device and CANbus battery, as it is currently the only way to add an "on-battery" sensing capability to these models.

Whether you have a GX device or not, the dongle can be seamlessly integrated into your system. In systems with a GX device and another source of temperature and voltage data, such as a CANbus battery, the CCGX data will take precedence over the dongle's information. However, the dongle will still provide live-information through its VictronConnect interface and can perform firmware updates without an internet connection.

If your system does not have a GX device, the Smart Battery Sense dongle becomes the primary source of voltage and temperature data. Other connected devices can utilize this information for voltage compensation. In systems with a Multiplus-II, dongle, and GX device but no other source of temperature and voltage, data from the dongle will also be used.

The VE.Bus Smart dongle is equipped with two methods for battery temperature sensing. The default method utilizes the dongle's on-board temperature sensor, which senses the battery temperature directly from the battery casing when the dongle is mounted onto it using the adhesive attachment. The second method, which provides improved battery temperature sensing, involves using an optional battery-terminal mounted sensor. When connected, this sensor overrides the default sensor, and the dongle utilizes this method instead.

Product Features:

• Bluetooth Smart enabled VE.Bus interface
• Battery temperature and voltage sensing
• Real-time system information on your smartphone
• Compatible with Multi-inverter/chargers
• Allows compensation for cable losses during charging and discharging
• Accurate temperature-compensation during battery charge cycles
• Integrates with systems with or without a GX device
• Provides primary source of voltage and temperature data in systems without a GX device
• On-battery sensing capability for MultiPlus-II models
• Default on-board temperature sensor with optional battery-terminal mounted sensor for improved sensing

Specifications:

• Range: Up to 10 meters
• Compatible with VictronConnect app
• Supports firmware updates without internet connection
• Dimensions: [Insert dimensions]
• Weight: [Insert weight]

Learn More

For more information about VE.Bus Smart dongle, battery temperature sensing, and related topics, please visit the following Wikipedia pages:

• Victron Energy
• Bluetooth Low Energy
• Inverter
• Battery

Product: Victron Smart Battery Sense with 10m Long Range

Brand: Victron Energy

Model: SBS050150200

Shipping Weight: 0.10 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 3.00 in
