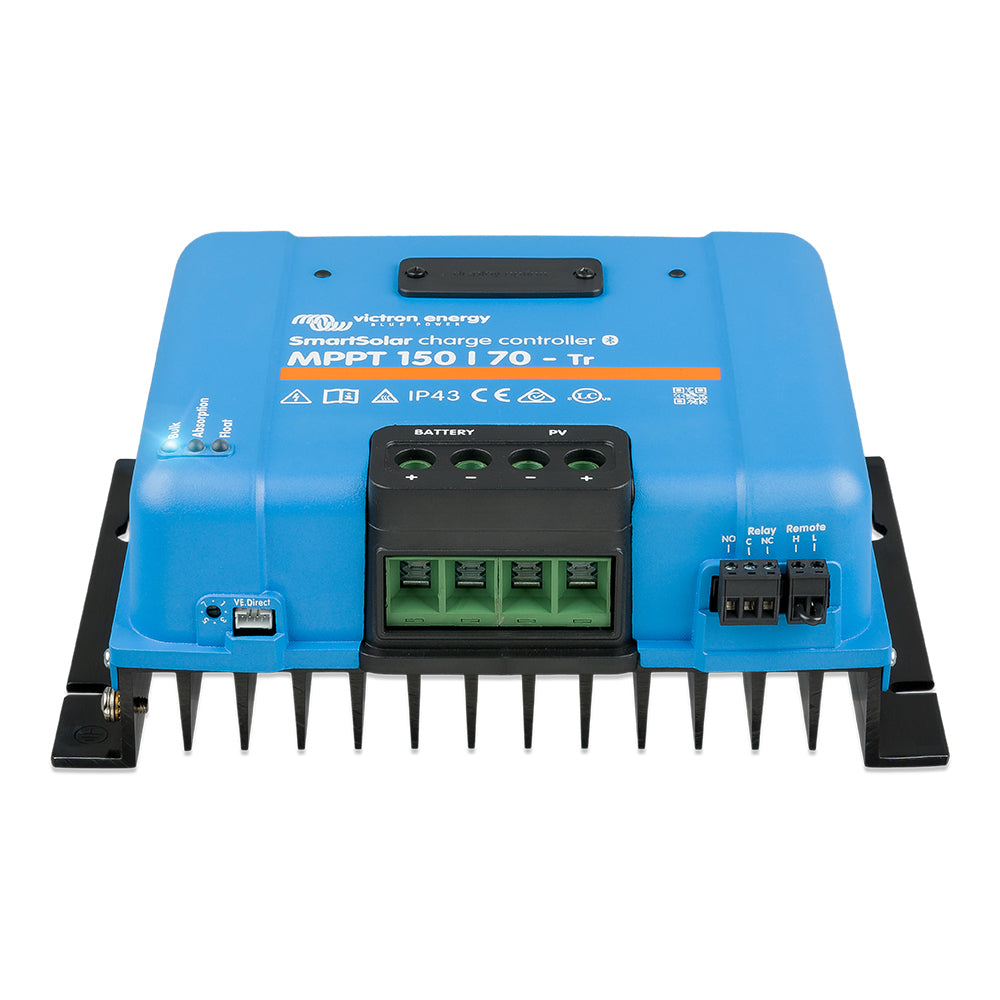

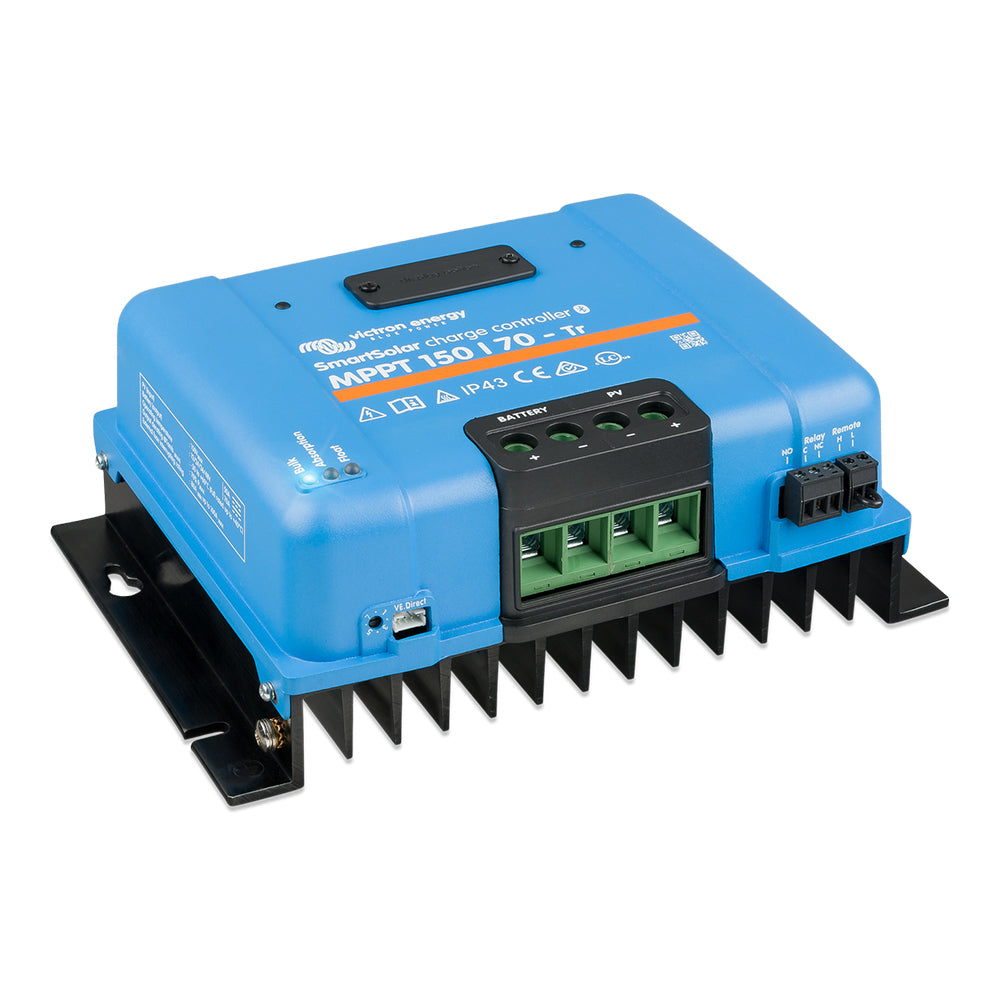

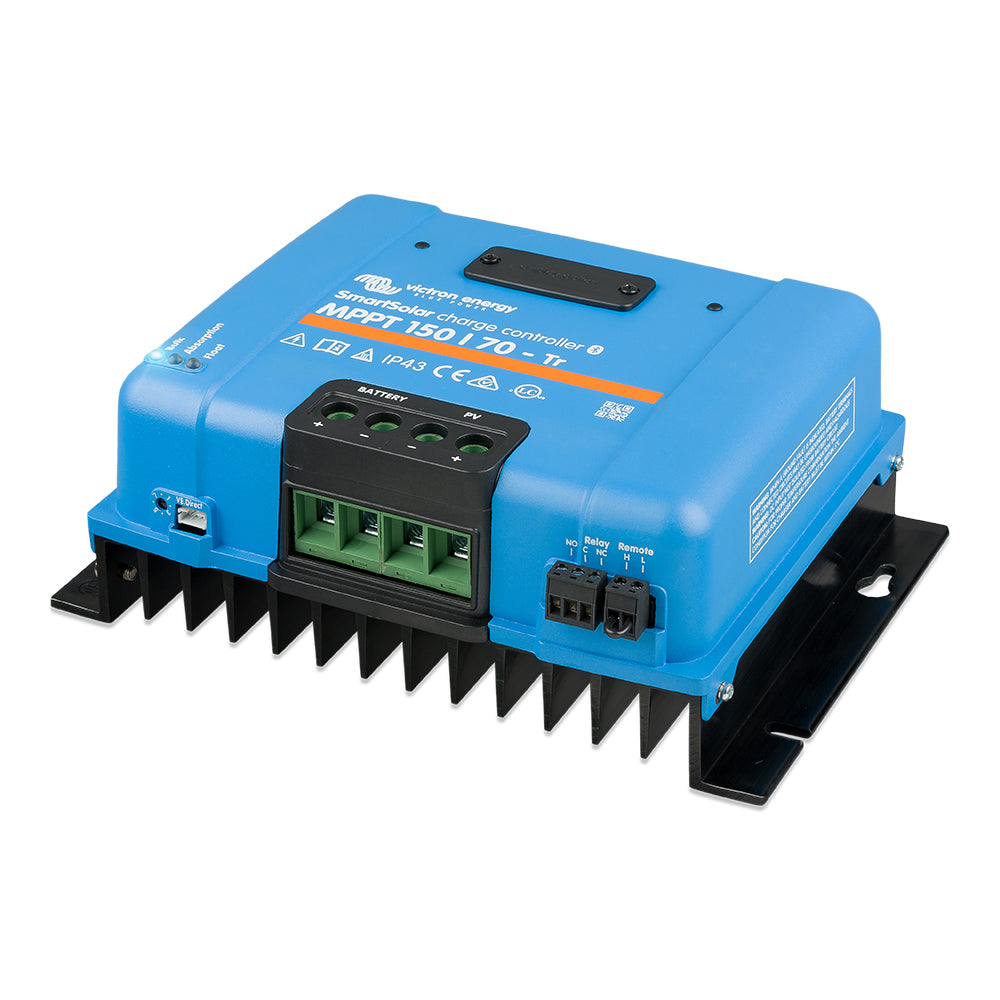

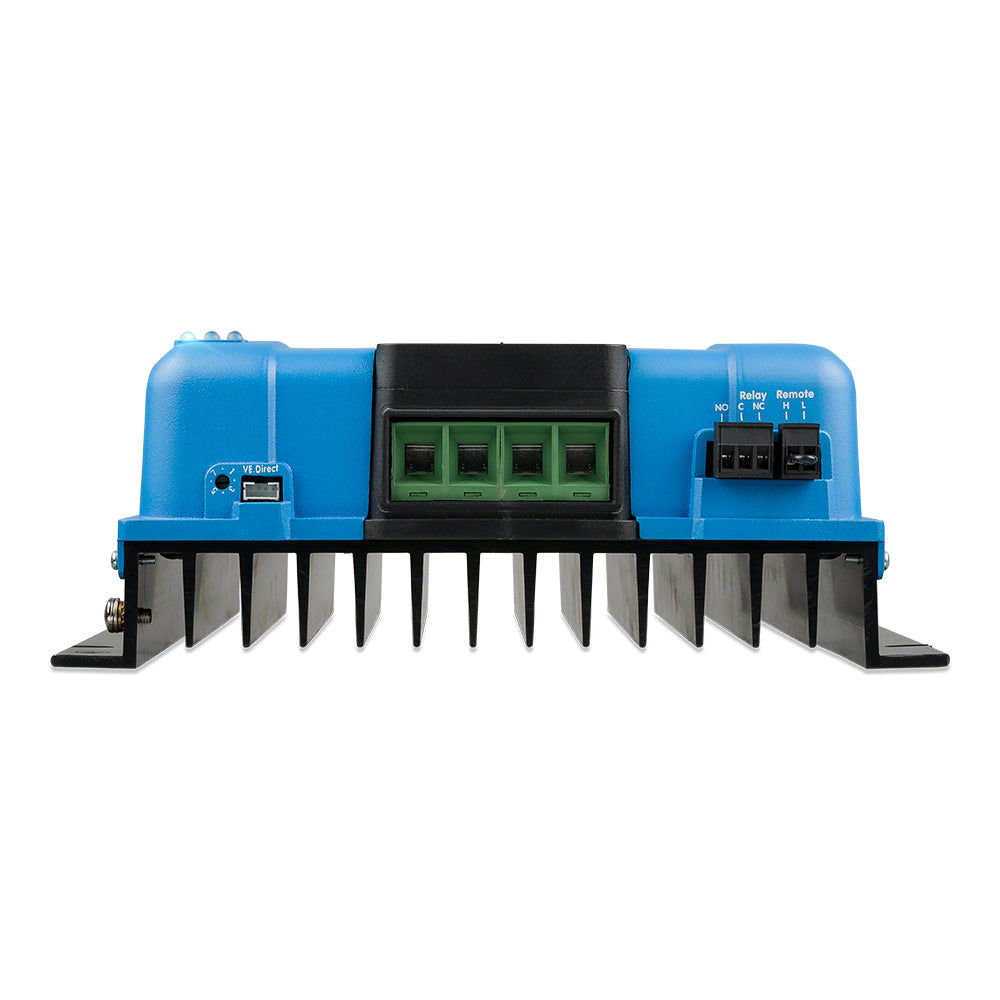

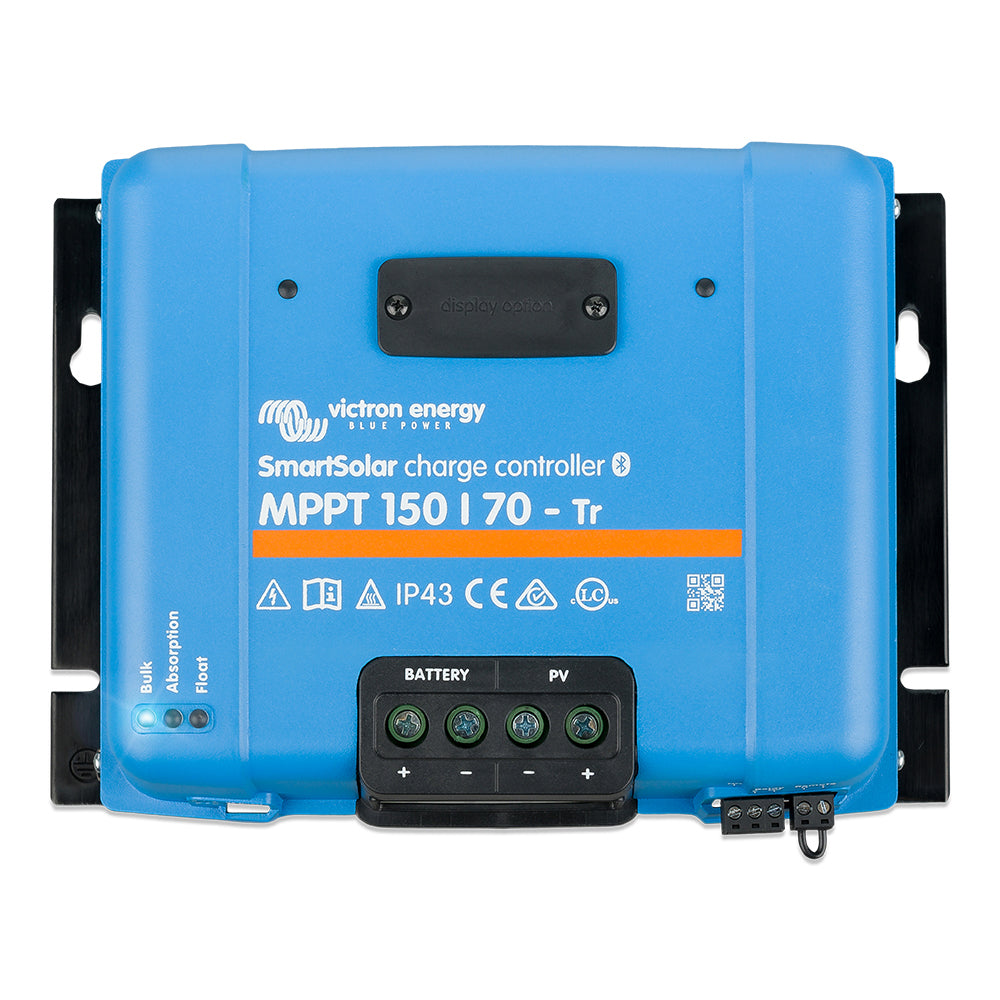

SmartSolar MPPT 150/70 - TR Solar Charge Controller

The Victron Energy SCC115070211 SmartSolar MPPT 150/70 - TR Solar Charge Controller is a high-performance charge controller designed to maximize energy harvest from solar panels. With its advanced features and efficient design, it is an ideal choice for both residential and commercial solar systems.

Features:

• Bluetooth Smart built-in: The wireless solution to set-up, monitor, update, and synchronize SmartSolar Charge Controllers.
• Ultra-fast Maximum Power Point Tracking (MPPT): This controller utilizes an ultra-fast MPPT algorithm to improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers, especially in case of a clouded sky or changing light intensity.
• Advanced Maximum Power Point Detection: In case of partial shading conditions, the innovative SmartSolar algorithm detects and locks to the optimum MPP, maximizing energy harvest.
• Outstanding conversion efficiency: With a maximum efficiency exceeding 98%, this charge controller ensures minimal energy loss during the charging process.
• Flexible charge algorithm: The charge algorithm is fully programmable, allowing customization based on specific requirements. Additionally, eight preprogrammed algorithms are available for easy selection.
• Extensive electronic protection: The controller incorporates various protection mechanisms, including over-temperature protection, power derating at high temperatures, PV short circuit protection, PV reverse polarity protection, and PV reverse current protection.
• Internal temperature sensor: The built-in temperature sensor compensates absorption and float charge voltage based on temperature variations.
• Optional external battery voltage and temperature sensing via Bluetooth: Using a Smart Battery Sense or a BMV-712 Smart Battery Monitor, battery voltage and temperature can be communicated to the SmartSolar Charge Controller for enhanced monitoring and control.
• VE.Direct: This controller offers a wired data connection to a Color Control GX, other GX products, PC, or other devices for data monitoring and management.
• Remote on-off: It supports remote on-off functionality, allowing connection to a VE.BUS BMS or similar systems.
• Programmable relay: The controller features a programmable relay that can be configured to trip on an alarm or other events, providing additional control capabilities.

Please contact your dealer for any returns, repairs, or support issues related to this product.

Learn More

• Maximum Power Point Tracking (MPPT) on Wikipedia
• Photovoltaic Array on Wikipedia
• Solar Energy on Wikipedia

Product: Victron Smartsolar MPPT 150/70 TR Solar Charge Controller SCC115070211

Brand: Victron Energy

Model: SCC115070211

Shipping Weight: 8.05 lb

Shipping Height: 6.00 in

Shipping Width: 10.00 in

Shipping Length: 11.00 in
