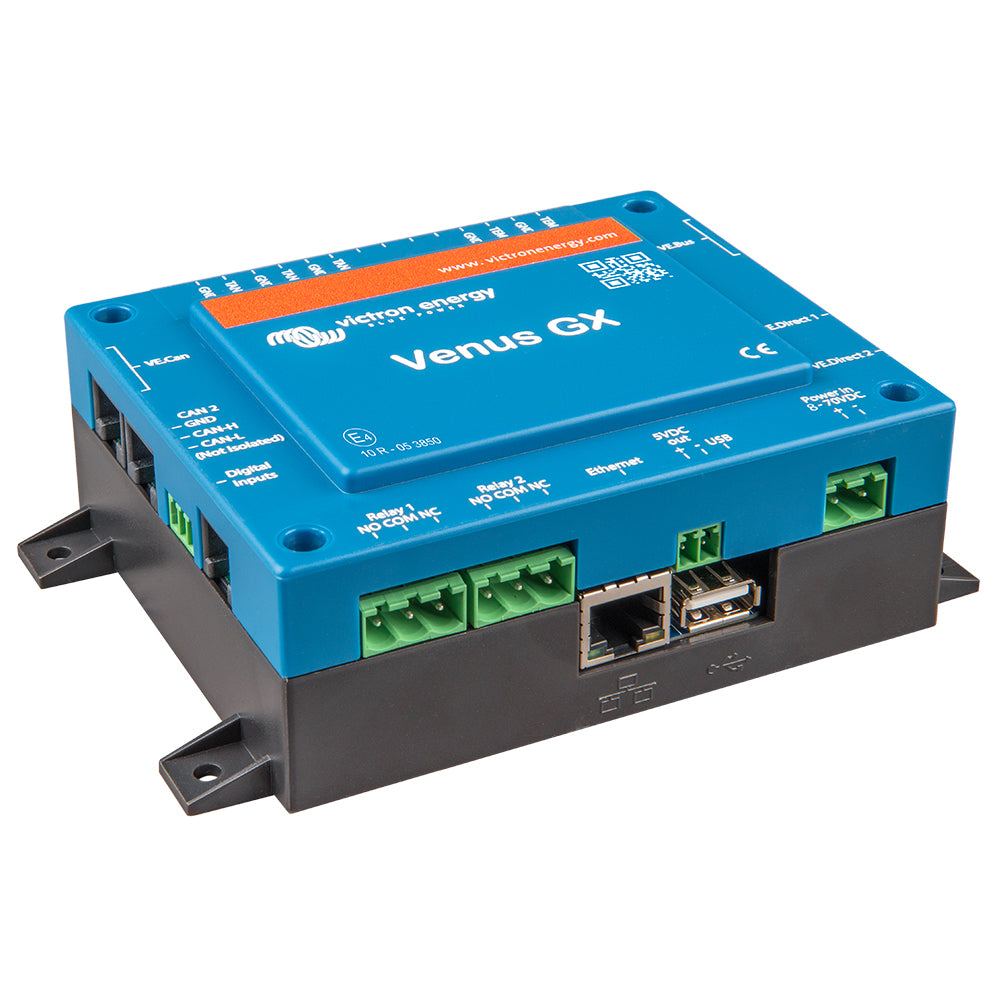

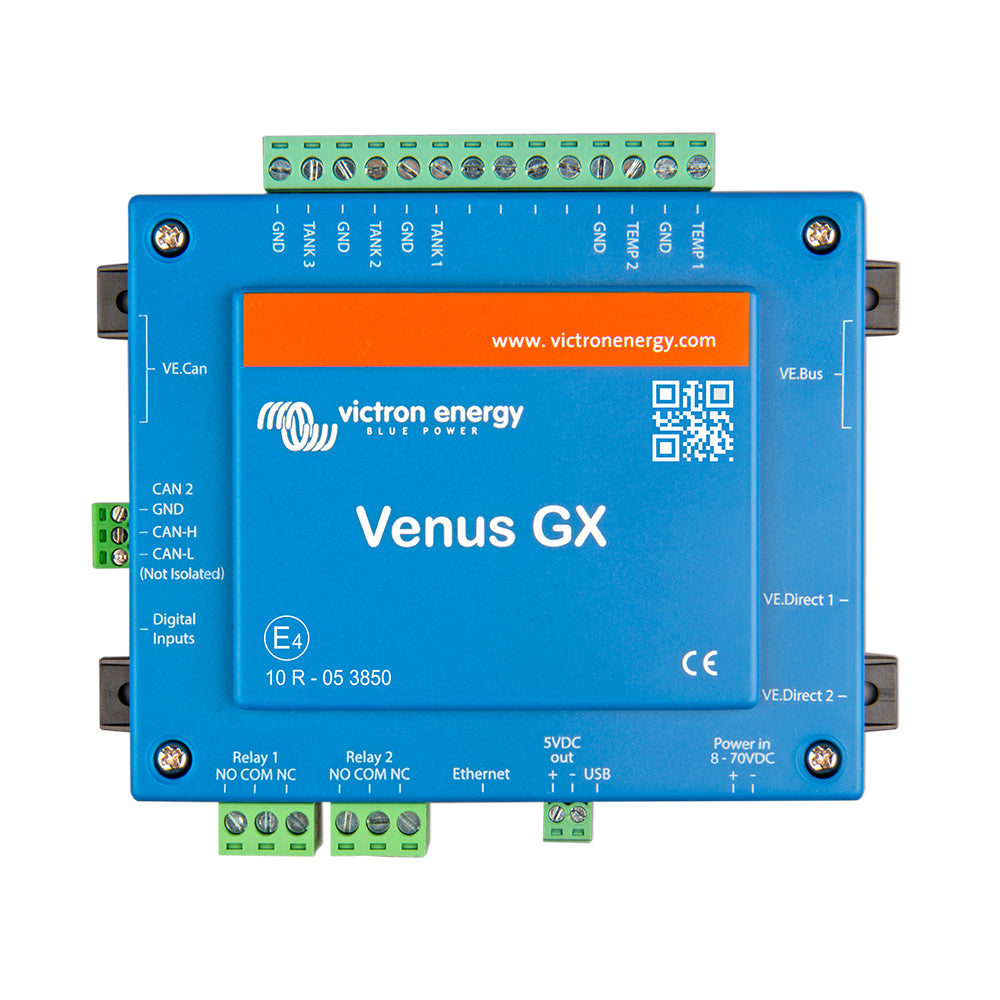

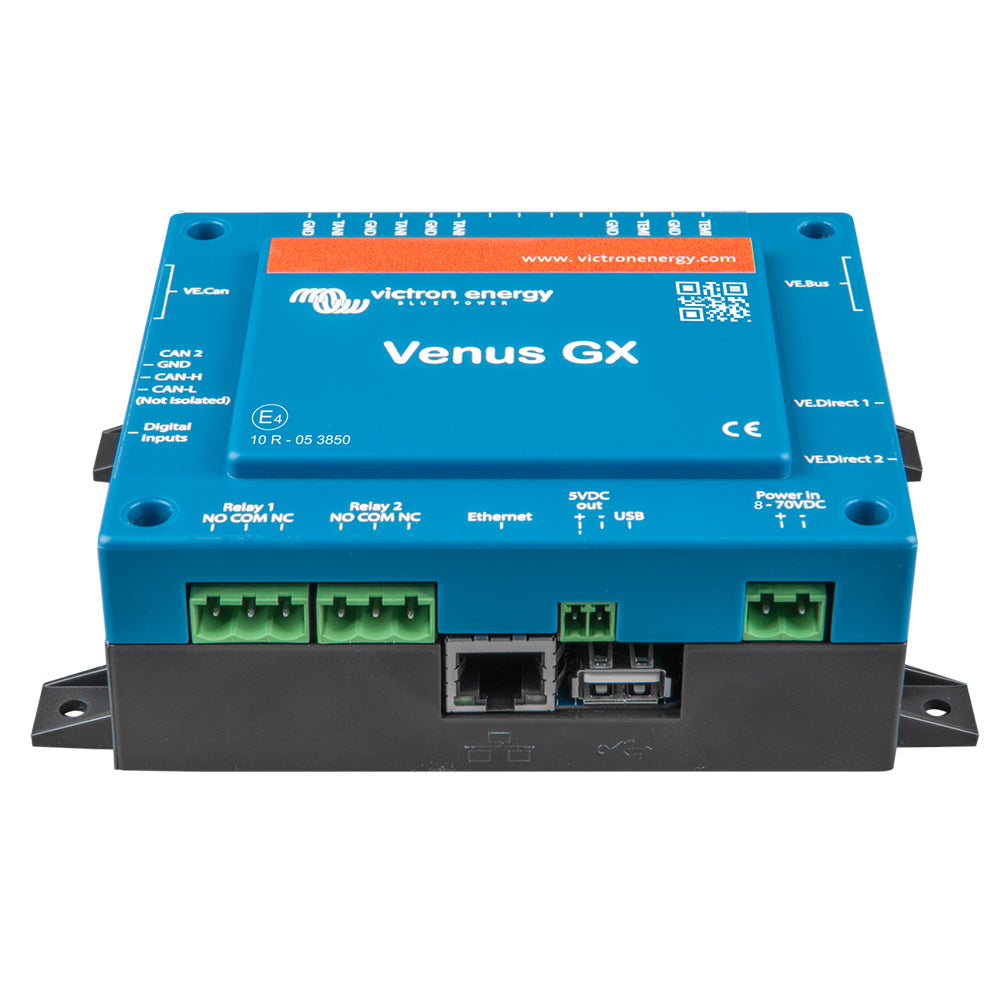

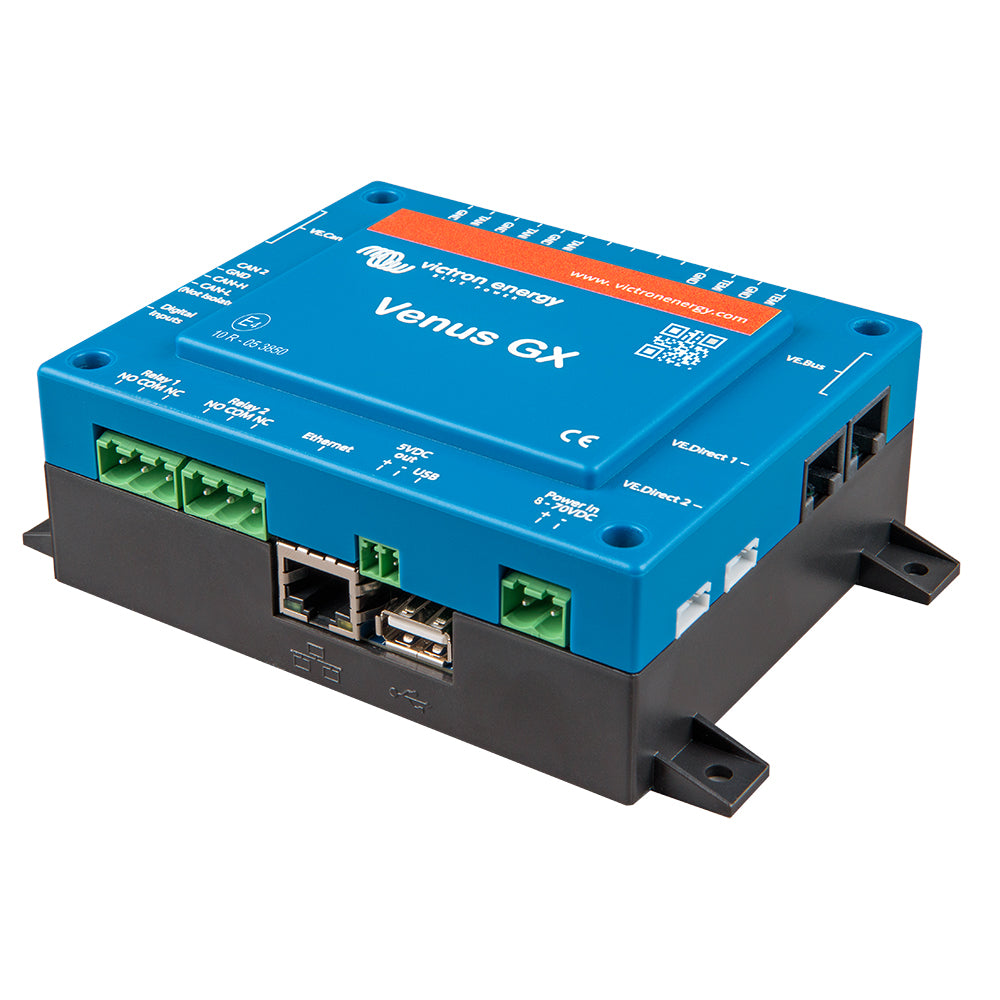

Victron Venus GX Control BPP900400100 - Energy Management System (No Display)

The Victron Venus GX Control BPP900400100 is an energy management system that provides intuitive control and monitoring for all Victron power systems. It is compatible with a wide range of Victron products including inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt, and more.

It features automatic genset start/stop, a highly customizable start/stop system that uses state of charge, voltage, load, and other parameters. It also has data logging capabilities, where all data is sent to the VRM Portal when connected to the internet. When there is no internet connection available, the Venus GX will store the data internally, up to 48 hours. By inserting a micro SD-card or USB stick, more data can be stored for offline analysis.

The Venus GX Control BPP900400100 also has a remote console on VRM, which allows for easy access to the device for setting up and monitoring. It supports multis and quattros, including split-phase and three-phase systems. Changing configuration is possible, but only remotely via the internet, not without an internet connection.

Other features of the Venus GX Control BPP900400100 include:

• VRM Online Portal - All readings are forwarded to the free remote monitoring website, the VRM Online Portal. This allows for easy monitoring and control of all connected devices.
• Data Logging - When connected to the internet, all data is sent to the VRM Portal. When there is no internet connection available, the Venus GX will store the data internally, up to 48 hours. By inserting a micro SD-card or USB stick, more data can be stored for offline analysis.
• Supported Products - The Venus GX Control BPP900400100 supports a wide range of Victron products, including BlueSolar MPPT Solar Chargers with a VE.Direct port, SmartSolar MPPTs with VE.Can port, BMV-700 family, BMV-600 family, Lynx Ion + Shunt, Lynx Ion BMS, Lynx Shunt VE.Can, Skylla-i battery chargers, NMEA2000 tank sensors, and Fronius PV Inverters.

Specifications:

• Model: BPP900400100
• Type: Energy Management System
• Display: No
• Compatibility: Compatible with a wide range of Victron products
• Remote Access: Yes, via VRM or built-in WiFi Access Point
• Data Logging: Yes, up to 48 hours internally or with external micro SD-card/USB stick

Learn More:

• Victron Energy on Wikipedia
• VRM Online Portal Demo

Product: Victron Venus GX Control BPP900400100 - Energy Management System (No Display)

Brand: Victron Energy

Model: BPP900400100

Shipping Weight: 0.90 lb

Shipping Height: 3.00 in

Shipping Width: 5.00 in

Shipping Length: 9.00 in
