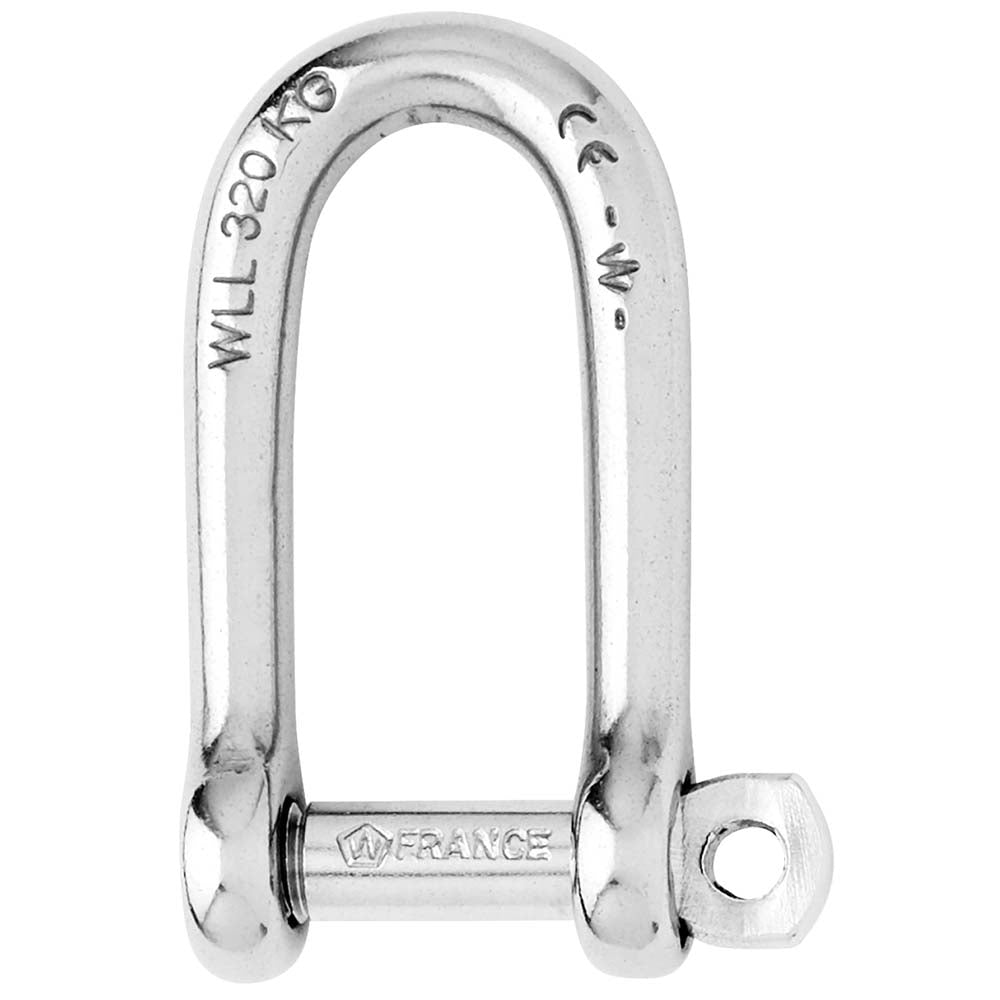

Wichard 01212 Marine Self-Locking Long D Shackle 5mm 3/16"

Self-Locking Long D Shackle - Diameter 5mm - 3/16"

Features:

• Self-locking long shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications
• CE Marking and batch number

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 880
• WLL (lb) 440
• Breaking load (lb) 2200
• Weight (lb) 0.037

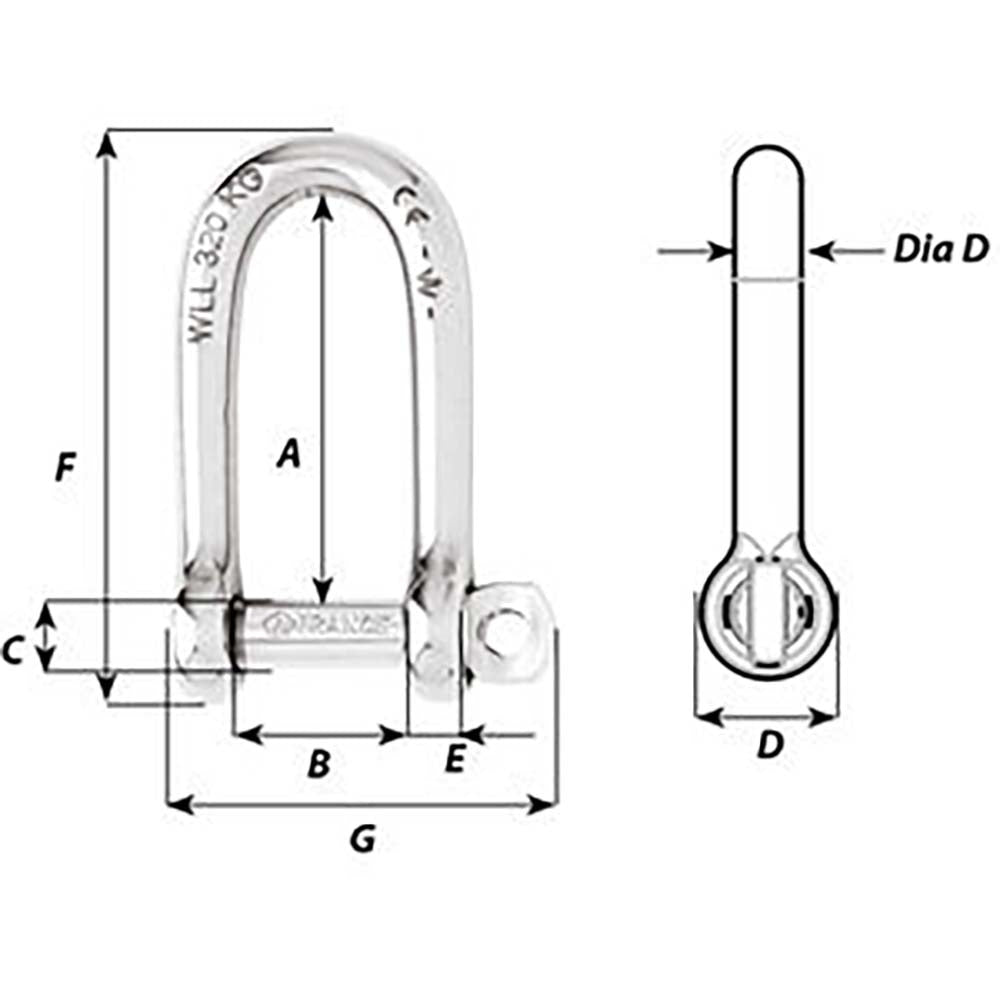

Dimensions (see 2nd image):

• A (inch) 1-9/64"
• B (inch) 25/64"
• C (inch) 13/64"
• D (inch) 25/64"
• D diameter (inch) 13/64"
• E (inch) 5/32"
• F (inch) 1-39/64"
• G (inch) 1-1/32"

Learn More

For more information about shackles, you can visit the following Wikipedia links:

• Shackle
• Stainless Steel

Product: Wichard 01212 Marine Self-Locking Long D Shackle 5mm 3/16"

Brand: Wichard Marine

Model: 01212

Shipping Weight: 0.05 lb

Shipping Height: 1.00 in

Shipping Width: 2.00 in

Shipping Length: 6.00 in
