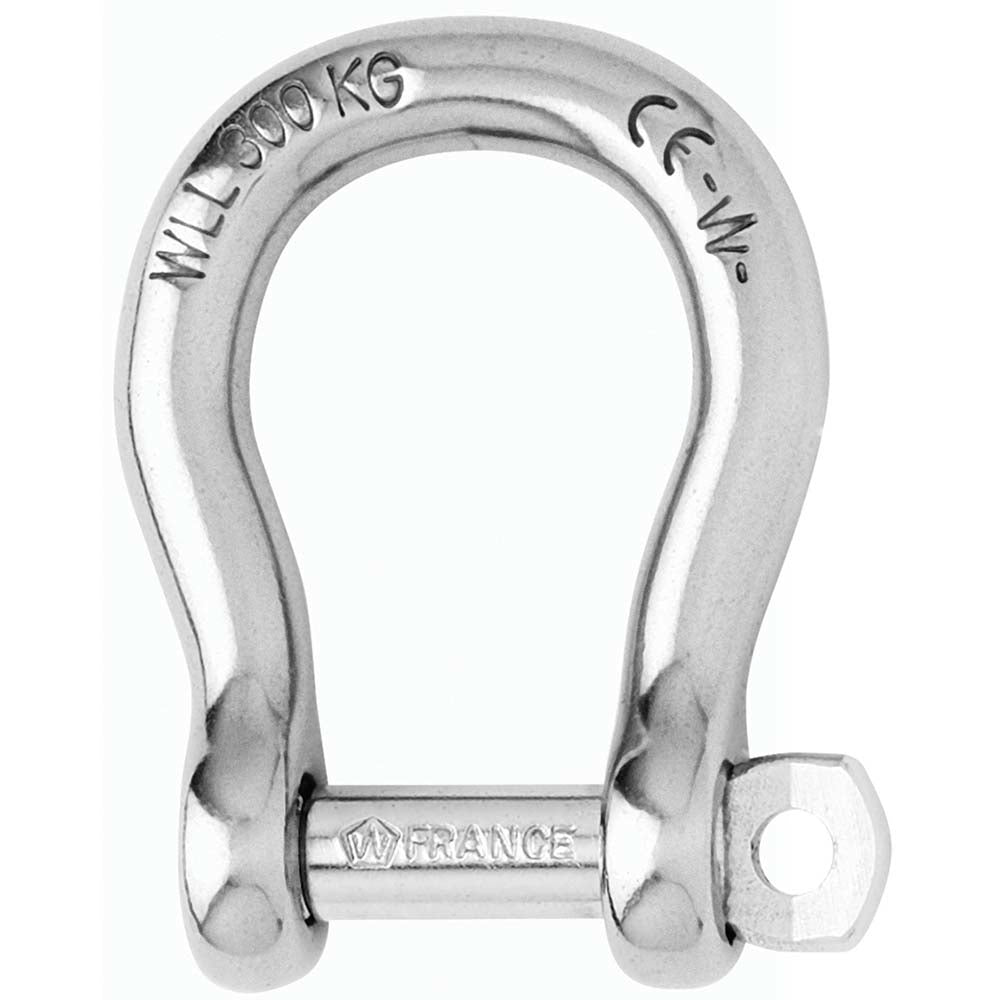

Wichard Marine 4mm Self-Locking Bow Shackle - 5/32" Diameter

The Wichard Marine 4mm Self-Locking Bow Shackle is a high-quality and reliable shackle designed for various marine applications. With a diameter of 5/32" (4mm), this self-locking bow shackle is forged in grade 316L stainless steel, ensuring exceptional durability and resistance to corrosion.

Features:

• Self-locking bow shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e...)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials: 316 stainless steel grade
• Working load (lb): 700
• WLL (lb): 300
• Breaking load (lb): 1540
• Weight (lb): 0.02

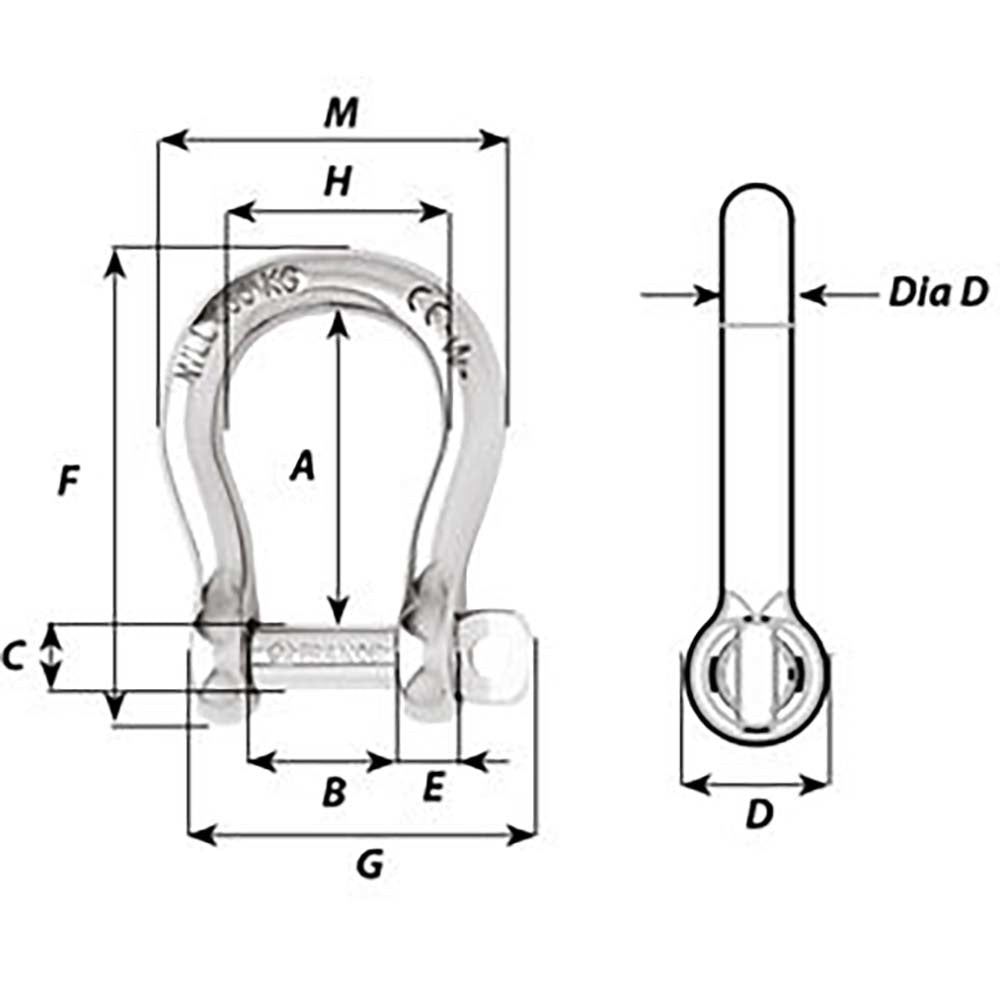

Dimensions:

• A (inch): 45/64"
• B (inch): 5/16"
• C (inch): 5/32"
• D (inch): 5/16"
• D diameter (inch): 5/32"
• M (inch): 53/64"

Learn More:

• Shackle on Wikipedia

Product: Wichard Marine 4mm Self-Locking Bow Shackle - 5/32" Diameter

Brand: Wichard Marine

Model: 01241

Shipping Weight: 0.05 lb

Shipping Height: 1.00 in

Shipping Width: 2.00 in

Shipping Length: 6.00 in
