Em-Trak 430-0009 B951 Class B AIS Transceiver 5W SOTDMA

The Em-Trak 430-0009 B951 Class B AIS Transceiver is a high-power (5W SOTDMA) transceiver that offers advanced performance and ultimate reliability. With em-trak's next-gen technology, this transceiver processes all AIS transmissions in real-time, providing increased range and transmission priority for a complete picture and quick response, even in busy waters.

The B951 is certified as AIS Class B with 5W SOTDMA power, ensuring compliance with global standards such as USCG, FCC, Canada, and Europe. Its SRT-AIS Transceiver Engine delivers superlative and proven performance, while the FLEXI-FIT bracket system allows for easy, convenient, and secure installation.

This transceiver features an internal high-performance GPS receiver and antenna, with an option for an external antenna. It is designed to be water, pressure spray, and damp proof (IPx6, IPx7 certified), and is protected from vibration, shock, and extreme temperatures. Despite its powerful capabilities, the B951 remains small, lightweight, and has ultra-low power consumption, making it a top choice for marine applications.

Features:

• Certified AIS Class B – 5W SOTDMA
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS Transceiver Engine for superlative proven performance
• FLEXI-FIT bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – in class
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 375kg
• Operating temperature: -25&degC to +55&degC
• Storage temperature: -25&degC to +70&degC
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 135mA
• Peak current: 2.5A
• Average power consumption (at 12V): 1.6W
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

Connectors:

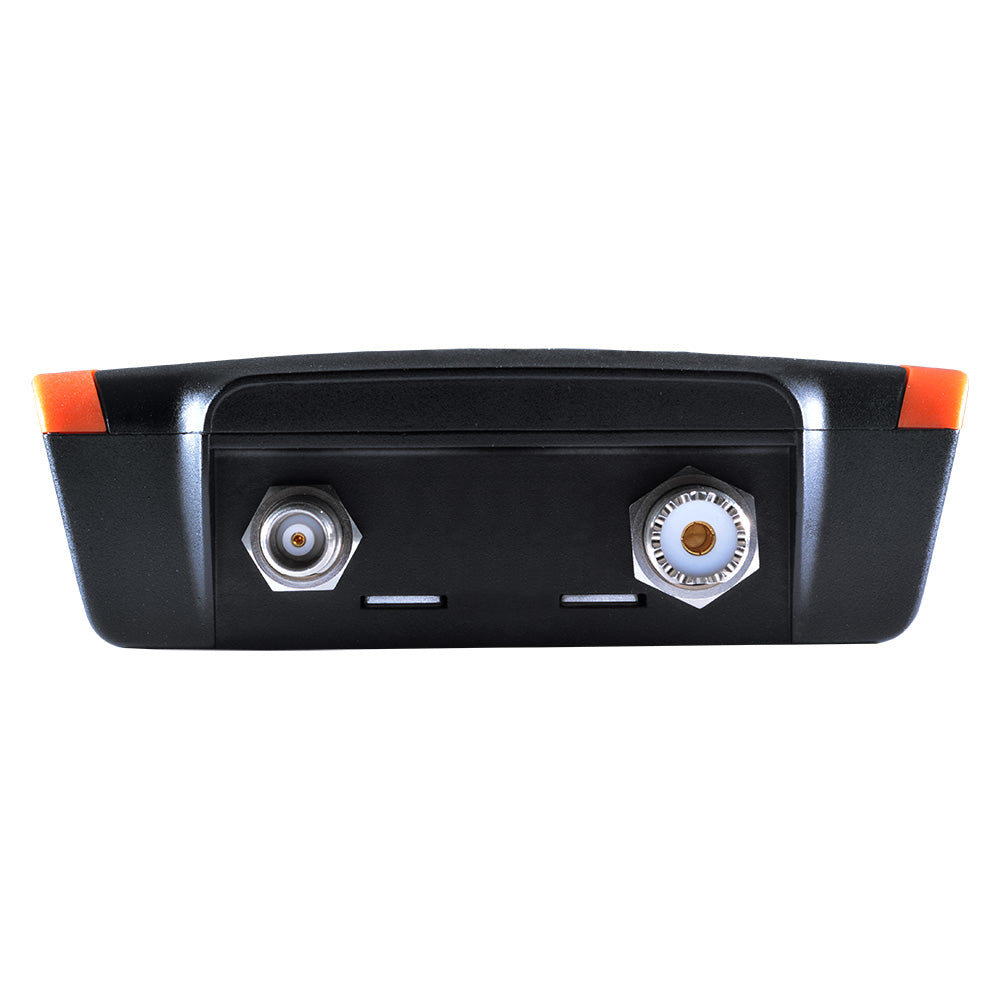

• VHF antenna: SO-239
• GNSS: TNC

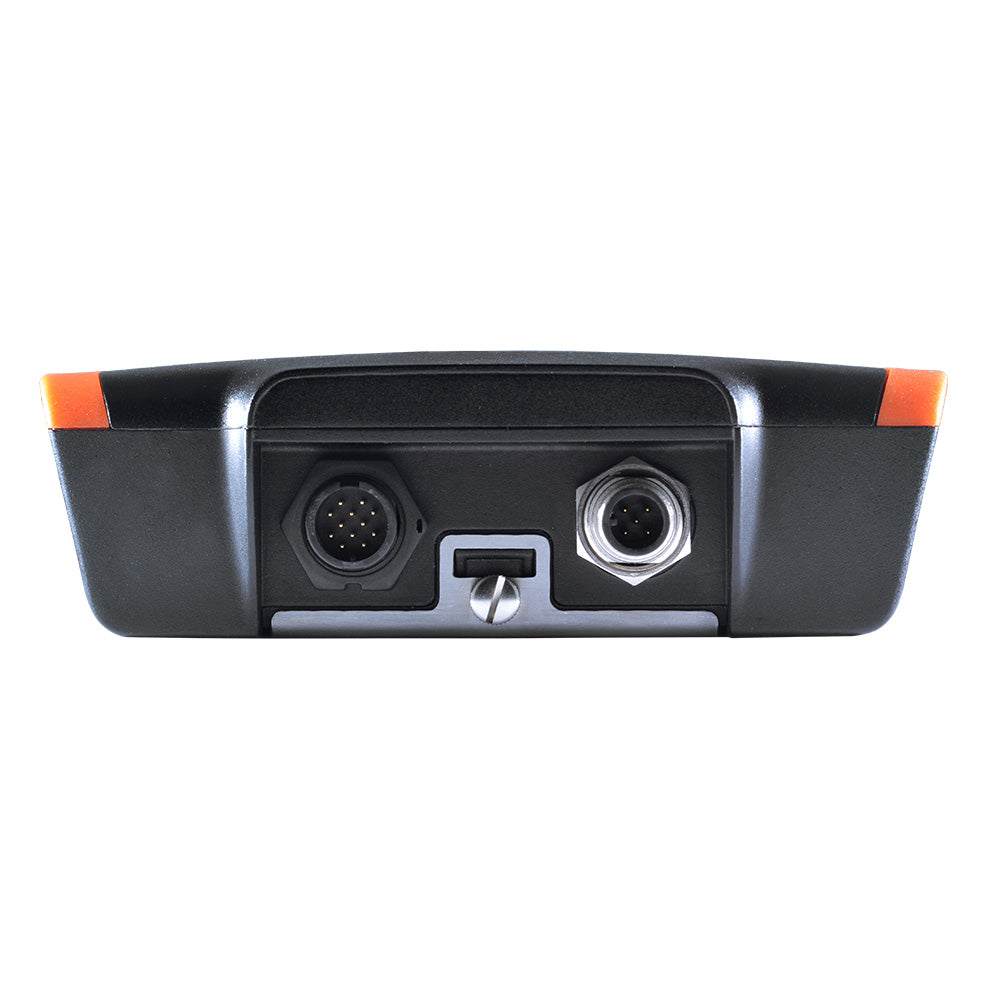

• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data

Standards Compliance:

• AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: Internal or optional external antenna

Product: Em-Trak 430-0009 B951 Class B AIS Transceiver 5W SOTDMA

Brand: Em-Trak

Model: 430-0009

Shipping Weight: 2.00 lb

Shipping Height: 6.00 in

Shipping Width: 7.00 in

Shipping Length: 7.00 in
