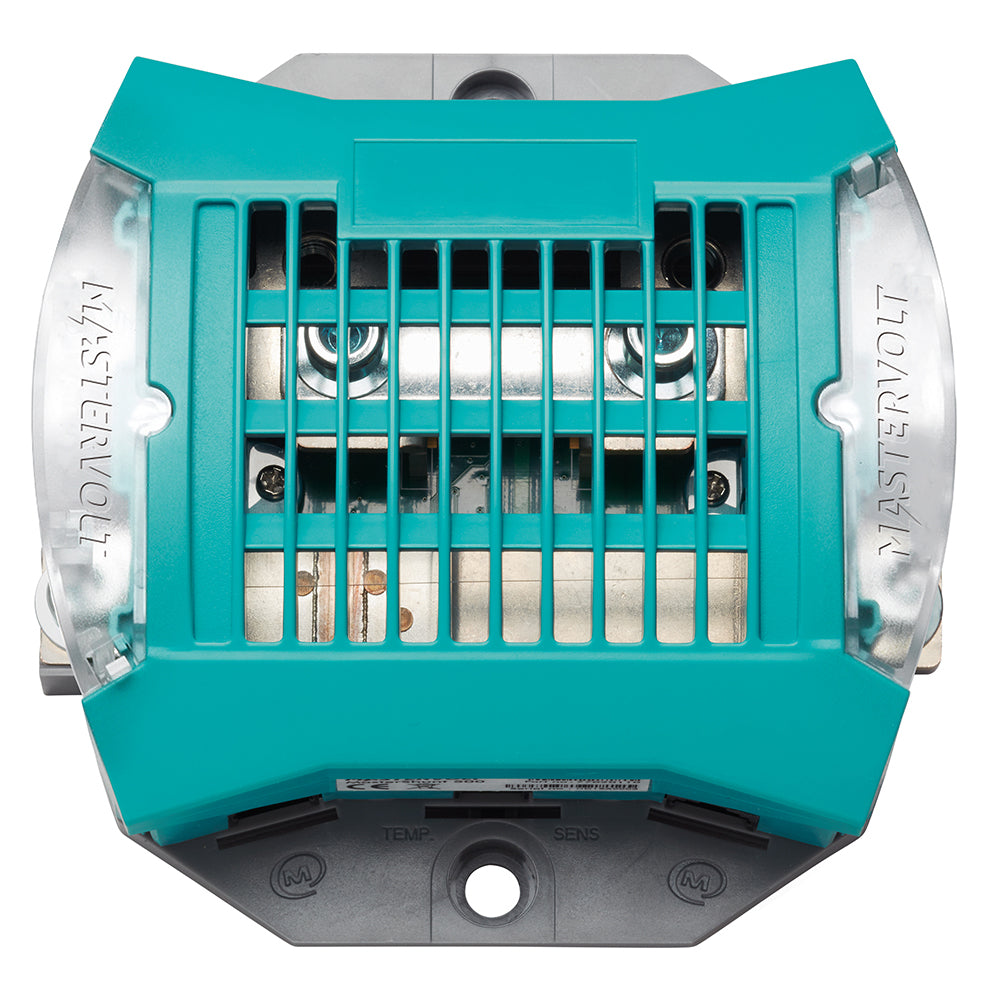

Mastervolt Mastershunt 500 Czone 77020115 - High-Quality Marine Shunt

The Mastervolt Mastershunt 500 Czone 77020115 is a high-quality marine shunt that serves as the heart of every battery-powered energy system. This integrated battery monitor enables seamless information sharing with other MasterBus, CZone, or NMEA 2000 enabled devices like battery chargers, inverter/chargers, and displays. With complete automation capabilities, the Mastershunt enhances comfort, prolongs battery life, and extends runtime.

The Mastershunt 500 provides comprehensive information for monitoring your battery bank and controlling your system. It delivers accurate data on voltage, current, state of charge, and time remaining. All the necessary information is made available through a single MasterBus or CZone cable. The precise measurement of current flow over the state of charge enables the Mastershunt to accurately determine the remaining time.

Featuring programmable events and an integrated real-time clock, the Mastershunt allows full system automation. For instance, it can automatically start your generator when the battery bank is low or generate a warning at a specific depth of discharge. The upgraded design of the Mastershunt ensures higher accuracy and control, taking into account battery-specific parameters for enhanced reading accuracy.

The Mastershunt 500 CZone offers freedom of choice in terms of fuse type, rating, and location. It comes with an internal bus bar, which can be used when an external fuse holder is selected. If the Mastershunt is installed near the battery, the bus bar can be replaced with either an ANL type or Class T main fuse, saving space and cost.

Features:

• MasterBus, CZone, and NMEA 2000 communication.
• Fits in a CZone system including setup tools and configuration file.
• Digital shunt providing the energy system with extensive information and historical data.
• Very accurate and reliable determination of State of Charge (SOC).
• Service mode prevents memory loss during system maintenance.
• Realistic and precise indication of the time remaining.
• For higher current, multiple Mastershunt models may be installed in parallel.
• MasterConnect system makes connecting to the DC Distribution product very easy.
• Straightforward and easy to install.
• Freedom of choice for fuse type, rating, and location. Suitable for T-fuse and ANL-fuse (to be ordered separately).
• Robust housing with isolation of the DC connections.

Applications:

The Mastervolt Mastershunt 500 Czone 77020115 is suitable for any marine, mobile, industrial, or infrastructure application where battery monitoring is essential for increased reliability, battery life, comfort, and runtime.

Learn More

• Battery Monitor
• Inverter/Charger
• Battery Charger
• MasterBus
• CZone
• NMEA 2000

Product: Mastervolt Mastershunt 500 Czone 77020115

Brand: Mastervolt

Model: 77020115

Shipping Weight: 3.30 lb

Shipping Height: 5.00 in

Shipping Width: 8.00 in

Shipping Length: 10.00 in
