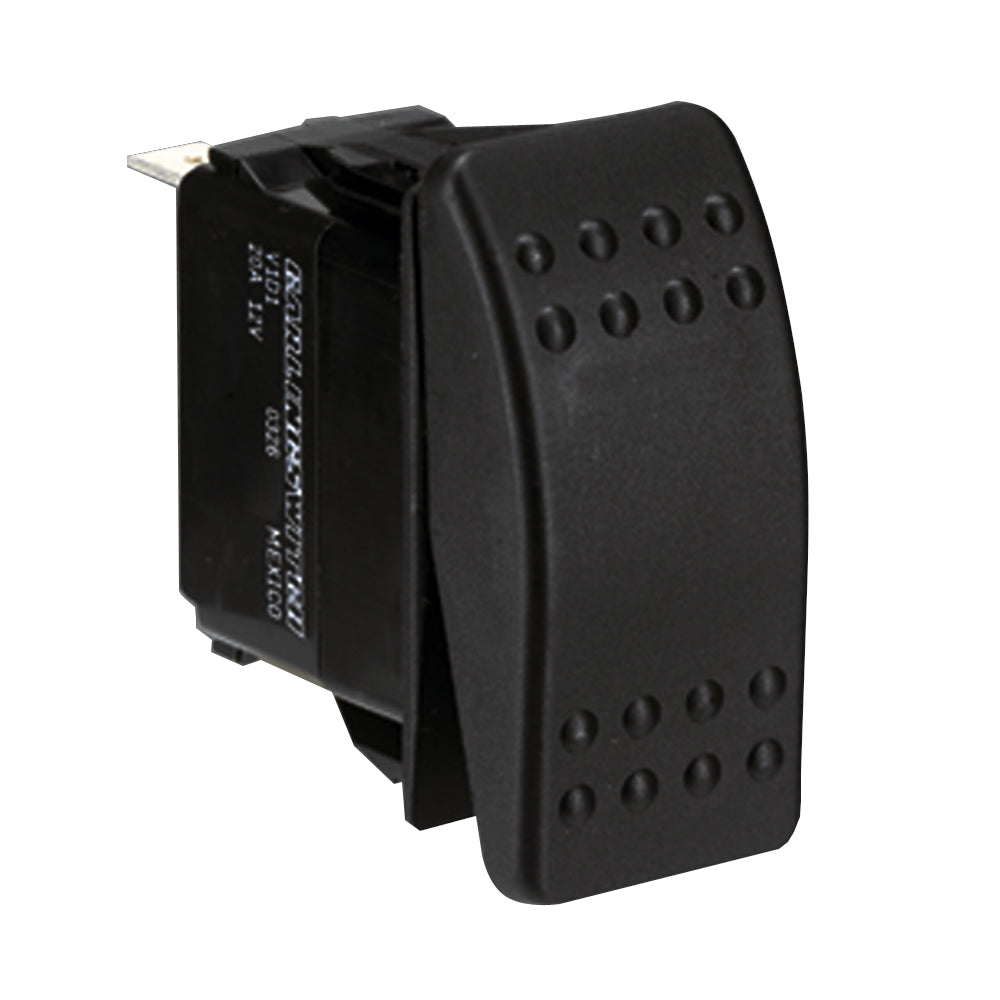

Paneltronics Waterproof DPDT Contura Rocker Switch - 001-699 Black with LEDs

The Paneltronics Waterproof DPDT Contura Rocker Switch is a high-quality switch designed for a variety of applications. It features a double pole/double throw configuration, allowing for maintaining configurations. The switch is sealed to IP68 standards according to IEC 529, ensuring superior waterproof performance. Its ignition protection construction meets the requirements of UL 1500 and ISO 8846, making it suitable for use in marine environments.

The switch is equipped with black textured actuators, providing a hard surface with bumps for easy and reliable operation. The contacts are rated at 12VDC 20A or 24VDC 15A, complying with ABYC E-11.12.1.1 standards. Additionally, it is moisture-resistant per Mil-Std 202F, Method 107F, ensuring durability even in challenging conditions.

For enhanced water resistance, optional rubber gaskets (P/N 004-176) are available to provide a watertight panel seal, meeting IP67 standards. The switch features 1/4" male tab terminals as standard, without barriers, complying with ABYC E-11-14.5.4 Exception. To ensure a neat and professional installation, a black hole plug (P/N 001-295) is included.

Product Features:

• Double Pole/Double Throw - Maintaining configurations
• Sealed IP68 rated per IEC 529
• Ignition protection construction meets requirements of UL 1500 and ISO 8846
• Black textured actuators (hard surface with bumps)
• Contacts are rated at 12VDC 20A, or 24VDC 15A (ABYC E-11.12.1.1)
• DC Moisture resistant Per Mil-Std 202F, Method 107F
• Optional rubber gaskets provide a watertight panel seal meets IP67 (P/N 004-176)
• 1/4" male tab terminals are standard without barriers (ABYC E-11-14.5.4 Exception)
• Hole plug black (P/N 001-295)

Specifications:

• Product Type: Rocker Switch
• Switch Type: DPDT (Double Pole/Double Throw)
• Configuration: Maintaining
• Color: Black
• Actuators: Textured
• Rating: 12VDC 20A, 24VDC 15A
• Waterproof Rating: IP68 (IEC 529)
• Ignition Protection: UL 1500, ISO 8846
• Moisture Resistance: Mil-Std 202F, Method 107F
• Terminals: 1/4" Male Tab
• Optional Gaskets: Rubber (P/N 004-176)
• Hole Plug: Black (P/N 001-295)

Learn More:

• Switch - Wikipedia
• Double Pole/Double Throw Switch - Wikipedia
• IP Code - Wikipedia
• Underwriters Laboratories - Wikipedia

Product: Paneltronics 001-699 Dpdt On/Of On Waterproof Contura Rocker Switch Leds Black

Brand: Paneltronics

Model: 001-699

Shipping Weight: 0.20 lb

Shipping Height: 1.00 in

Shipping Width: 1.00 in

Shipping Length: 1.00 in
