Raymarine EV-100 Wheel Autopilot T70152 - Evolution Series

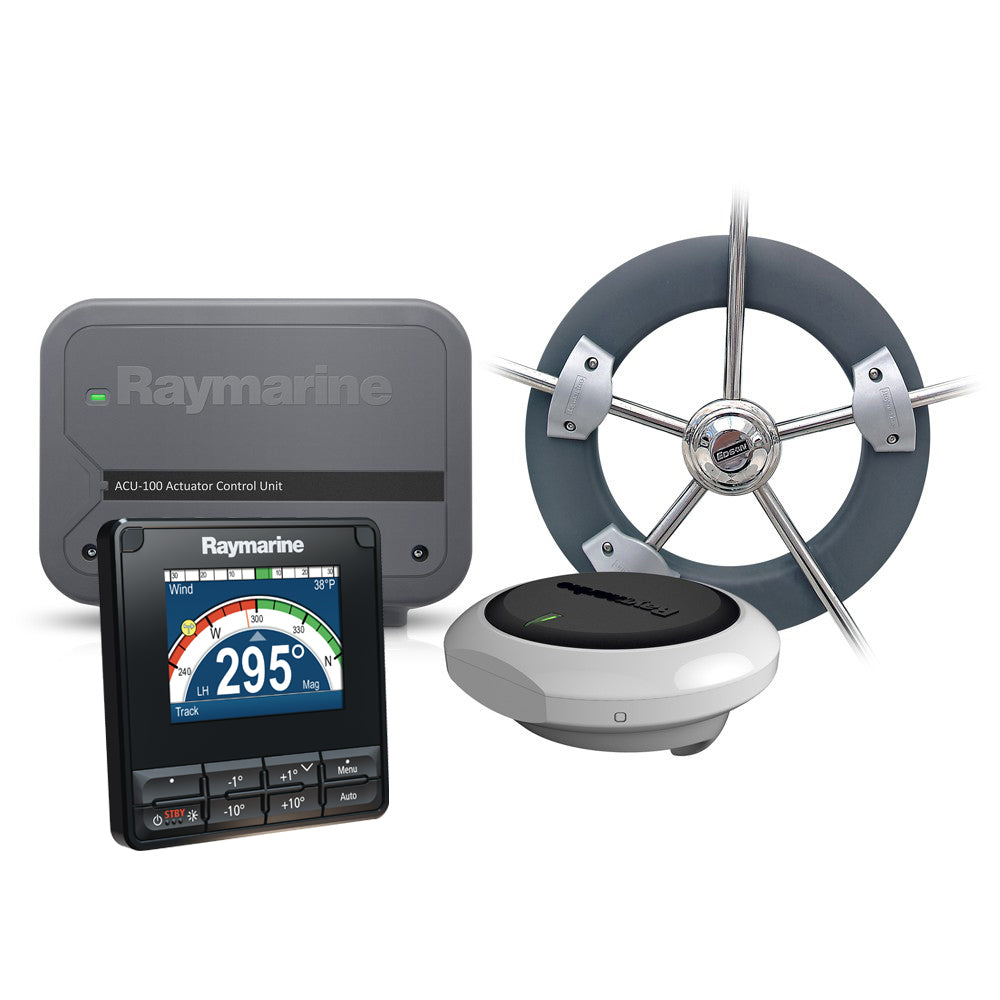

The Raymarine EV-100 Wheel Autopilot T70152 - Evolution Series is a complete autopilot package that consists of the E22166 P70 control, E70096 EV-1 Sensor Core, E70098 ACU-100, E12093 Wheel Drive 7,500kg (16,000lbs), and R70160 Evolution Cabling Kit. The package is designed to provide reliable and accurate steering control for your vessel.

The NEW Raymarine p70 and p70R Autopilot Control Heads

The Raymarine p70 and p70R Autopilot Control Heads are available in two control styles. The p70 control head is a push-button operation controller designed primarily for sailboats, while the p70R control head, with its combination of push-buttons and rotary control dial, is aimed at powered craft. The autopilots come with a new LightHouse user interface that is simple and quick to use.

Key features:

• New LightHouse user interface is simple and quick to use.
• 160 viewing angles
• Start up wizard helps you configure the pilot quickly and easily
• Anti-reflective coating for improved visibility in bright sunlight
• Button or rotary control options for sail and power applications
• Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Display the pilot information in different formats
• Simple system and group dimming/illumination
• Support for multiple data sources
• SeaTalkng/ NMEA 2000 and SeaTalk1 connectivity (no bridging required)

Superior Viewing

Advanced LED backlighting offers low power consumption and delivers vibrant color and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.

Specifications:

• Model: Raymarine p70
• Autopilot controller (button)
• Part Number: E22166
• Nominal voltage: 12v DC
• Voltage range: 9 to 16v DC
• Screen size: 3.5" TFT LCD 320 x 240 pixels
• Colours: 16 bit colour (64K colours)
• LCD Brightness: 700cd/m2
• Power consumption: 69mA no lighting; 134ma 100% illumination
• Connections: SeaTalkng (x2) (NMEA2000 and SeaTalk compatible)
• Operating temperature: -025 C to 55 C (-13 F to 131 F)
• Storage temperature: -030 C to 70 C (-22 F to 158 F)
• Relative humidity: 93% max
• Waterproofing: IPX6
• Conformance: Europe 2004/108/EC, Australia and New Zealand C-Tick compliance level 2

Product: Raymarine T70152 Ev-100 Wheel Evolution Autopilot

Brand: RAYMARINE

Model: T70152

Shipping Weight: 15.00 lb

Shipping Height: 15.00 in

Shipping Width: 16.00 in

Shipping Length: 27.00 in
