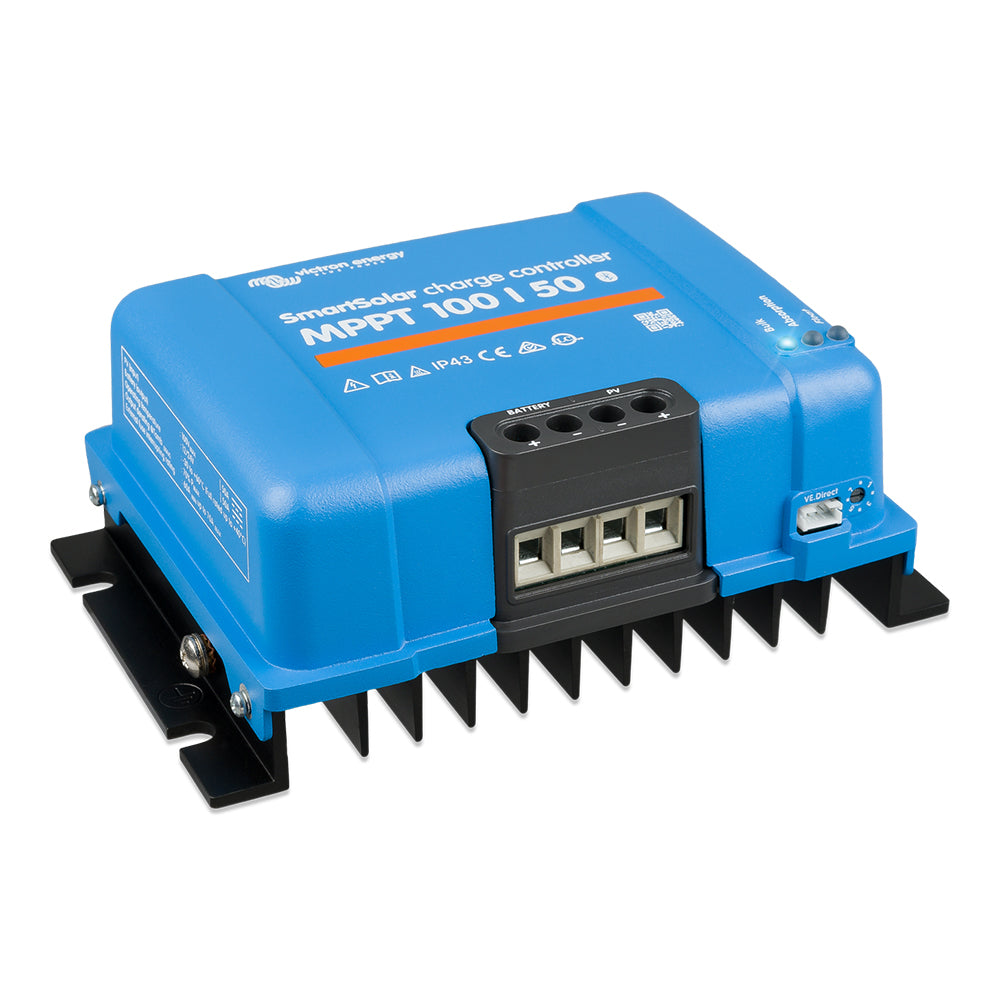

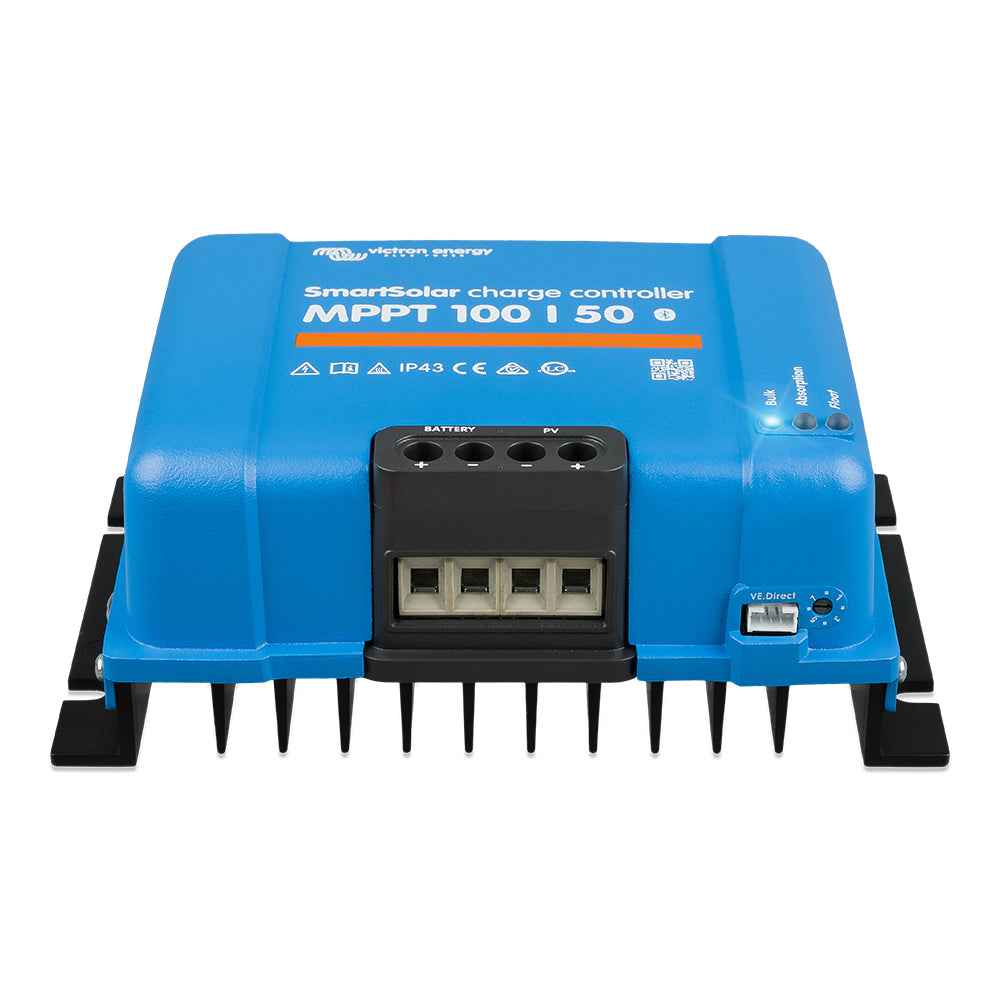

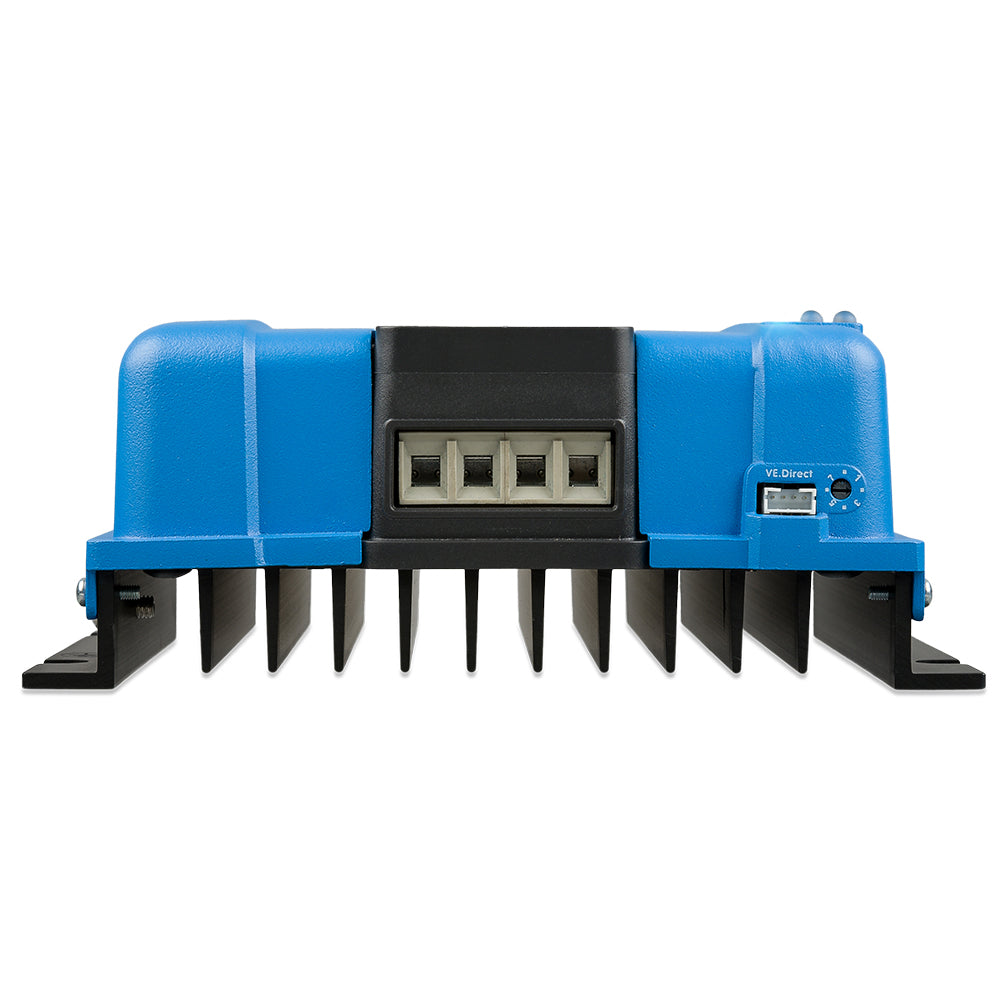

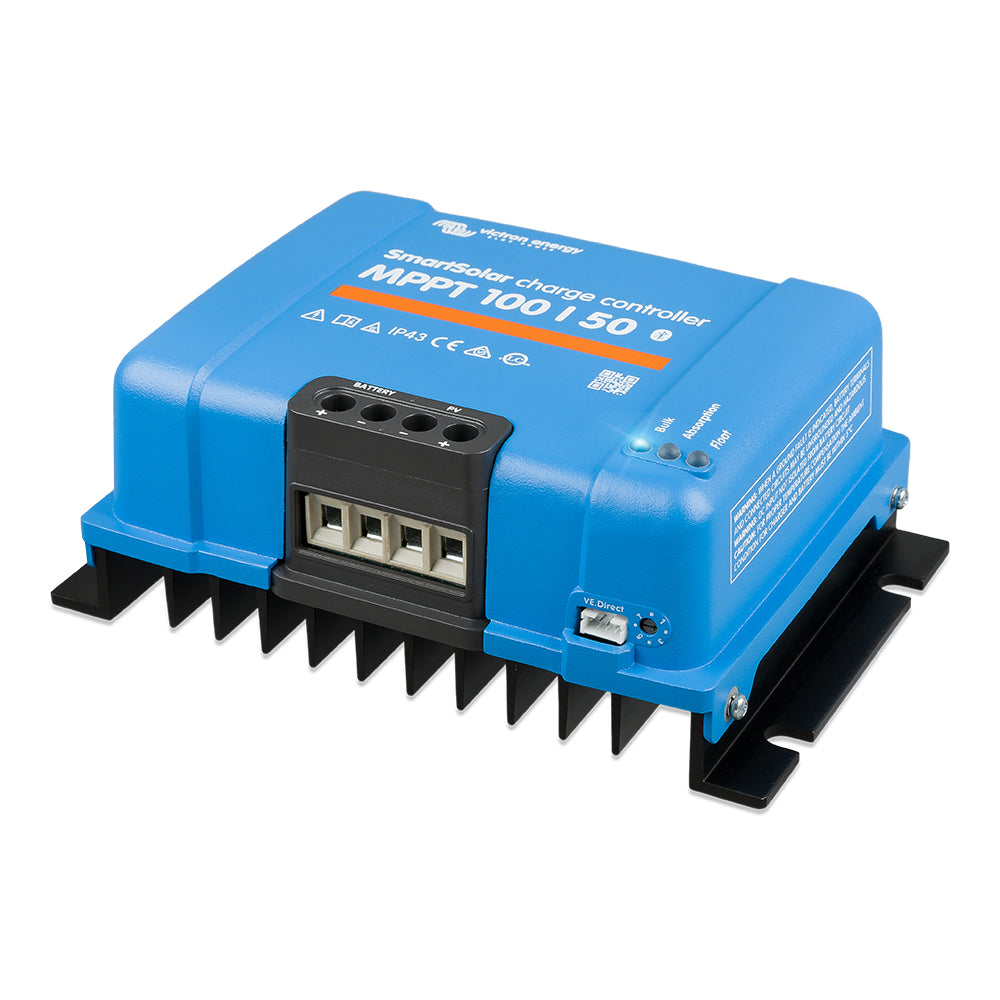

Victron Energy Smartsolar MPPT Charge Controller 100V 50A - SCC110050210

The Victron Energy Smartsolar MPPT Charge Controller is a high-performance solar charge controller designed to optimize the energy harvest from your solar panels. With its advanced features and intelligent battery management, this charge controller ensures efficient charging and prolongs the life of your battery.

Features:

• Bluetooth Smart built-in: The wireless solution to set-up, monitor, update, and synchronize SmartSolar Charge Controllers.
• VE.Direct: For a wired data connection to a Color Control GX, other GX products, PC, or other devices.
• Ultra-fast Maximum Power Point Tracking (MPPT): Improves energy harvest by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers, especially in case of a clouded sky or changing light intensity.
• Load output: Prevents over-discharge of the battery by disconnecting the load when the battery reaches a pre-set voltage. Short circuit proof.
• Battery Life: Intelligent battery management algorithm that monitors the state of charge and adjusts load disconnect levels to achieve nearly 100% recharge, prolonging battery life.
• Programmable battery charge algorithm: Customize the charging algorithm according to your battery type and requirements.
• Day/night timing and light dimming option: Allows for timing control and light dimming functionality.
• Internal temperature sensor: Compensates absorption and float charge voltage based on temperature.
• Optional external battery voltage and temperature sensing via Bluetooth: Communicate battery voltage and temperature to the charge controller using Smart Battery Sense or BMV-712 Smart Battery Monitor.

Specifications:

• Maximum PV power: 700W (12V), 1400W (24V), 2800W (48V)
• Maximum PV open circuit voltage: 100V
• Nominal battery voltage: 12V, 24V, 48V
• Maximum charge current: 50A

Learn More:

• Solar Charge Controller on Wikipedia
• Maximum Power Point Tracking on Wikipedia
• Lead-Acid Battery on Wikipedia

Product: Victron Energy Scc110050210 Smartsolar Mppt Charge Controller 100V 50Amp

Brand: Victron Energy

Model: SCC110050210

Shipping Weight: 3.95 lb

Shipping Height: 4.00 in

Shipping Width: 6.00 in

Shipping Length: 8.00 in
